With their reinforced folded eyes, these flat webbing slings are ideal for hook fastening. We manufacture them up to 20 T according to EN 1492-1+A1 standard.
ÉLINGUE MULTIBRINS MIXTES CHAÎNE ET TEXTILE - ECHT
Catégorie : Flat webbing slings

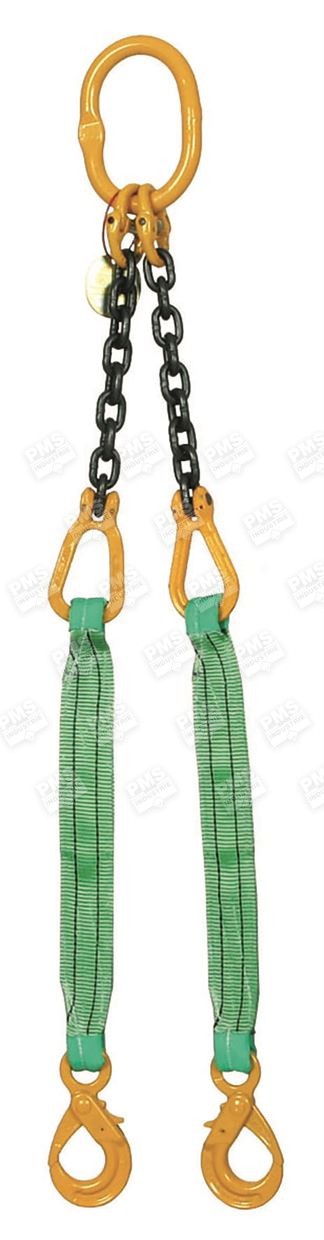

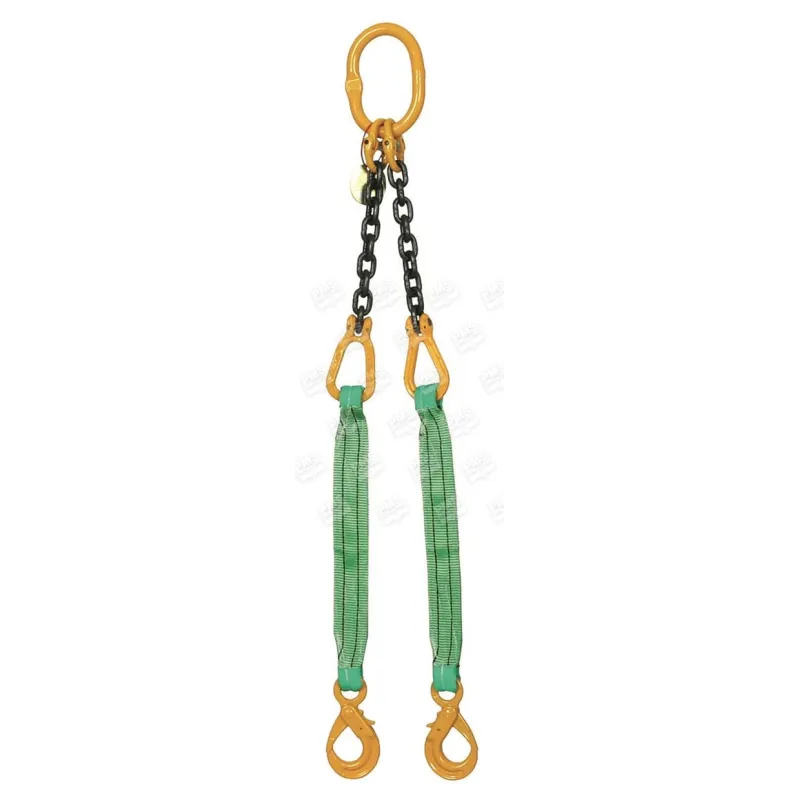

Les élingues multibrins mixtes sont composées de chaîne dans la partie supérieure, et de sangle plate avec une fibre 100% Polyester dans la partie inférieure. Les extrémités sont équipées au choix de crochets à verrouillage automatique ou à linguet. Nous pouvons fabriquer ces élingues sur mesure au centimètre près, et ce, en parfaite conformité avec les normes EN 1492-1+A1 et EN 818-4+A1.
Description
Features
Download
Description
About this product
Pour une polyvalence maximale nous pouvons ajouter des griffes de raccourcissement afin de raccourcir la longueur des brins (en option). Standard : élingue plate. Possibilité d’utiliser des élingues rondes, nous consulter. Attention, le calcul de la CMU de l'élingue sera différent selon le nombre de brins et l’angle de levage.
Features
Features
| Product code | ECHT |
| Material | Sangle 100% polyester multi filaments haute ténacité |
| Standard | EN 1492-1+A1 et EN 818-4+A1 |
| Ends / Terminations | Hook with latch or self locking hook |
| Usage factor | 1:4 |
| Minimum strand diameter (mm) | 6 |
| Maximum working length (m) | 100 |
| Operating temperature | From - 40°C up to + 100°C |
| Important information | Informations importantes |
| Référence Produits cross selling | ETCH,EMB,BMB,ECH200 |
| Minimum webbing width (mm) | 30 |
| Maximum webbing width (mm) | 90 |
| Configuration | Elingue multibrins mixte : partie supérieure en chaîne, inférieure en sangle plate |
| Référence Configuration produits similaires | ETCH |
| Number of legs | 1 to 4 |
| CMU facteur M = 1 (kg) | De 1000 à 3000 |
| Grade | 80 |
| Maximum strand diameter (mm) | 10 |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
