HIGH CAPACITY FLAT WEBBING SLING OXYCUT MALE RINGS - C 6 TYPE
Catégorie : Flat webbing slings
These high-capacity flat webbing slings (up to 20 T) are manufactured according to EN 1492-1+A1 standard, with two male oxycut rings at each end.
Description
Features
Download
Description
About this product

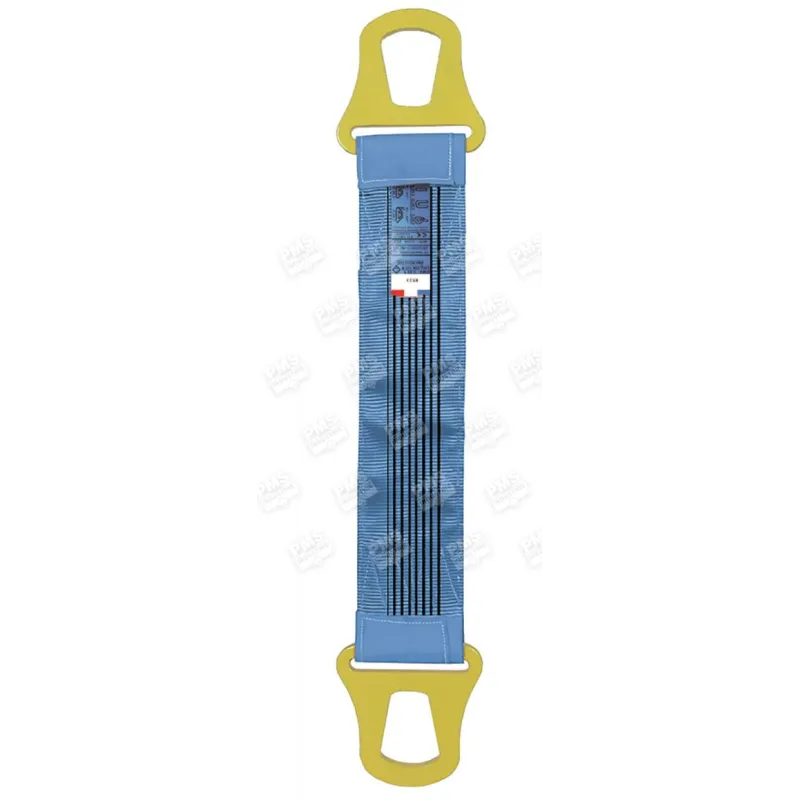

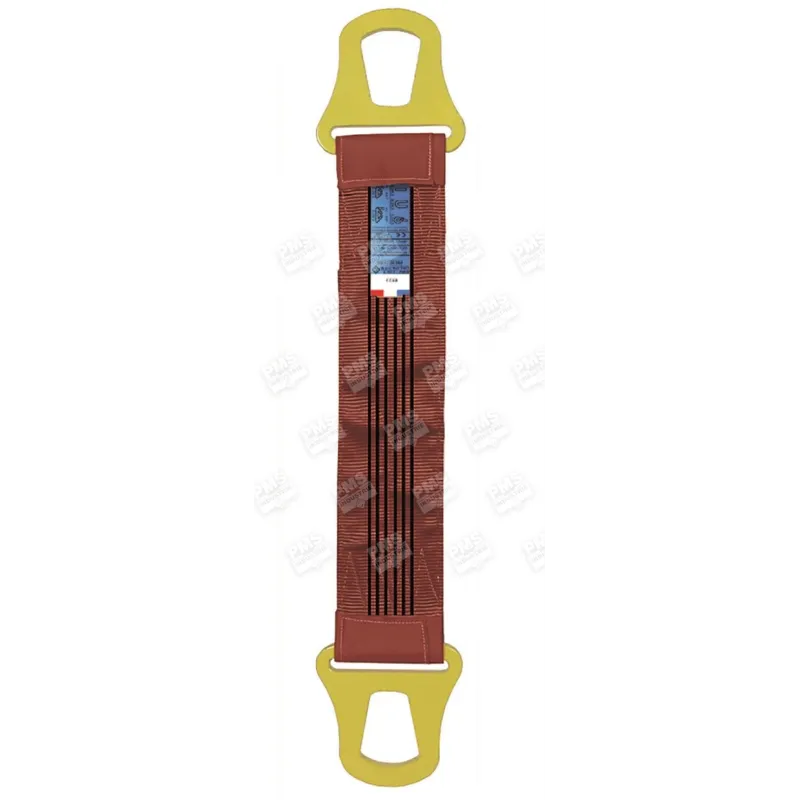

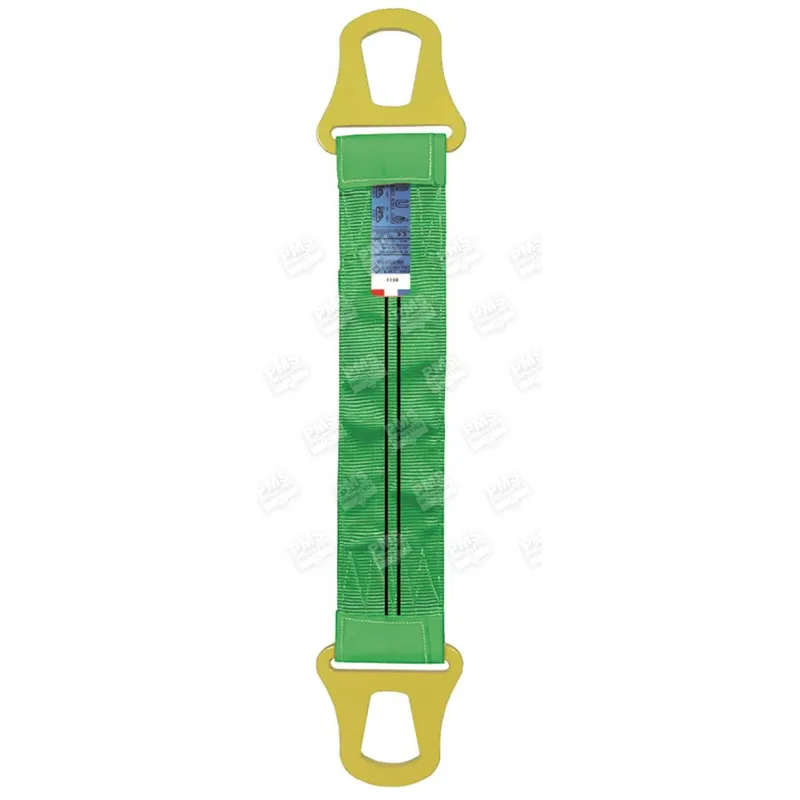

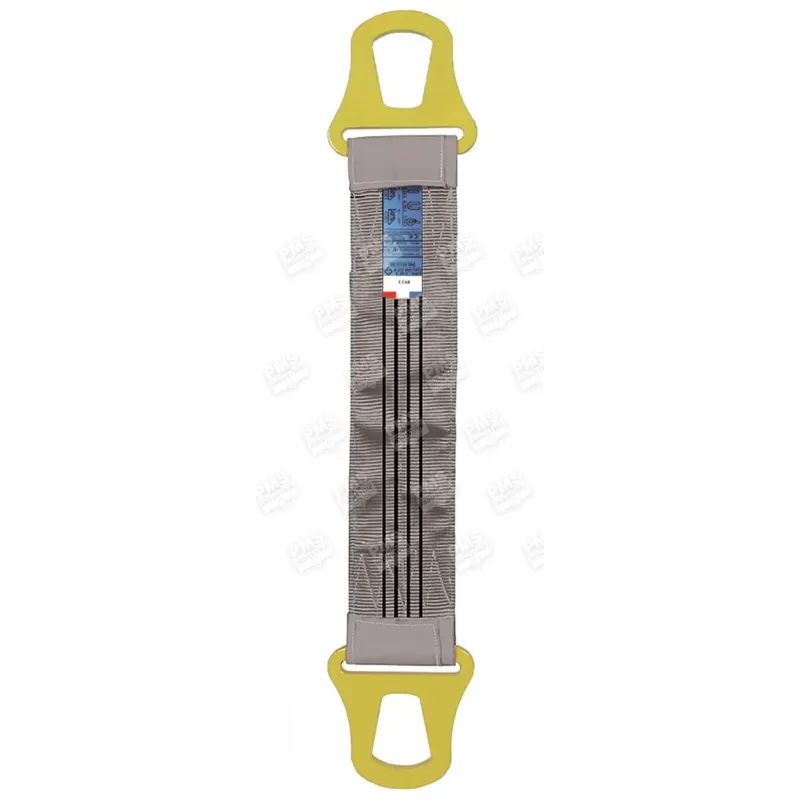

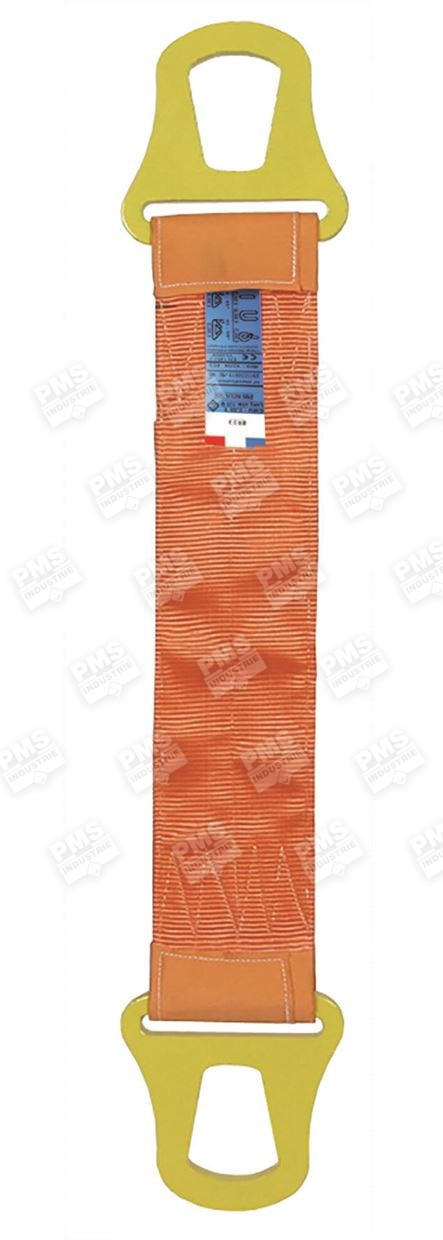

C-type flat webbing sling (4 plies) with two oxycut male rings (category 6). Be careful, according to standard EN 1492-1+A1, make sure to always protect your slings if used in a lifting configuration with sharp angles. A wide range of protections is available: polyurethane, PVC or leather sleeve, polyurethane protection keeper, etc. Contact us to know the other optional materials available for ends reinforcement. For smaller lifting capacities, use B-type slings (double ply).Features
Features
| Product code | SPC6 |
| Material | 100% high tenacity multifilament polyester |
| Standard | EN 1492-1+A1 |
| CMU mini (T) | 2 |
| CMU maxi (T) | 20 |
| Coefficient d'utilisation | 4:1 for the whole set (the webbing keeps a safety factor of 7:1) |
| Longueur utile maxi (m) | 50 |
| Température d'utilisation | From - 40°C up to + 100°C |
| Couleur | According to WLL: 6 T brown, 8 T blue, 10 T and more orange… |
| Informations importantes | Informations importantes |
| Référence Produits cross selling | ED12,PP12,SPB6,SPC2,SPC4 |
| Longueur utile mini (m) | 3 |
| Largeur de sangle mini (mm) | 30 |
| Largeur de sangle maxi (mm) | 300 |
| Epaisseur (mm) | 12 to 15 |
| Configuration | C-type: 4 plies |
| Catégorie | 2 oxycut male rings (cat. 6) |
| Poids 3 m (kg) | From 2,20 up to 65,50 kg |
| Poids m/l (kg) | From 0,40 up to 4,50 |
| Référence Configuration produits similaires | SPB6 |
Download
Range benefits
Traceability guaranteed via the traceability label.
100% high-tenacity multifilament polyester (webbing + sewing thread).
High resistance to friction, abrasion, UV rays, and chemicals.
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
