With their reinforced folded eyes, these flat webbing slings are ideal for hook fastening. We manufacture them up to 20 T according to EN 1492-1+A1 standard.

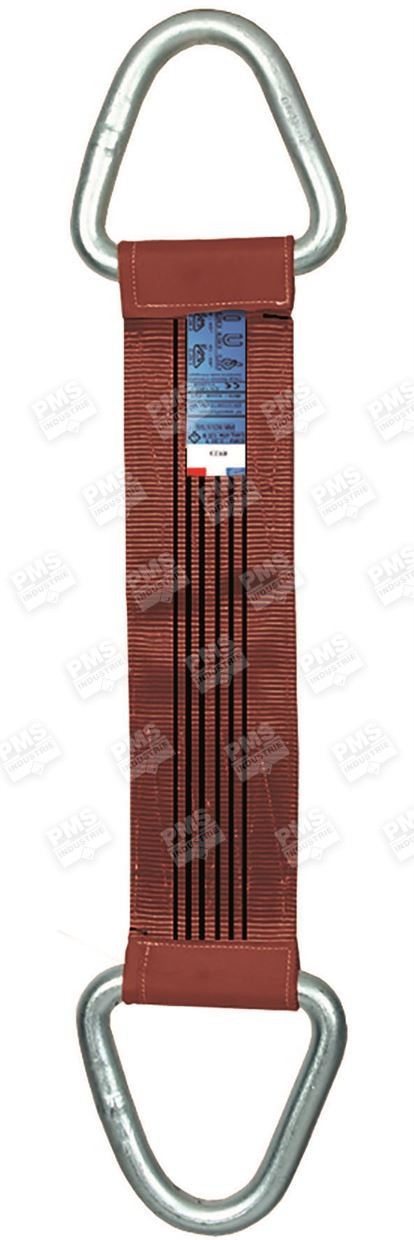

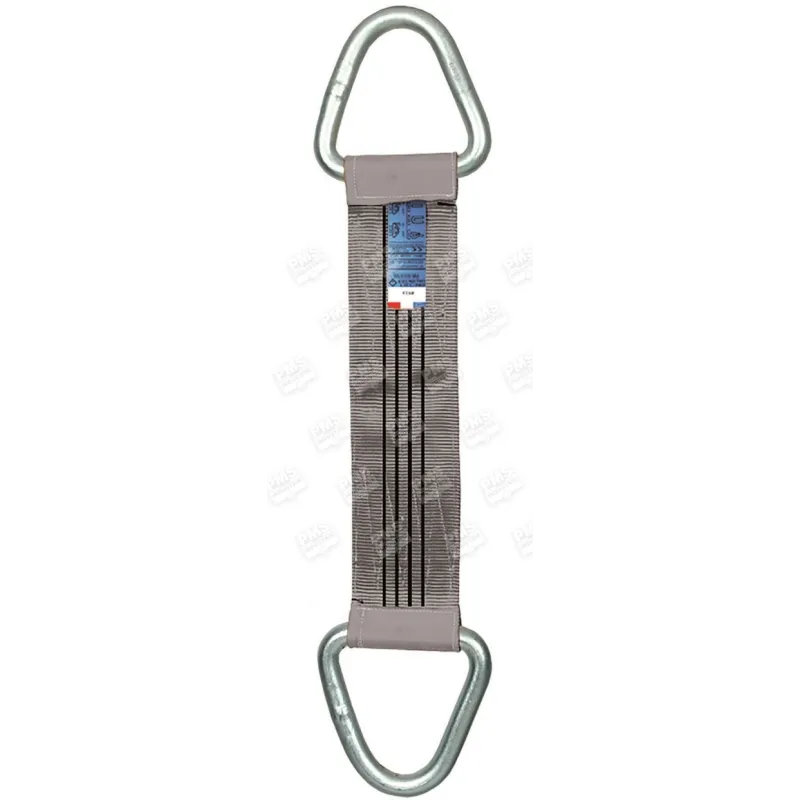

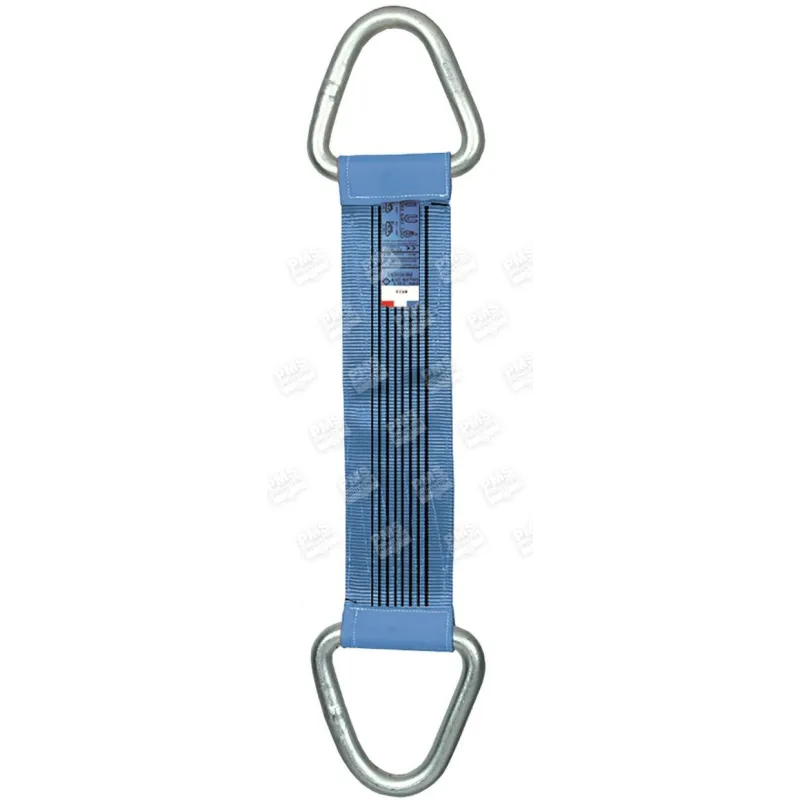

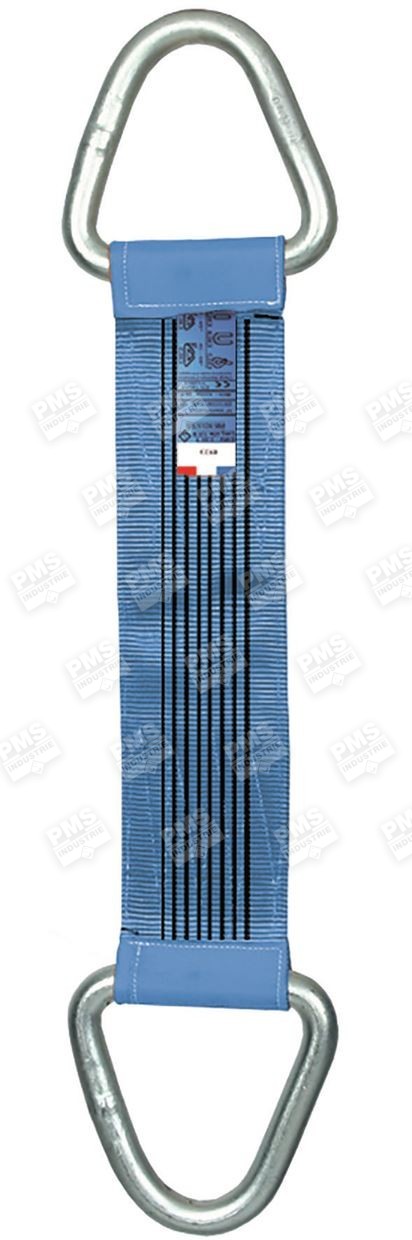

HIGH CAPACITY FLAT WEBBING SLING ROUND WIRE MALE RINGS - C 4 TYPE
Catégorie : Flat webbing slings
These high-capacity flat webbing slings (up to 40 T) are manufactured according to EN 1492-1+A1 standard, with two male round wire rings at each end. They are ideal for heavy lifting operations.
Description
Features
Download
Description
About this product
C-type flat webbing sling (4 plies) with two male round wire rings (category 4). Be careful, according to standard EN 1492-1+A1, make sure to always protect your slings if used in a lifting configuration with sharp angles. A wide range of protections is available: polyurethane, PVC or leather sleeve, polyurethane protection keeper, etc. Contact us to know the other optional materials available for ends reinforcement. For smaller lifting capacities, use B-type slings (double ply).
Features
Features
| Product code | SPC4 |
| Material | 100% high tenacity multifilament polyester |
| Standard | EN 1492-1+A1 |
| CMU mini (T) | 2 |
| CMU maxi (T) | 40 |
| Usage factor | 4:1 for the whole set (the webbing keeps a safety factor of 7:1) |
| Maximum working length (m) | 50 |
| Operating temperature | From - 40°C up to + 100°C |
| Colour | According to WLL: 6 T brown, 8 T blue, 10 T and more orange… |
| Important information | Informations importantes |
| Référence Produits cross selling | ED12,PP12,SPB4,SPC2,SPC6 |
| Minimum working length (m) | 3 |
| Minimum webbing width (mm) | 30 |
| Maximum webbing width (mm) | 580 |
| Thickness (mm) | 12 to 15 |
| Configuration | C-type: 4 plies |
| Category | 2 round wire male rings (cat. 4) |
| Weight at 3 m (kg) | From 2 up to 48 kg |
| Weight per linear metre (kg) | From 0,40 up to 4,50 |
| Référence Configuration produits similaires | SPB4 |
Download
Range benefits
100% high-tenacity multifilament polyester (webbing + sewing thread).
Galvanized rings for long-lasting durability.
Guaranteed traceability via the traceability label.
High resistance to friction, abrasion, UV rays, and chemicals.
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
