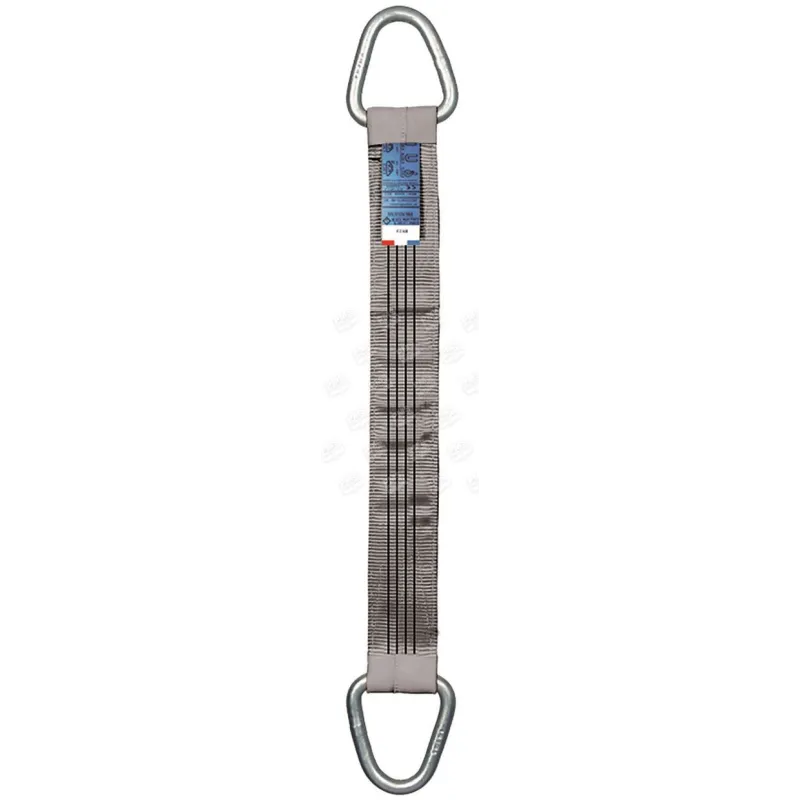

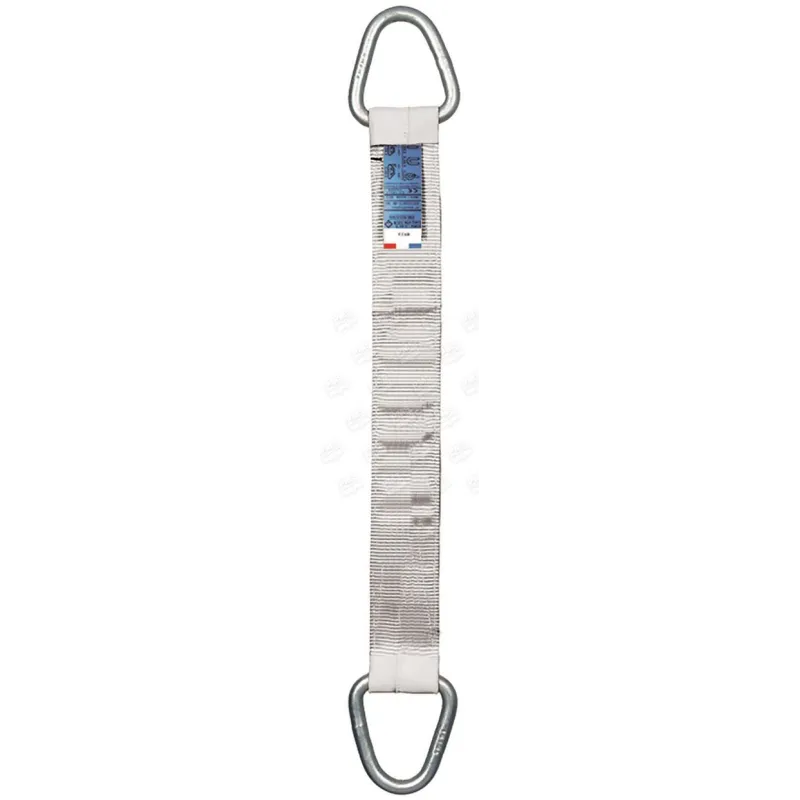

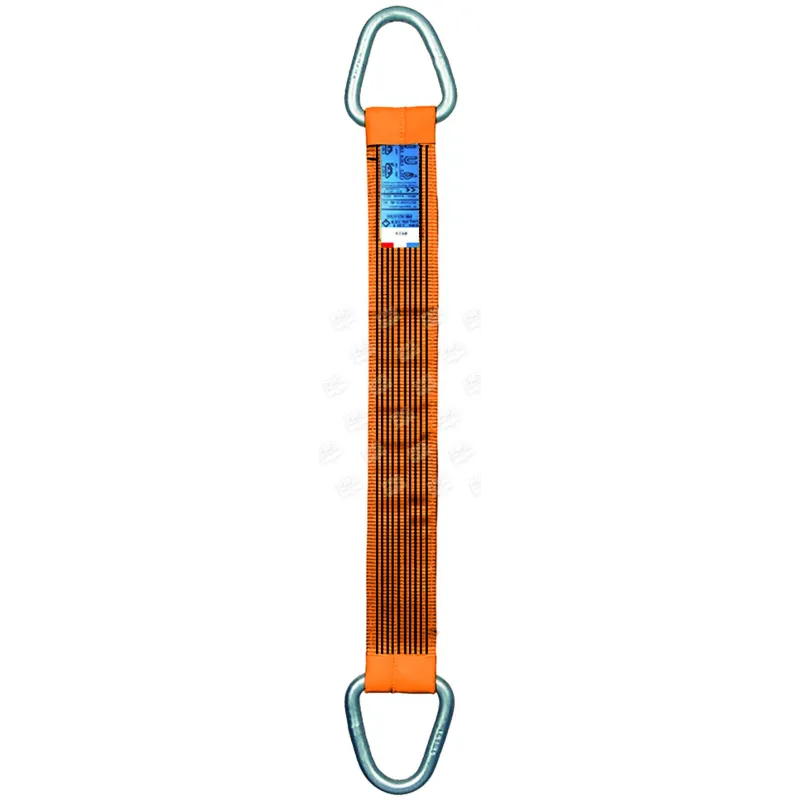

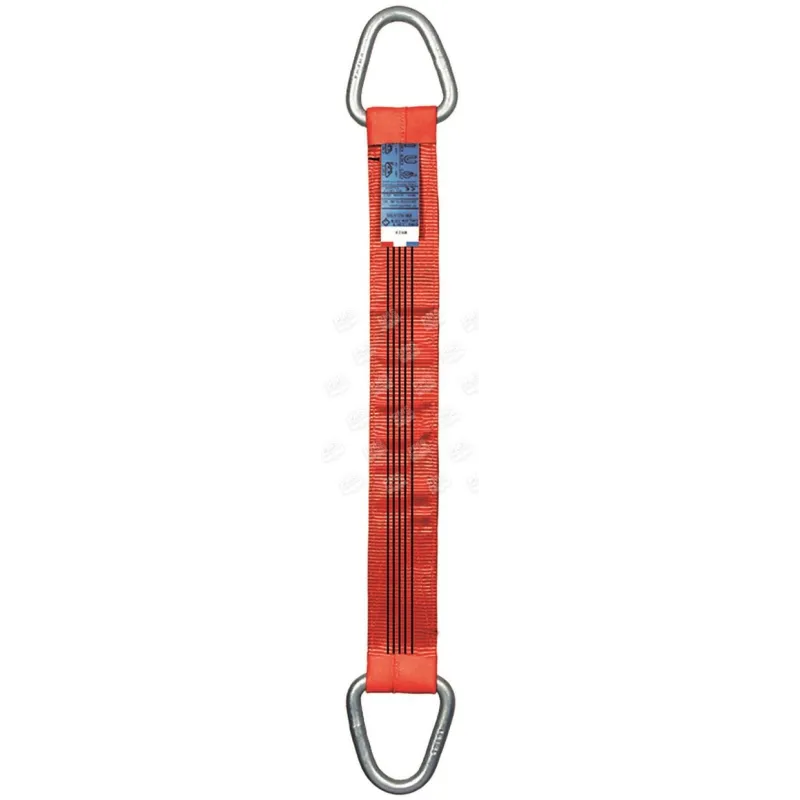

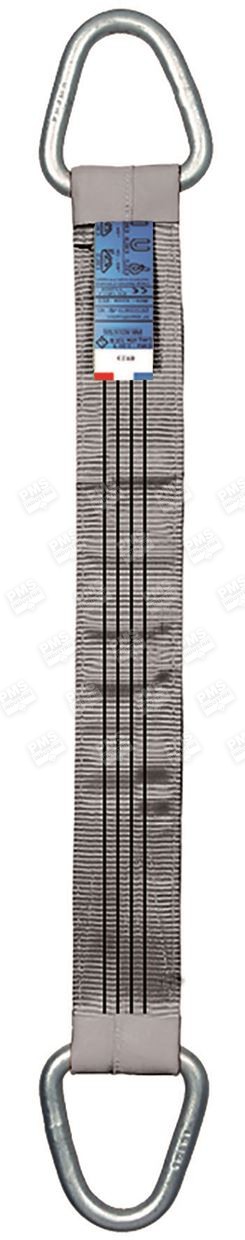

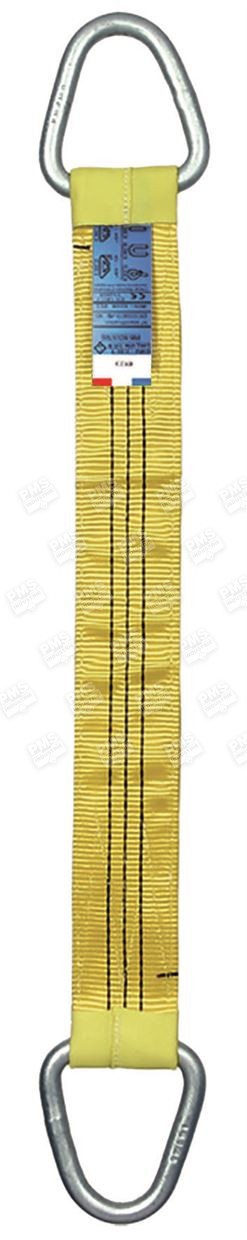

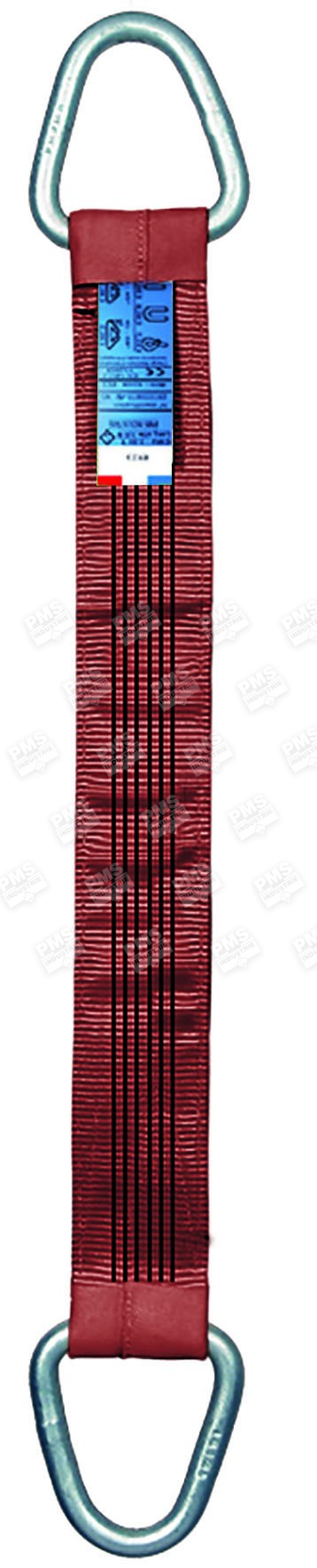

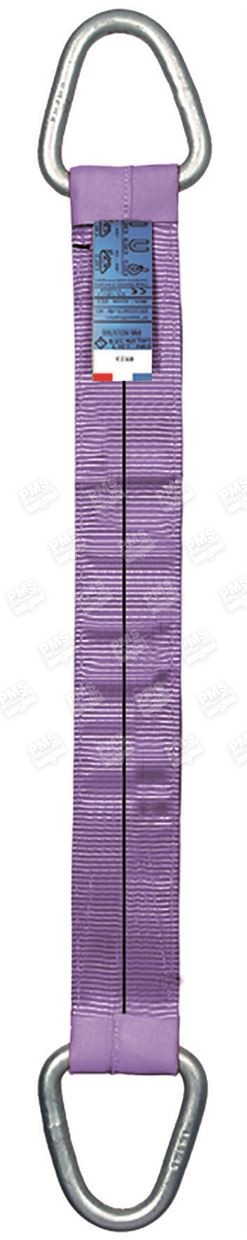

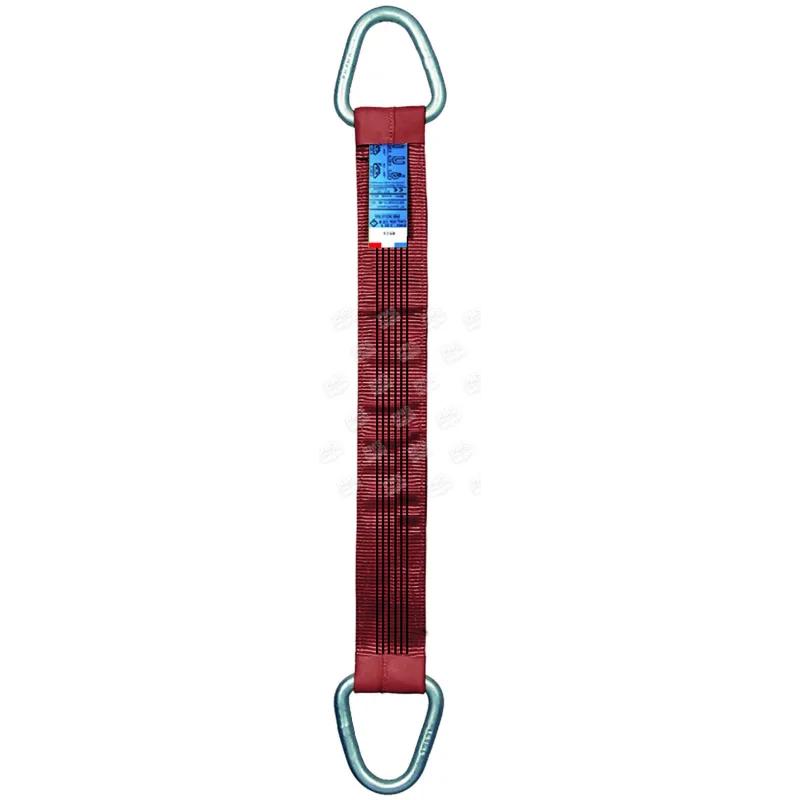

FLAT WEBBING SLING ROUND WIRE MALE RINGS - B 4 TYPE
Catégorie : Flat webbing slings
These category 4 flat webbing slings are widely used in the fields of construction, public works, building. They have two male round wire rings at each end. We manufacture them up to 20 T according to EN 1492-1+A1 standard.
Description
Features
Download
Description
About this product
Polyester provides high resistance to friction, abrasion, UV and chemical products. B-type flat webbing sling (double ply) with two male round wire rings (category 4). Be careful, according to standard EN 1492-1+A1, make sure to always protect your slings if used in a lifting configuration with sharp angles. A wide range of protections is available: polyurethane, PVC or leather sleeve, polyurethane protection keeper, etc. Contact us to know the other optional materials available for ends reinforcement. For smaller lifting capacities, use B-type slings (double ply). For lifting capacities higher than 20 tons, use C-type slings (4 plies).Features
Features
| Product code | SPB4 |
| Material | 100% high tenacity multifilament polyester |
| Standard | EN 1492-1+A1 |
| CMU mini (T) | 0,5 |
| CMU maxi (T) | 20 |
| Usage factor | 4:1 for the whole set (the webbing keeps a safety factor of 7:1) |
| Maximum working length (m) | 100 |
| Operating temperature | From - 40°C up to + 100°C |
| Colour | According to WLL: 1 T purple, 2 T green, 3 T yellow, 10 T and more orange |
| Important information | Informations importantes |
| Référence Produits cross selling | PP12,FP1234,PVC,SPC2,SPC4,SPB2,SPB1,SPB5,SPB6,SPB7 |
| Minimum working length (m) | 0,8 |
| Minimum webbing width (mm) | 30 |
| Maximum webbing width (mm) | 300 |
| Thickness (mm) | 6 to 8 |
| Configuration | B-type: 2 plies |
| Category | 2 round wire male rings (cat. 4) |
| Référence Configuration produits similaires | SPC4 |
| Weight of first metre (g) | From 650 up to 17500 |
| Weight per linear metre (g) | From 200 up to 2250 |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
