MULTI LEGS FLAT WEBBING SLINGS - BMB
Catégorie : Flat webbing slings

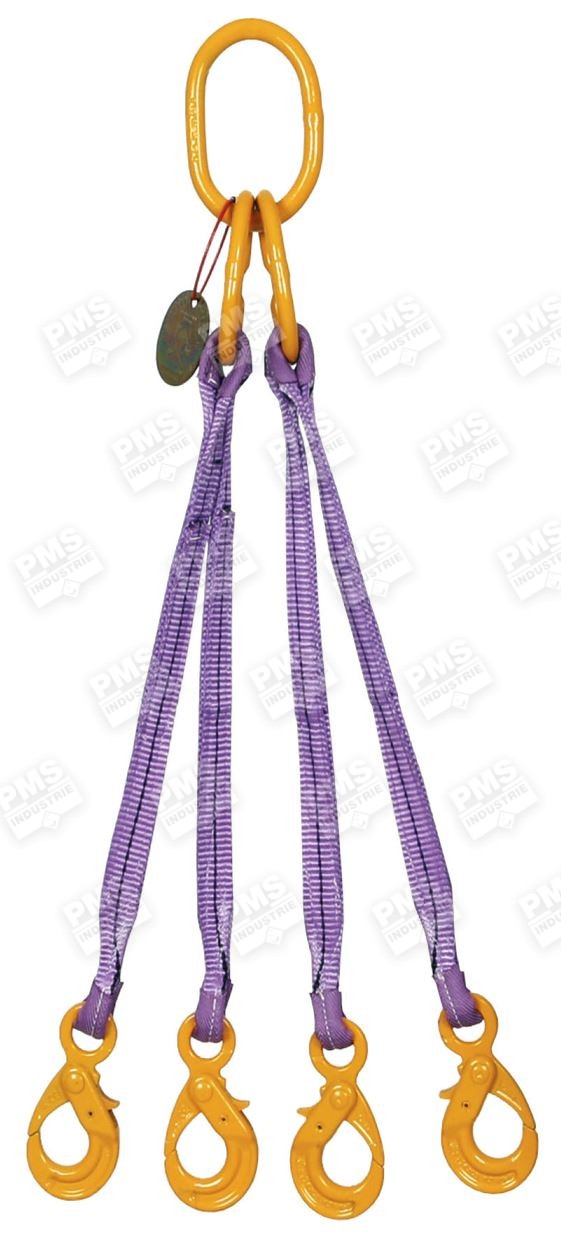

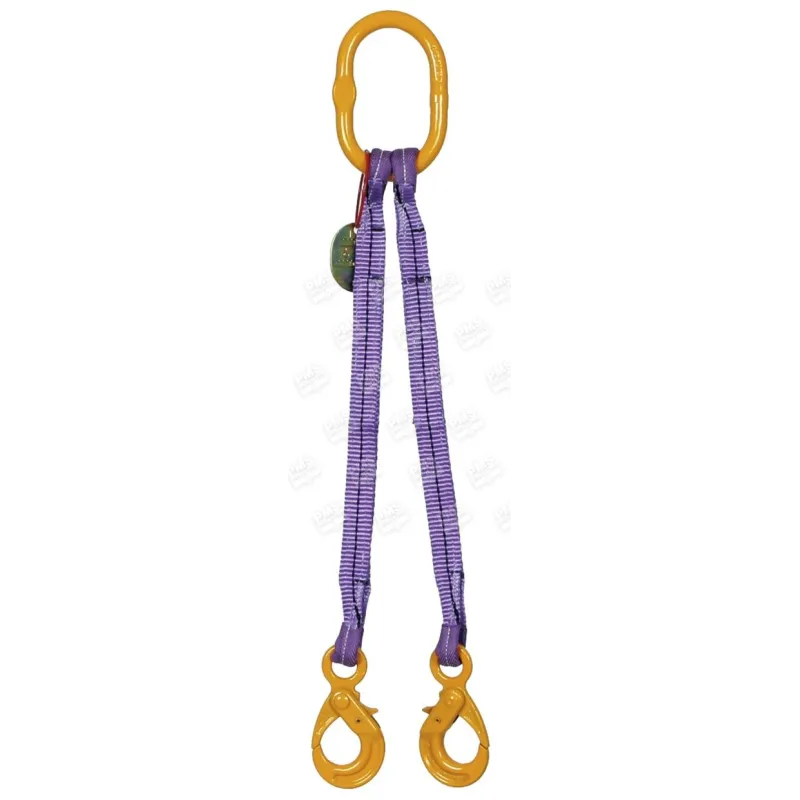

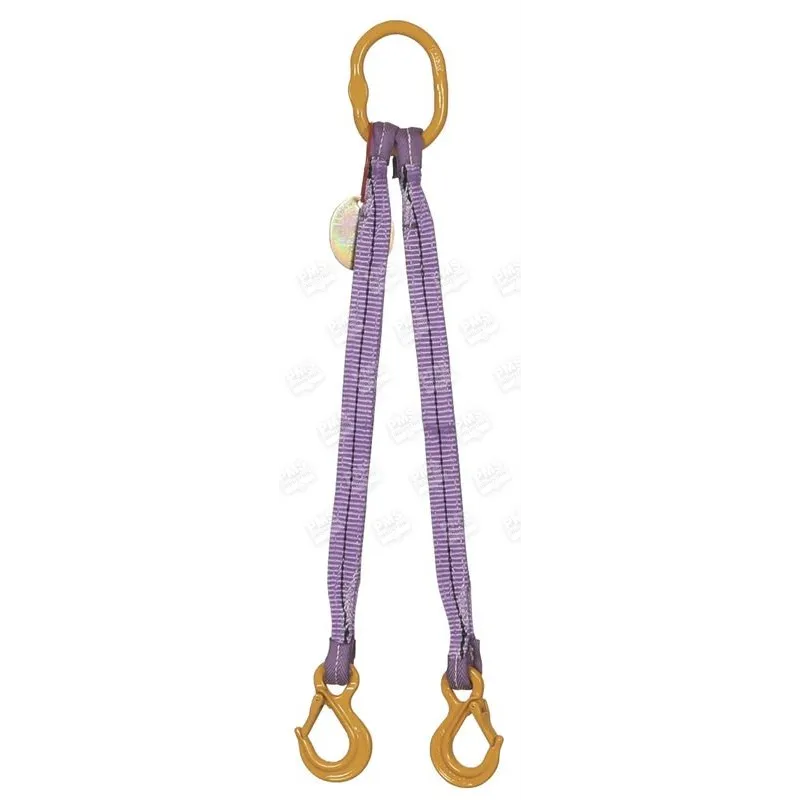

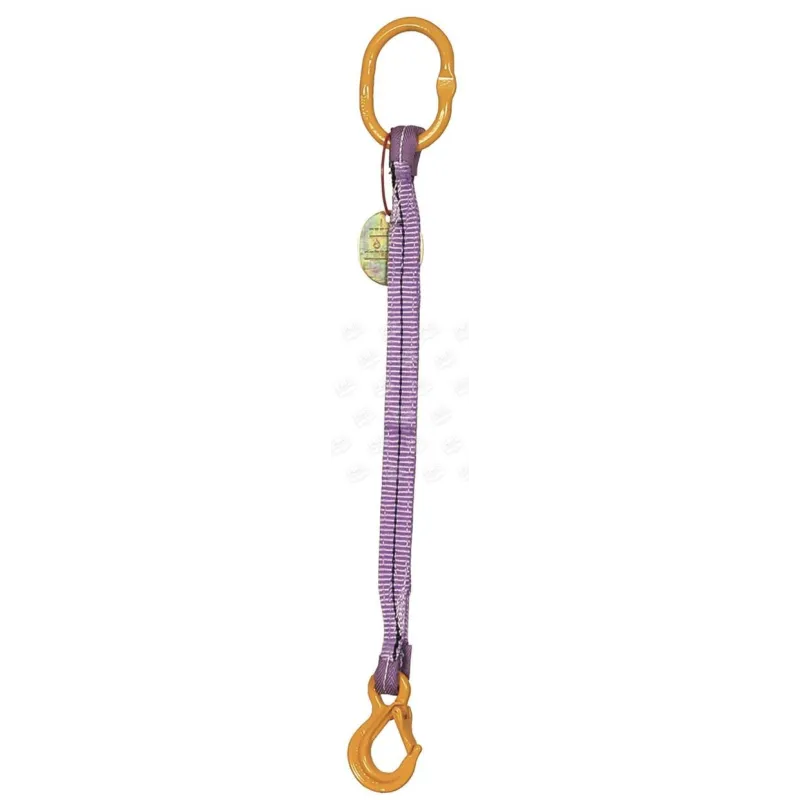

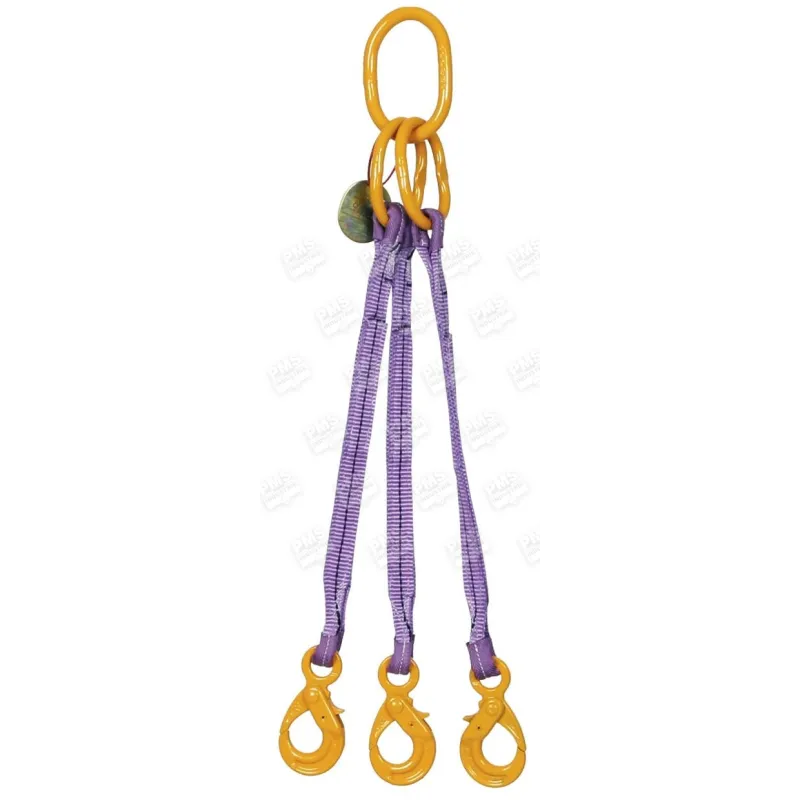

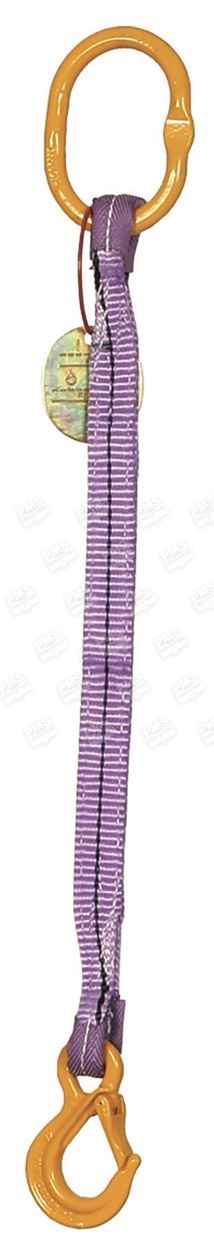

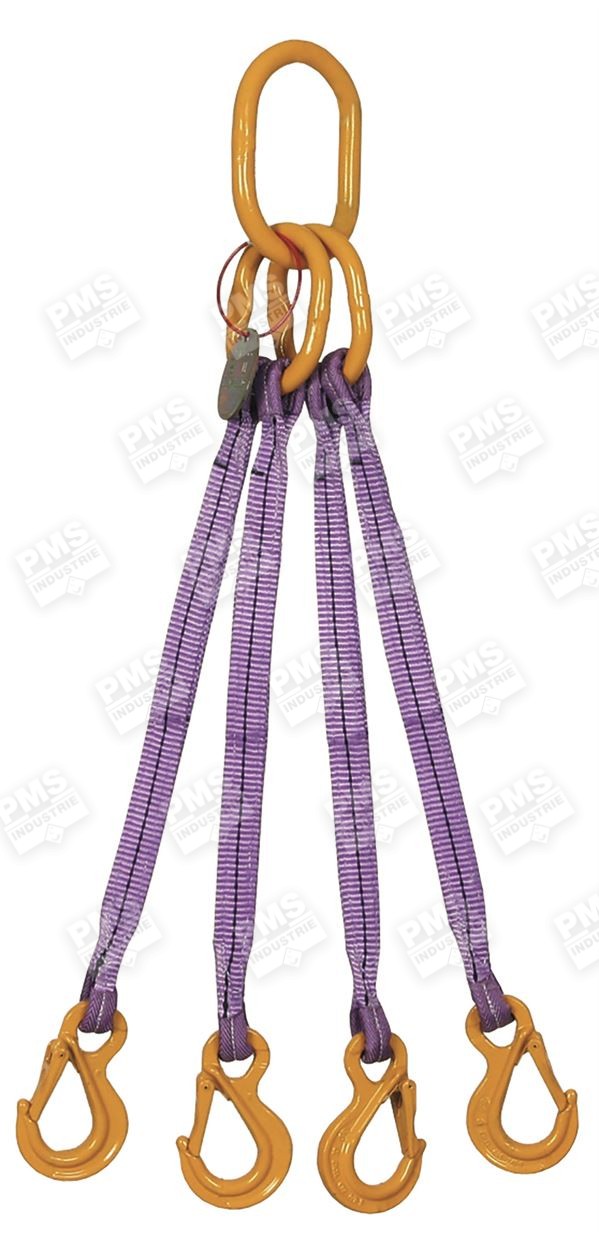

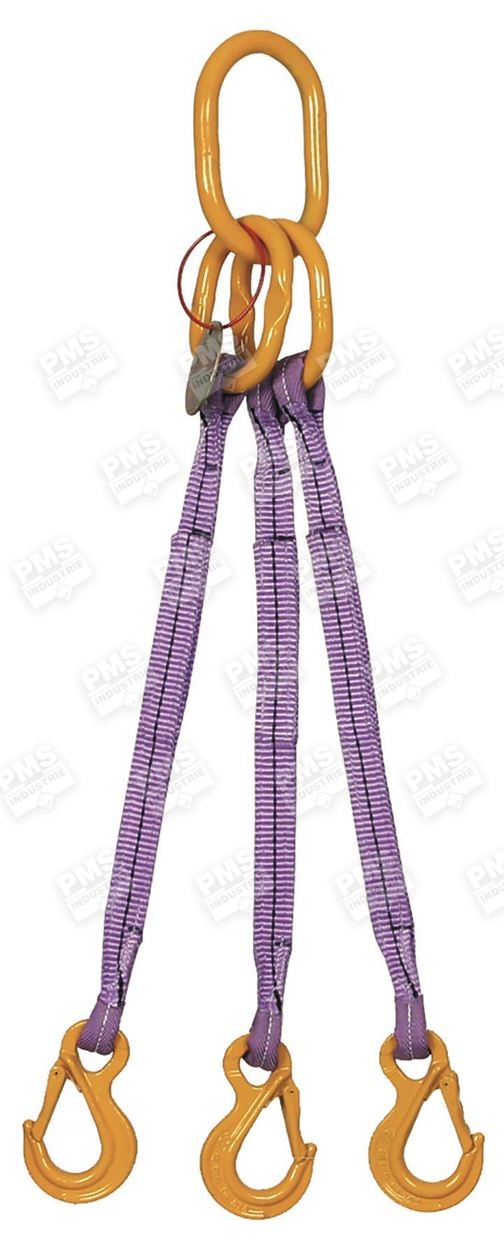

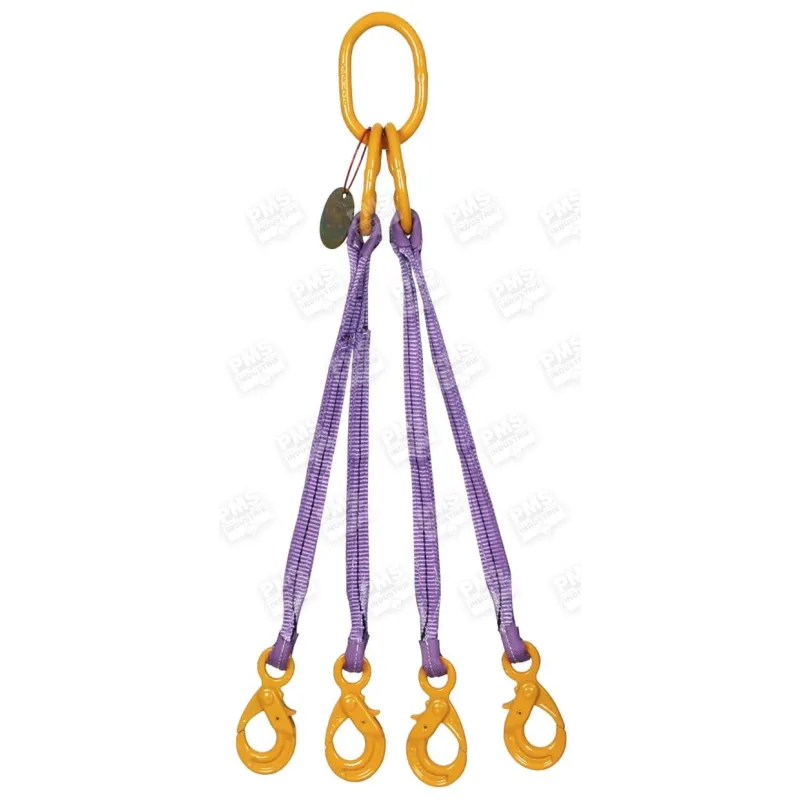

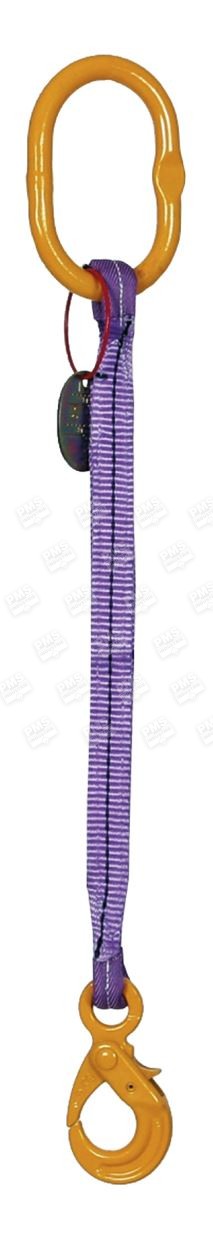

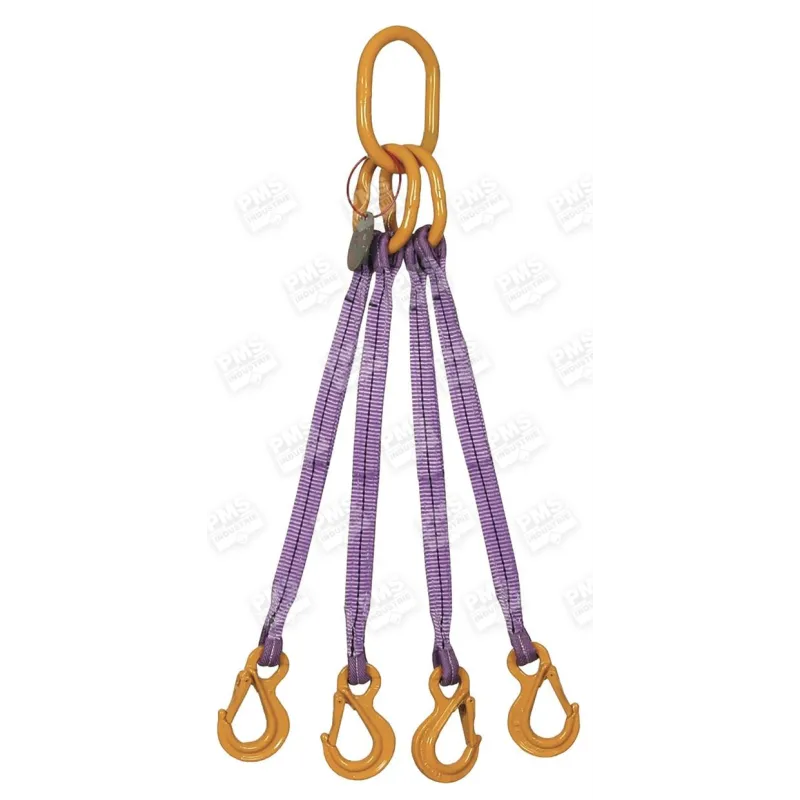

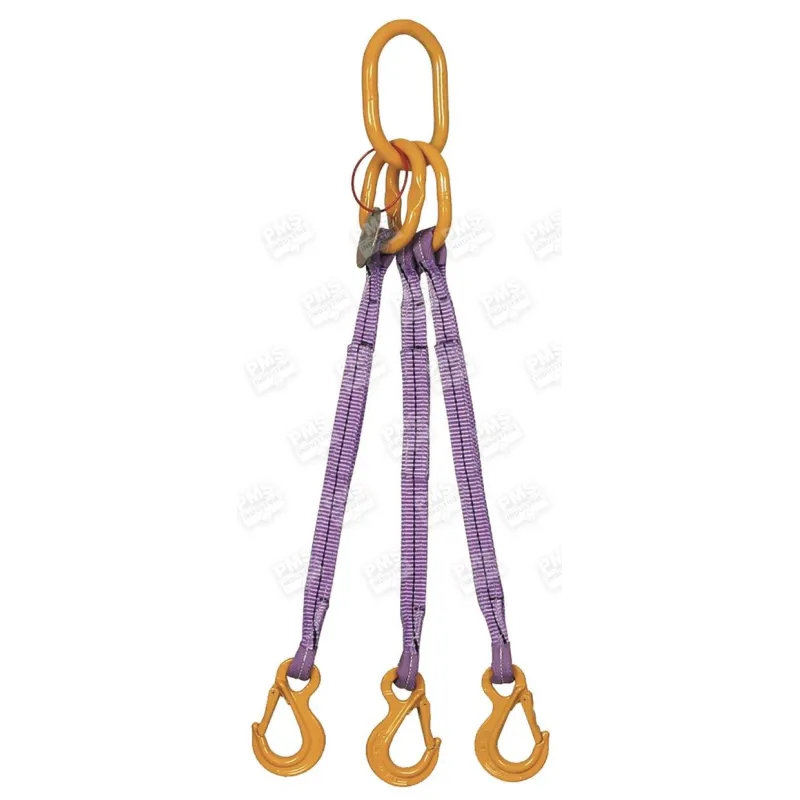

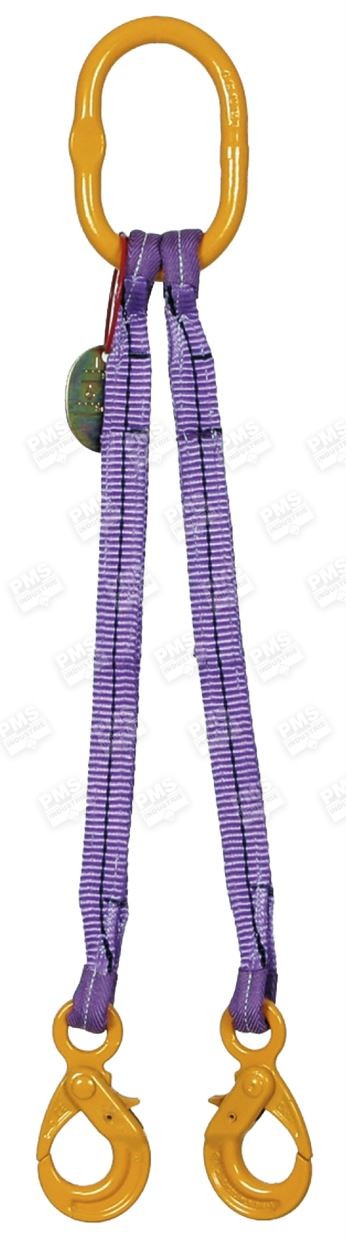

Multi-leg flat webbing slings are made from 100% polyester webbing, with self-locking or latch hooks at each end. A PVC protective sleeve is positioned on each leg. We manufacture these slings from 1 to 4 legs to the nearest centimeter, according to EN 1492-1+A1 standard.
Description
Features
Download
Description
About this product
Please note that the calculation of the WLL of the sling will be different depending on the number of legs and the lifting angle.Features
Features
| Product code | BMB |
| Material | 100% high tenacity multifilament polyester, steel endings |
| Standard | EN 1492-1+A1 |
| Ends / Terminations | Hook with latch or self locking hook |
| Usage factor | 4:1 for the whole set (the webbing keeps a safety factor of 7:1) |
| Maximum working length (m) | 100 |
| Operating temperature | From - 40°C up to + 100°C |
| Important information | Informations importantes |
| Référence Produits cross selling | EMB,ETCH,ECHT,ACMAJS,ACMOS,ACMOTS,ACMAJ,ECA300,ECA200,ECH400 |
| Minimum webbing width (mm) | 30 |
| Maximum webbing width (mm) | 90 |
| Configuration | Multi legs flat webbing sling, 1 to 4 legs |
| Référence Configuration produits similaires | EMB |
| Number of legs | 1 to 4 |
| WLL at 0 to 6° angle (T) | 1 to 0 |
| WLL at 7 to 45° angle (T) | 1,4 to 6,3 |
| WLL at 46 to 60° angle (T) | 1 to 4,5 |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
