With their reinforced folded eyes, these flat webbing slings are ideal for hook fastening. We manufacture them up to 20 T according to EN 1492-1+A1 standard.

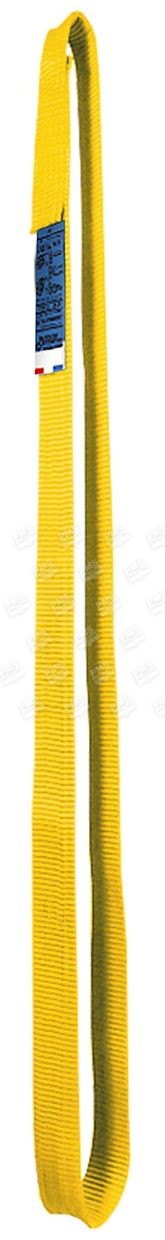

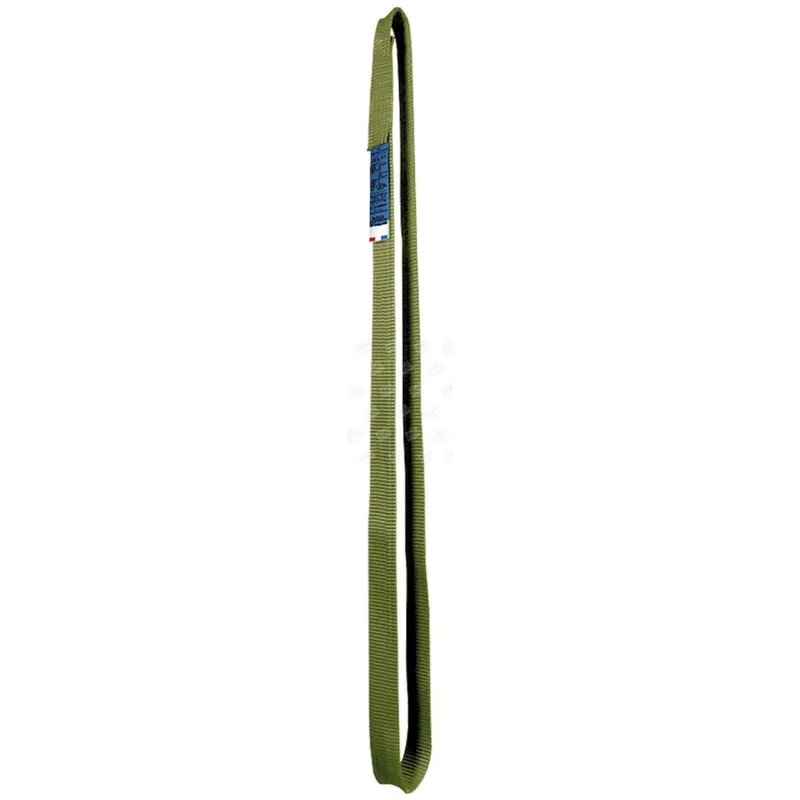

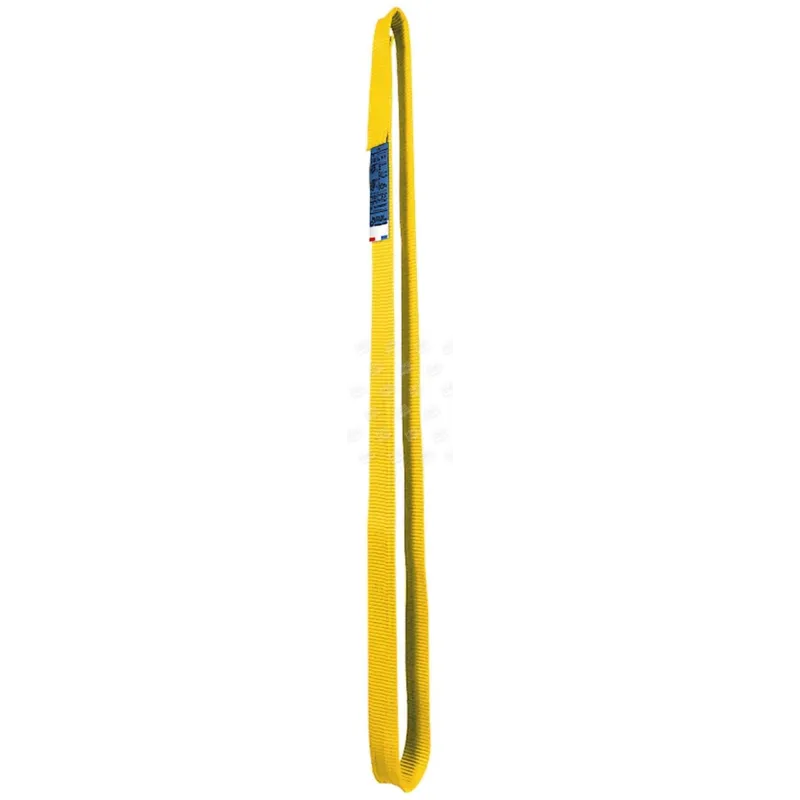

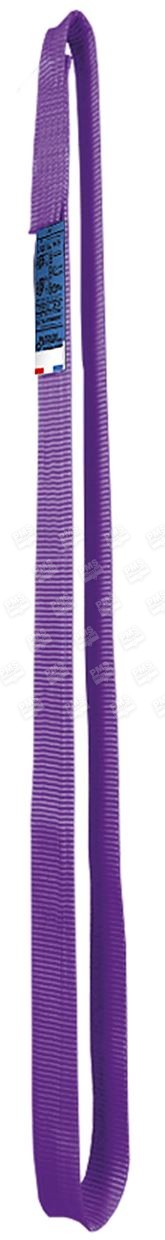

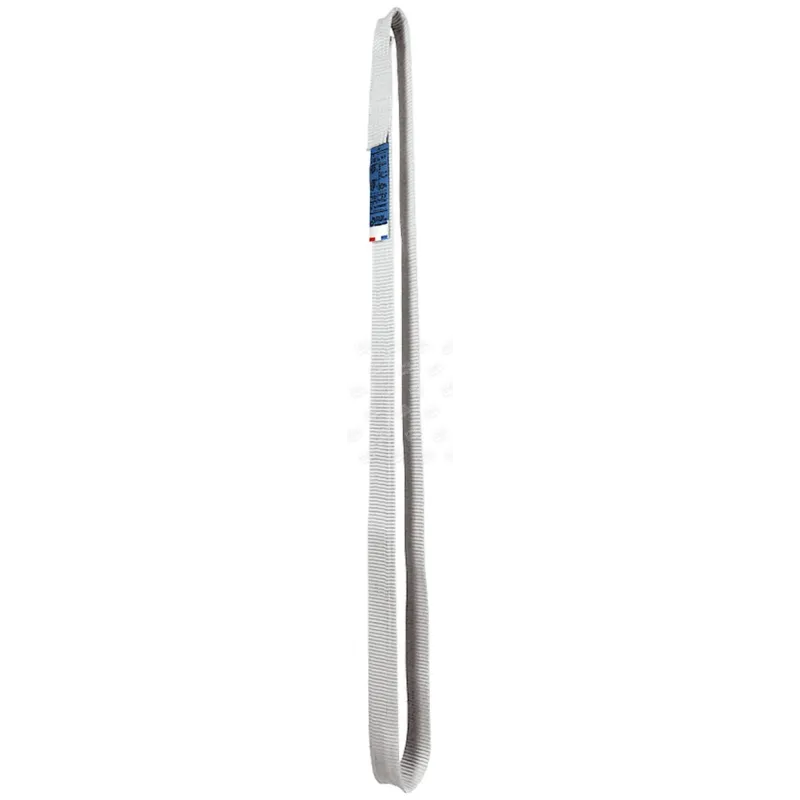

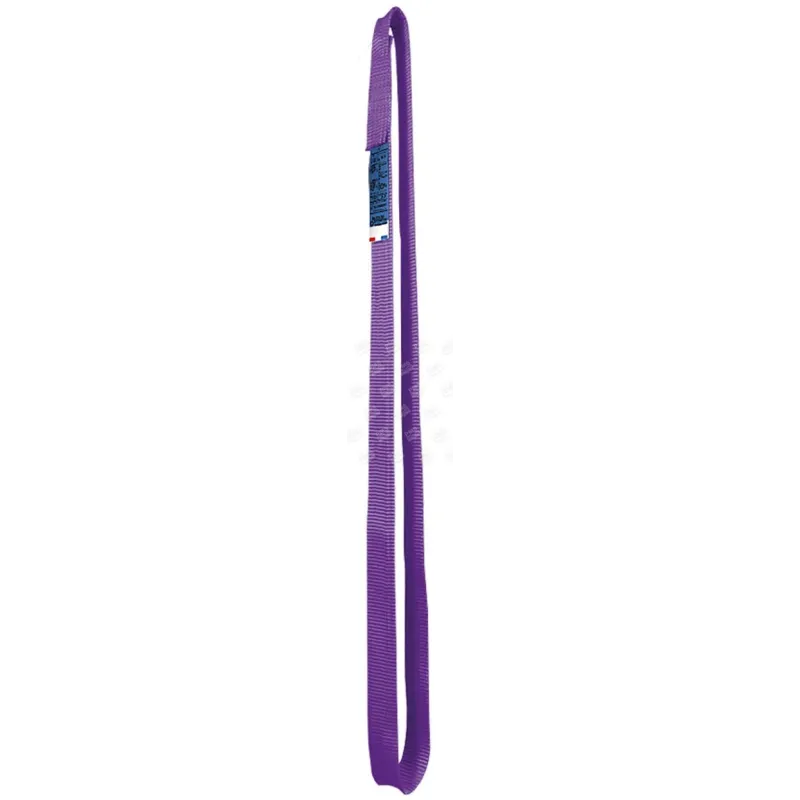

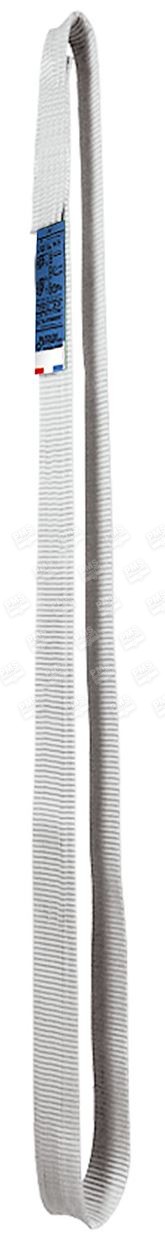

ENDLESS FLAT WEBBING SLING - D TYPE
Catégorie : Flat webbing slings
We manufacture endless flat webbing slings up to 20 T according to EN 1492-1+A1 standard. They are usually used for handling wooden frames or panels for houses, crates (heavy duty motors), etc.
Description
Features
Download
Description
About this product
Endless flat webbing sling - D-type with simple or double ply according to the necessary capacity. Depending on your needs and/or your working site, we can evenly adjust your slings lengths. Be careful, according to standard EN 1492-1+A1, make sure to always protect your slings if used in a lifting configuration with sharp angles. A wide range of protections is available: polyurethane, PVC or leather sleeve, polyurethane protection keeper, etc.Features
Features
| Product code | SPD |
| Material | 100% high tenacity multifilament polyester |
| Standard | EN 1492-1+A1 |
| CMU mini (T) | 0,5 |
| CMU maxi (T) | 20 |
| Usage factor | 7:1 |
| Maximum working length (m) | 100 |
| Weight per working metre (kg) | From 0,15 up to 4,50 |
| Operating temperature | From - 40°C up to + 100°C |
| Colour | According to WLL: 1 T purple, 2 T green, 3 T yellow, 10 T and more orange |
| Important information | Informations importantes |
| Référence Produits cross selling | AD,ELRO,COBRA,PVC |
| Minimum working length (m) | 0,5 |
| Minimum webbing width (mm) | 25 |
| Maximum webbing width (mm) | 300 |
| Thickness (mm) | 2,6 to 8 |
| Configuration | D-type: endless, 1 or 2 plies |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
You might be interested in these products
High‑capacity flat slings (up to 40 t), Type C with 4 plies and reinforced eyes. EN 1492‑1+A1 compliant, suitable for heavy loads and demanding environments.
These high-capacity flat webbing slings (up to 40 T) are manufactured according to EN 1492-1+A1 standard, with two male round wire rings at each end. They are ideal for heavy lifting operations.
These high-capacity flat webbing slings (up to 20 T) are manufactured according to EN 1492-1+A1 standard, with two male oxycut rings at each end.
These B-type (double ply) category 1 flat webbing slings are manufactured up to 20 T according to EN 1492-1+A1 standard. They have classic reinforced eyes.
This range of B-type (double ply) flat webbing slings is manufactured according to standard EN 1492-1+A1. They have reinforced folded scalloped eyes (category 3) to prevent the sling from rotating during lifting operation. With this configuration, the eye passage opening is oriented in a perpendicular plane to the lifting situation.
These category 4 flat webbing slings are widely used in the fields of construction, public works, building. They have two male round wire rings at each end. We manufacture them up to 20 T according to EN 1492-1+A1 standard.
These category 5 flat webbing slings are conceived for tie-lifting with their male and female round wire rings at each end. We manufacture them up to 20 T according to EN 1492-1+A1 standard.
