FLAT WEBBING SLING OXYCUT MALE AND FEMALE RINGS - B 7 TYPE
Catégorie : Flat webbing slings
These category 7 flat webbing slings are conceived for tie-lifting with their male and female oxycut rings at each end. We manufacture them up to 20 T according to EN 1492-1+A1 standard.
Description
Features
Download
Description
About this product

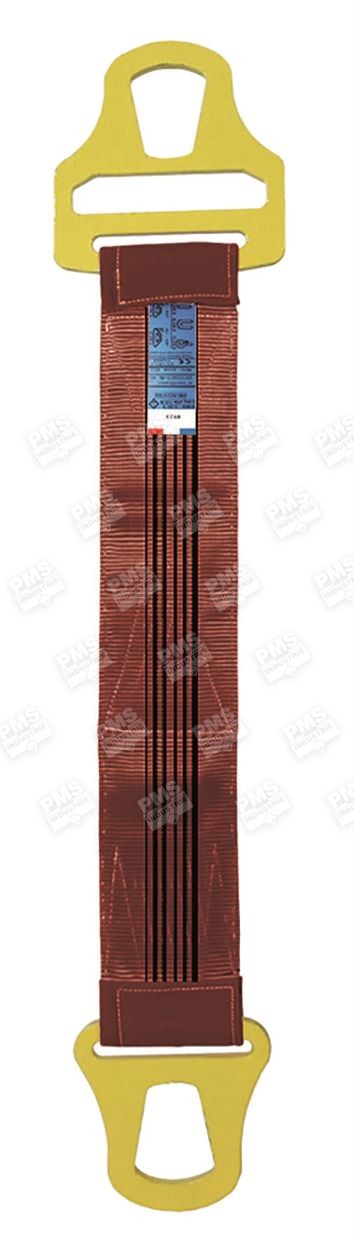

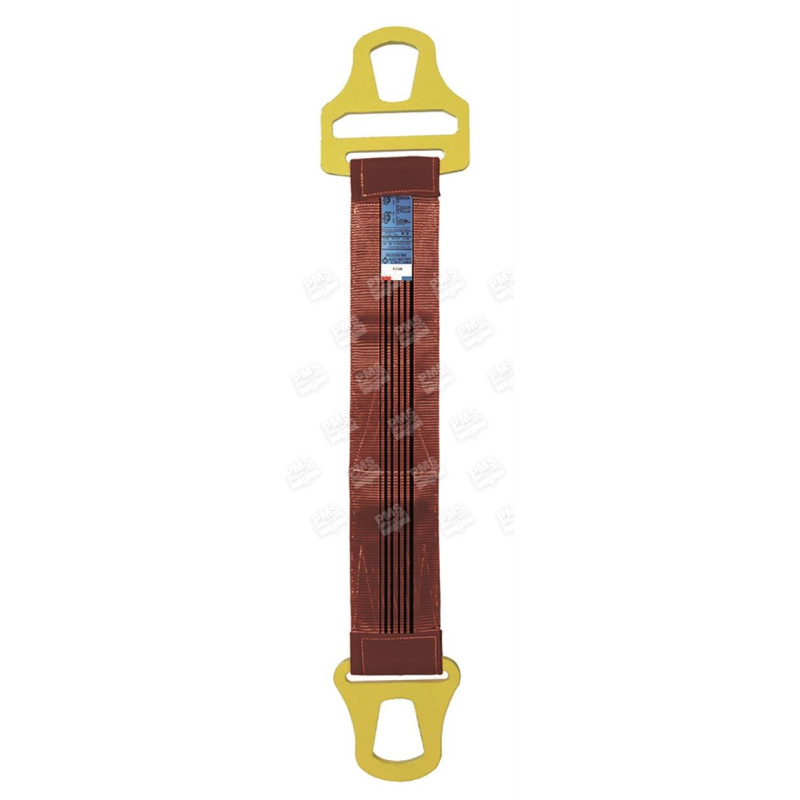

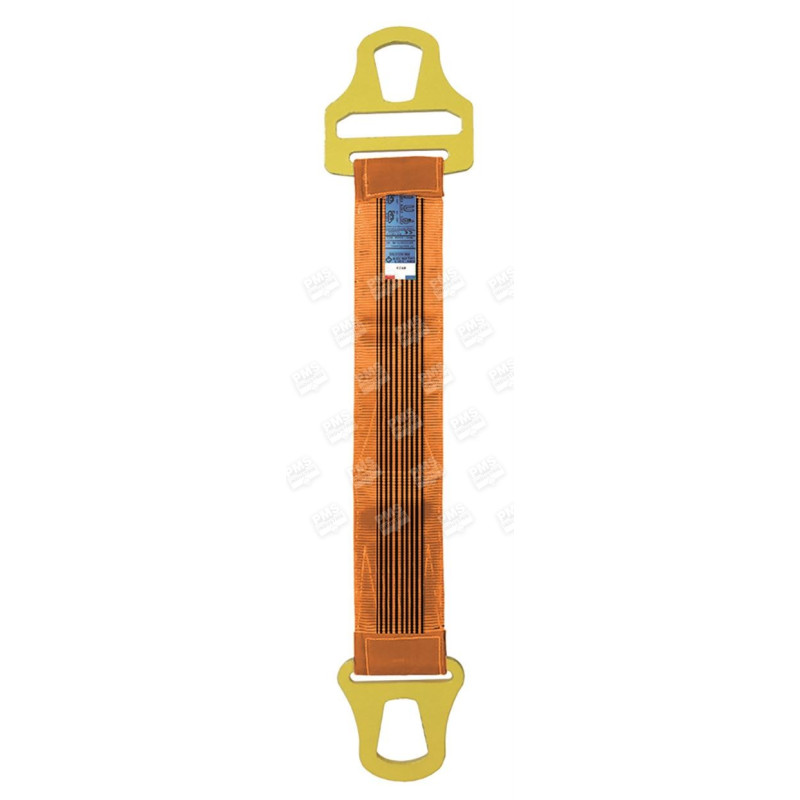

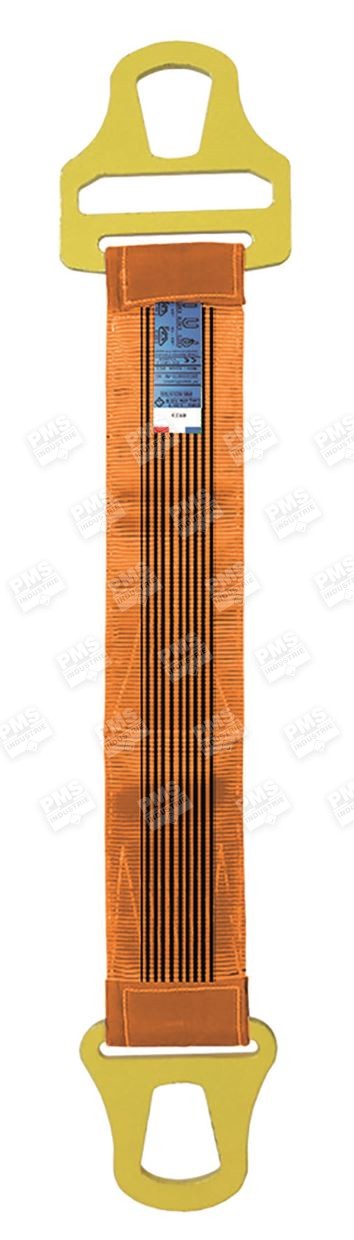

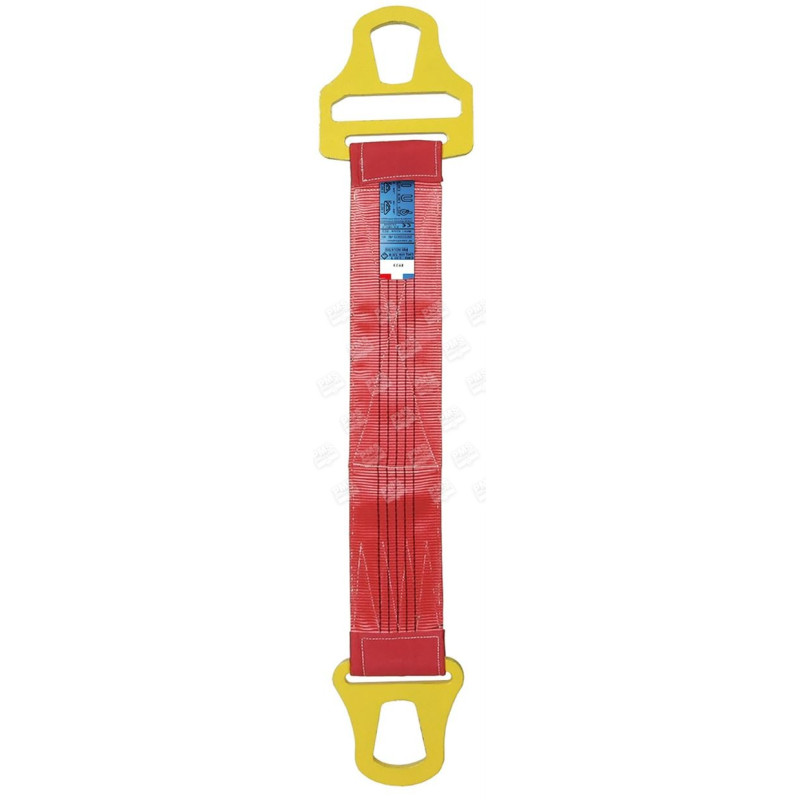

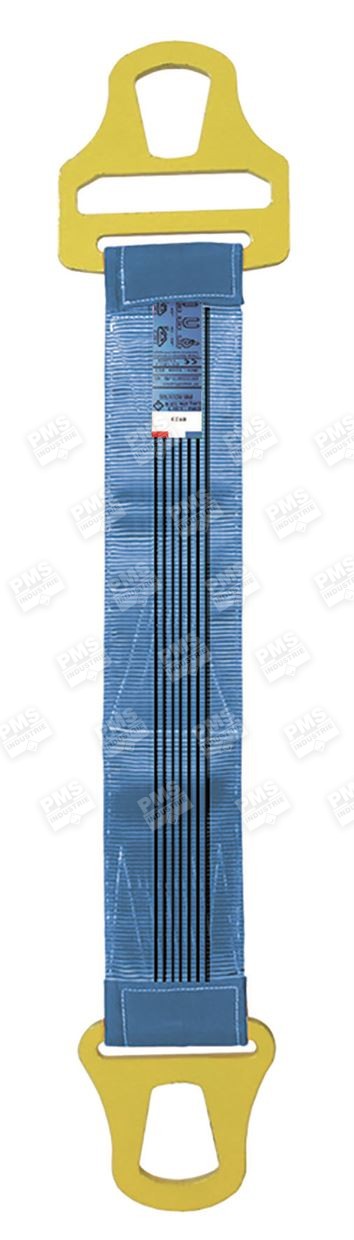

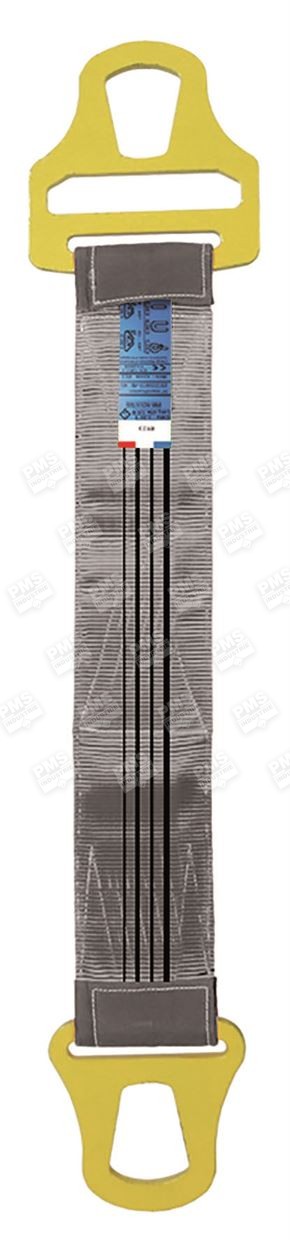

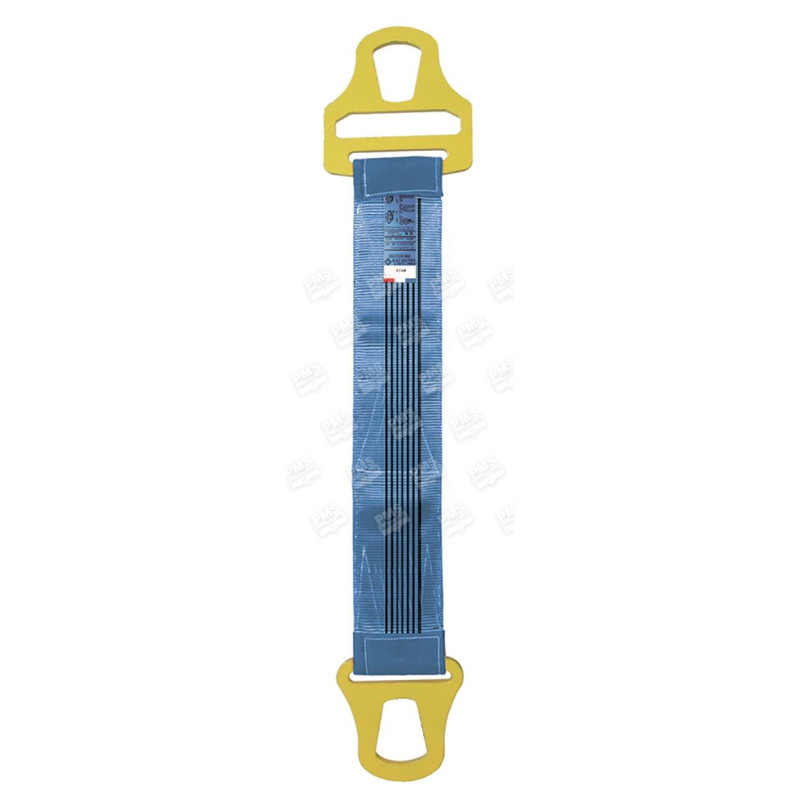

B-type flat webbing sling (double ply) with two oxycut male and female rings (category 7). Be careful, according to standard EN 1492-1+A1, make sure to always protect your slings if used in a lifting configuration with sharp angles. A wide range of protections is available: polyurethane, PVC or leather sleeve, polyurethane protection keeper, etc. Contact us to know the other optional materials available for ends reinforcement.Features
Features
| Product code | SPB7 |
| Material | 100% high tenacity multifilament polyester |
| Standard | EN 1492-1+A1 |
| CMU mini (T) | 0,5 |
| CMU maxi (T) | 20 |
| Coefficient d'utilisation | 4:1 for the whole set (the webbing keeps a safety factor of 7:1) |
| Longueur utile maxi (m) | 100 |
| Température d'utilisation | From - 40°C up to + 100°C |
| Couleur | According to WLL: 1 T purple, 2 T green, 3 T yellow, 10 T and more orange |
| Informations importantes | Informations importantes |
| Référence Produits cross selling | PP12,FP1234,PVC,SPC2,SPC4,SPB2,SPB1,SPB3,SPB4,SPB6,SPB5 |
| Longueur utile mini (m) | 1 |
| Largeur de sangle mini (mm) | 30 |
| Largeur de sangle maxi (mm) | 300 |
| Epaisseur (mm) | 7 to 8 |
| Configuration | B-type: 2 plies |
| Catégorie | 1 male and 1 female oxycut ring (cat. 7) |
| Poids 1er m (g) | From 7400 up to 30750 |
| Poids m/l (g) | From 800 up to 2250 |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
