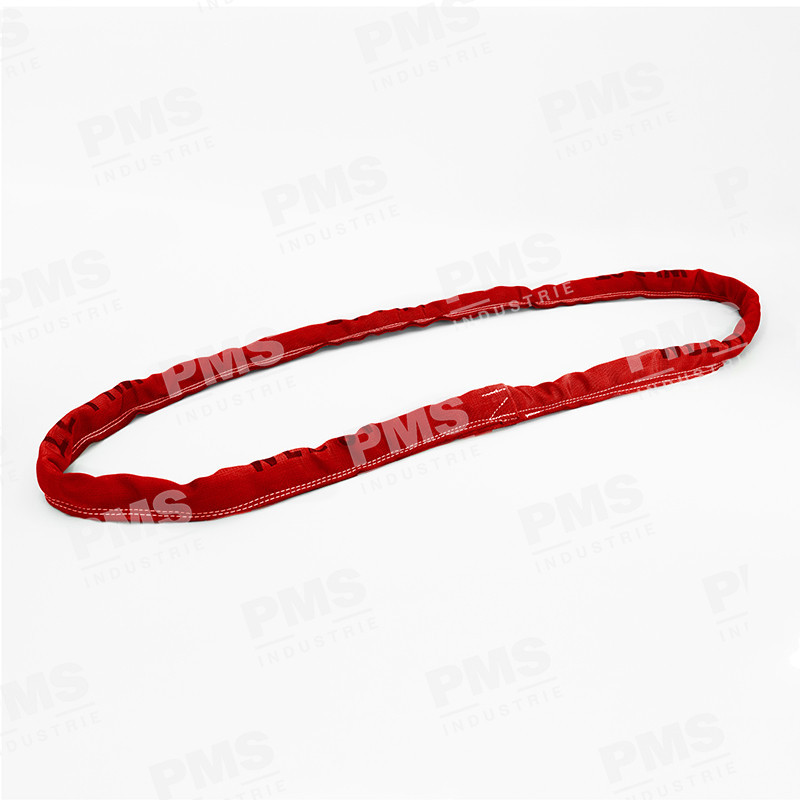

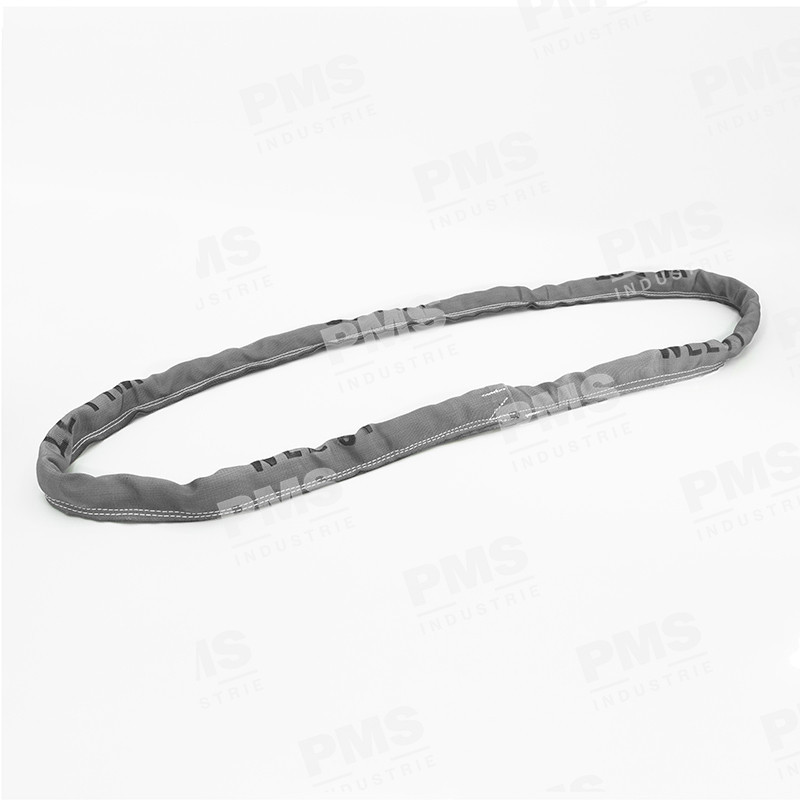

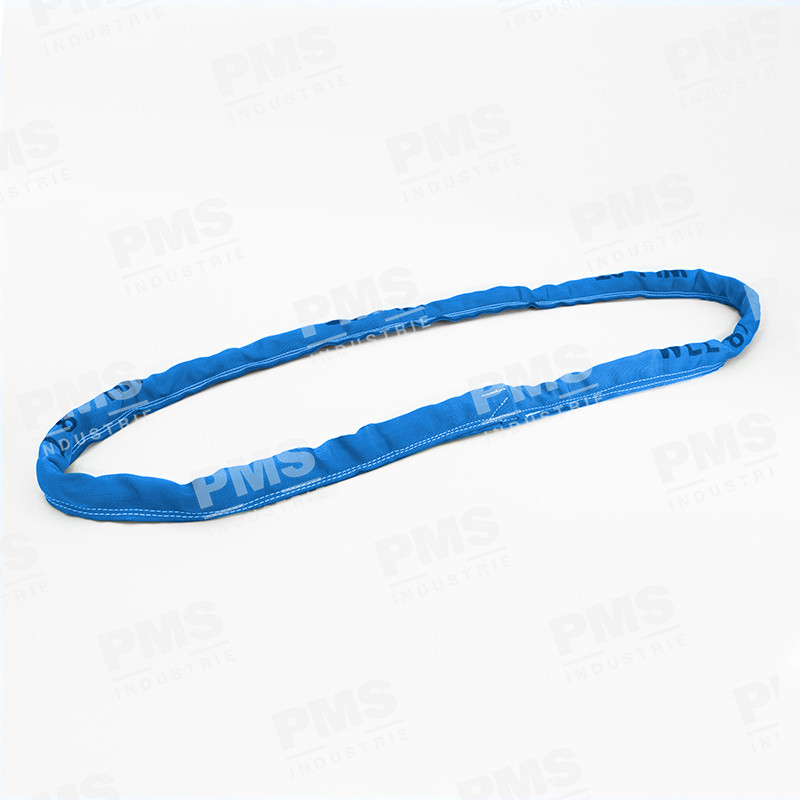

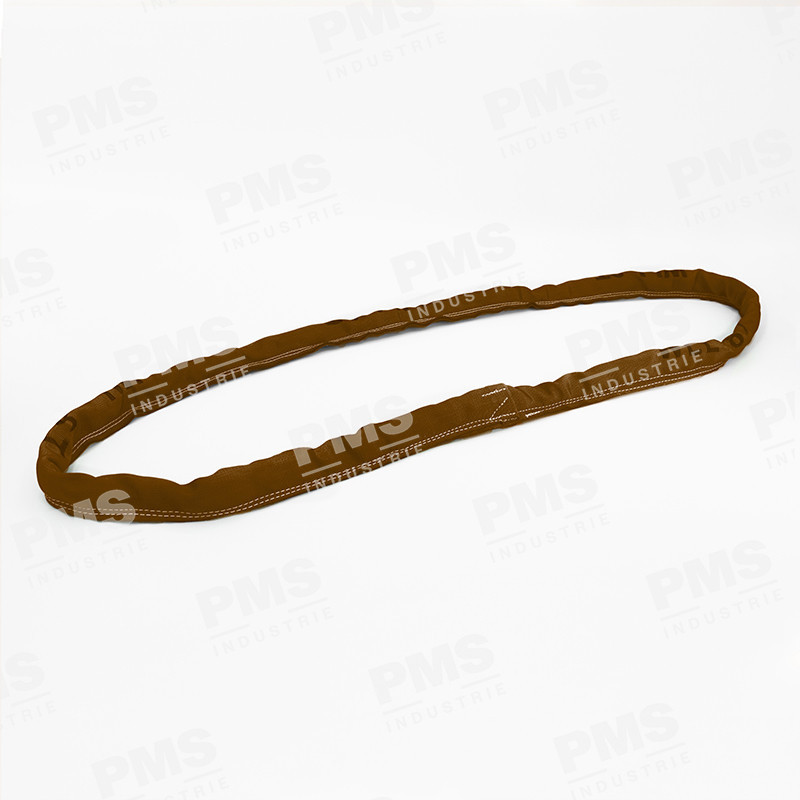

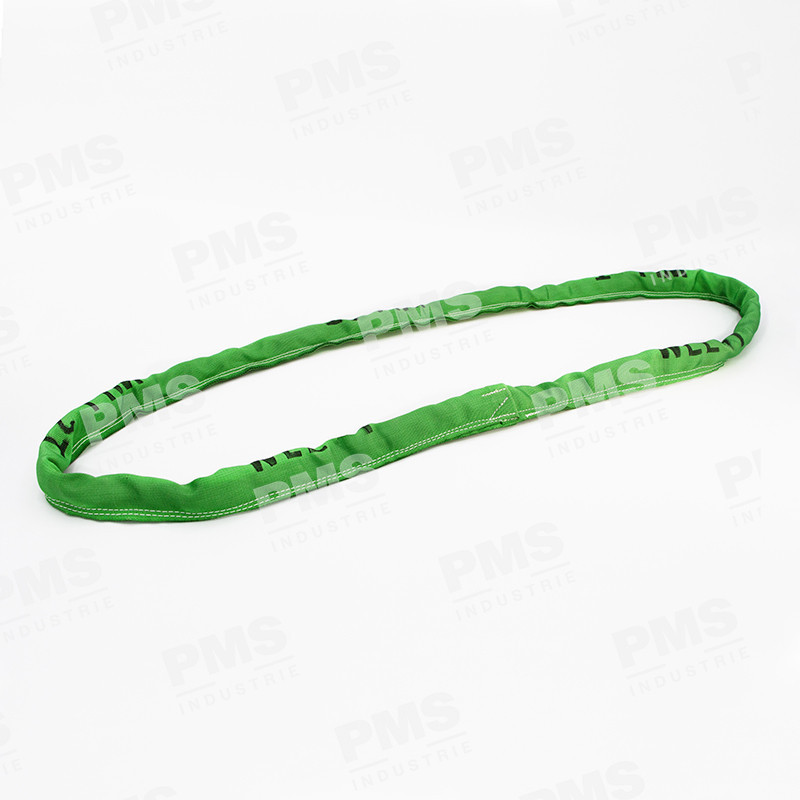

ROUNDSLING DOUBLE SLEEVE AND SIDE STITCH
Catégorie : Round slings
The double-sleeve roundsling with side seam is designed for lifting heavy loads and for operations requiring exceptional strength. Its specific construction gives it a round and uniform shape. Available with capacities of up to 600 tonnes, it is particularly suitable for industry, construction and the maritime sector.
About this product
Designed for heavy and very high-capacity lifting, the double-sleeve roundsling with side seam meets the requirements of the most demanding sectors, including heavy industry, construction, shipyards and maritime activities.

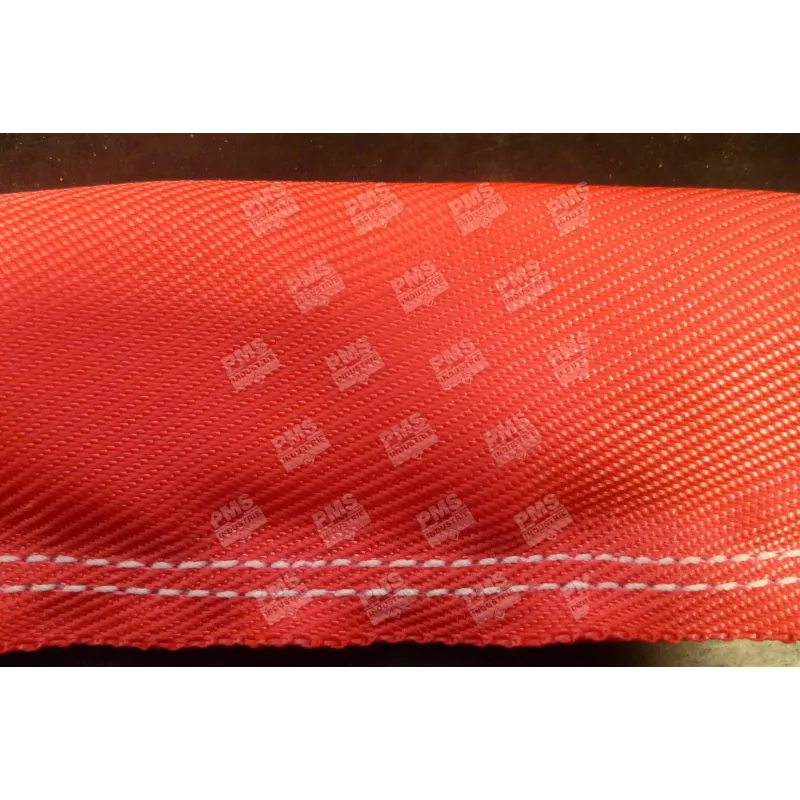

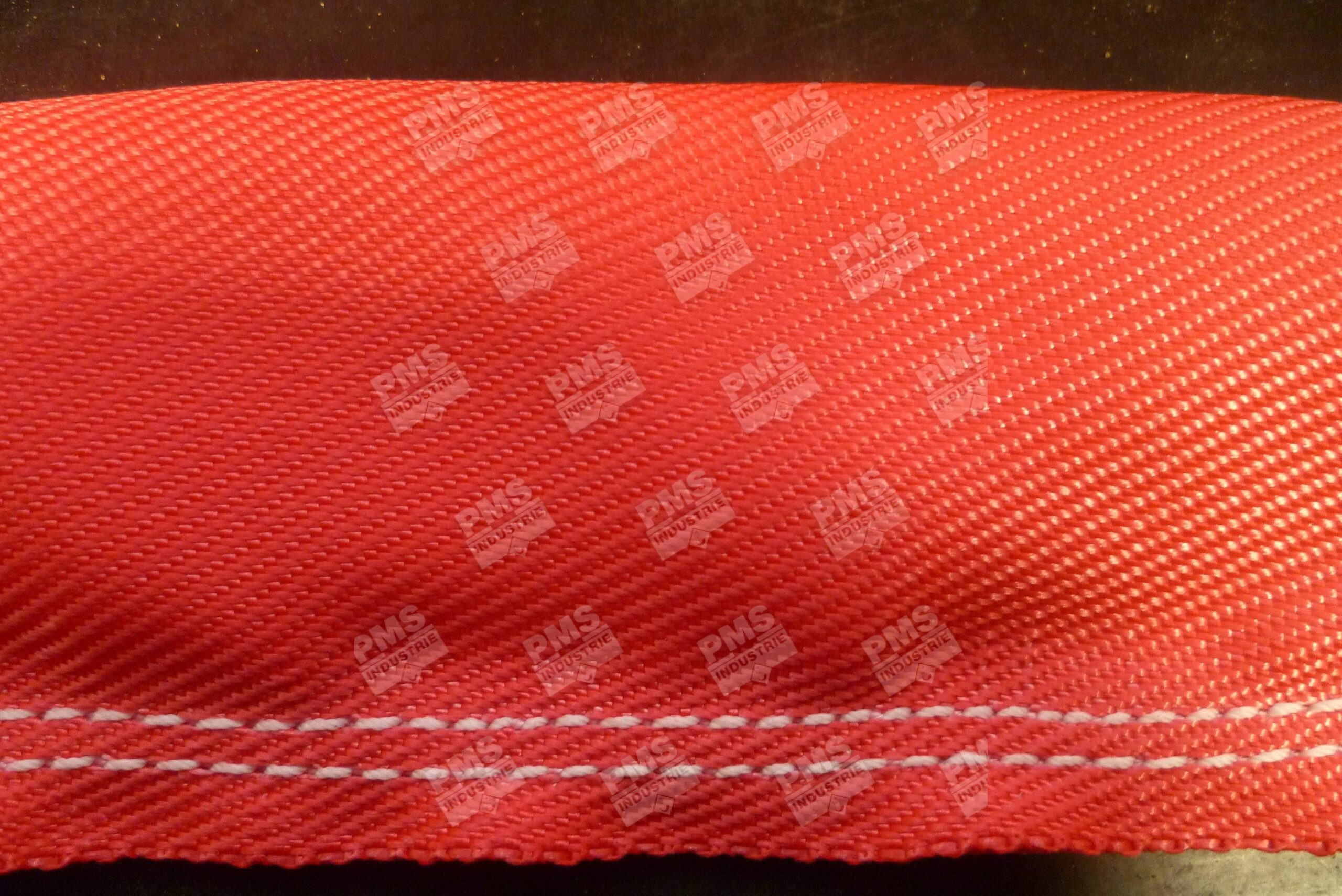

Its load-bearing core, made from high-tenacity multifilament polyester yarns, is positioned on the textile sleeve. The sleeve is then folded over and sewn along the side to create a double protective layer. This construction provides enhanced protection for the load-bearing fibres and gives the sling a rounder, more regular and uniform shape.
The roundsling with side seam can be manufactured in particularly high capacities and long lengths. Available with a WLL ranging from 1 to 600 tonnes and a usable length of up to 60 metres (please contact us), it is suitable for both exceptional lifting operations and handling applications requiring a short sling or limited clearance.
Each sling is fitted with a label ensuring its identification and traceability. Slings with a capacity of 100 tonnes or more feature two traceability labels: one standard label and a second polyurethane-coated label incorporated as a ring around the sling.
Made from high-tenacity polyester and compliant with the EN 1492-2+A1 standard, with a 7:1 safety factor, the double-sleeve roundsling with side seam is a robust, reliable and durable solution for the most demanding lifting operations.
Features
| Product code | ECC |
| Material | 100% high tenacity multifilament polyester |
| Standard | EN 1492-2+A1 |
| CMU mini (T) | 1 |
| CMU maxi (T) | 600 |
| Coefficient d'utilisation | 7:1 |
| Longueur utile maxi (m) | 80 |

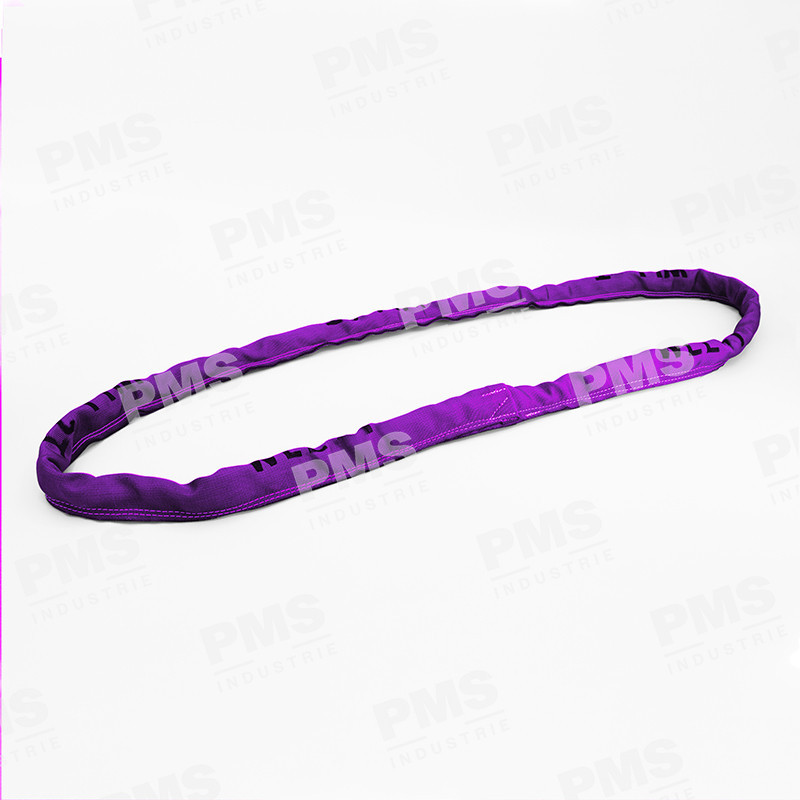

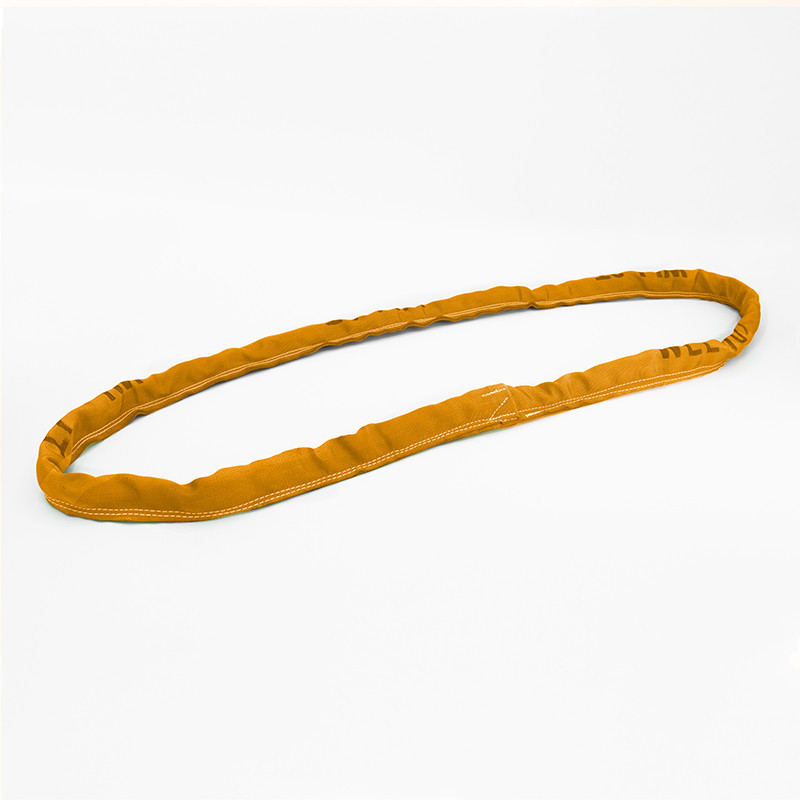

| Couleur | According to WLL: 1 T purple, 2 T green, 3 T yellow, 5 T red… 10 T and more orange |
| Informations importantes | Informations importantes |
| Référence Produits cross selling | ECM,COBRA,FP1234,GRIZZLY,MEGA |
Range benefits
- Very high capacities: WLL from 1 to 600 tonnes.
- Long lengths available: effective length up to 60 metres (please contact us).
- Reinforced core protection: double-layer textile cover.
- Round and uniform shape: achieved through side stitching.
- Versatile: suitable for heavy lifting and exceptional handling operations.
- High-tenacity construction: polyester core, cover and sewing threads.
- Guaranteed traceability: identification label fitted to each sling.
- Double traceability from 100 tonnes: second label protected by a polyurethane coating.
- For demanding applications: heavy industry, construction, shipyards and the maritime sector.
- Complies with EN 1492-2+A1: safety factor of 7:1.
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
