Catégorie : Round slings

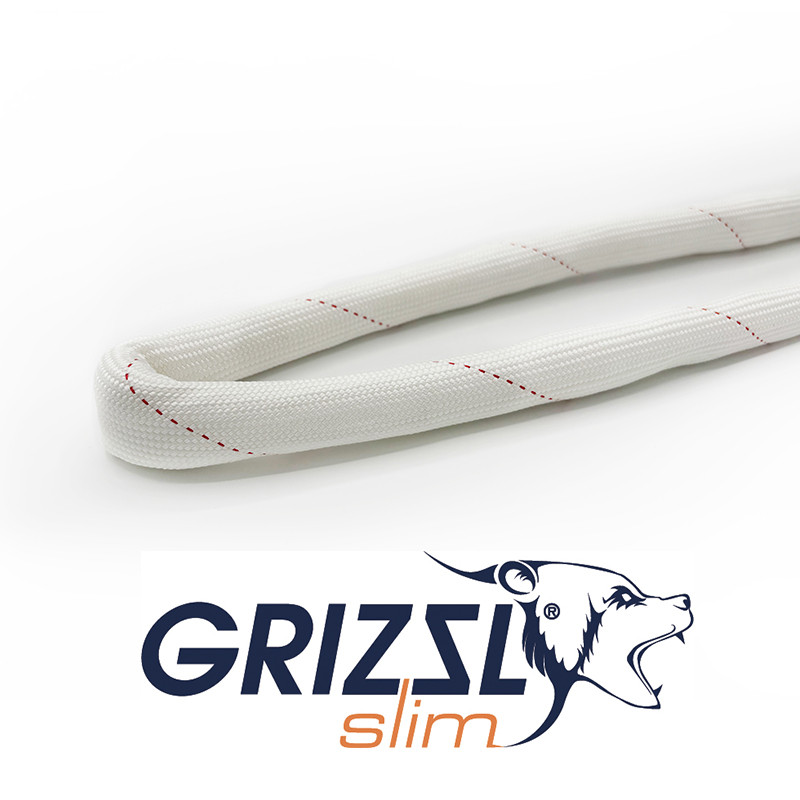

The strength of steel, the lightness of textile – designed for extreme lifting. The UHMWPE roundsling developed by PMS Industrie combines exceptional mechanical strength with remarkable lightness. Manufactured using Ultra‑High Molecular Weight Polyethylene (UHMWPE) – one of the strongest fibres available – it offers superior performance for high‑intensity lifting operations where safety, durability and precision are essential.
About this product
Key Features
• Made from 100% UHMWPE, offering outstanding resistance to cuts, abrasion, mechanical impact, UV radiation, seawater, hydrocarbons, and numerous chemicals.
• Reduced diameter, increasing compatibility with a wide range of lifting accessories.
• Maximum breaking load (MBL) up to 3000 t, suitable for the most demanding operations.
• Customisable lengths to match operational requirements
Performance & Safety
• Compact woven sheath prevents premature wear by keeping fibres densely packed and stable.
• Minimal elongation ensures excellent control, accuracy and stability during lifting.
• Optimised D/d ratio ensures that the sling fits accessories correctly, improving load distribution, controlling pressure on fibres, and minimising the risk of damage or cutting.
• This results in safer and more reliable lifting operations.
Lightweight & Easy to Handle
The UHMWPE roundsling offers a significant ergonomic advantage:
• 5 to 7 times lighter than a steel sling,
• 2 times lighter than a polyester sling,
• it floats on water for improved handling in marine environments.
This dramatic weight reduction simplifies transport and positioning while improving worker ergonomics and reducing the number of operators required.
Protective Sleeves (Optional)
To extend service life, PMS Industrie offers a range of protective sleeves adapted to the abrasiveness of the load:
• Compliant with EN 1492‑2: 2000 + A1: 2008, which recommends protection in the presence of sharp edges or abrasive surfaces.
• Sleeves reduce friction during lifting and protect both the sling and the load.
• Available in several thicknesses (PRO, PRO+, Expert) and multiple configurations (with/without Velcro, stitched or sliding).
Repairable Design
In the event of damage, the sleeve and/or seam can be repaired, avoiding complete replacement of the sling.
This provides:
• significant cost savings,
• longer product lifespan,
• reduced waste and a more sustainable approach
Main Fields of Application
This roundsling is designed for industries requiring the highest levels of reliability and resistance: Offshore, onshore, wind, nuclear, maritime, automotive, metallurgy, rail, military.
Traceability & Compliance
• Polyurethane‑coated identification label, providing a thick, protective layer that makes it nearly indestructible.
• Includes a QR code linking to the individual certificate of conformity. • Fully aligned with European lifting standards when used with appropriate protection (EN 1492‑2).
Features
| Product code | GRIZZER |
| Material | 100 % UHMwPE |
| CMU mini (T) | 3 |
| CMU maxi (T) | 10 |
| Usage factor | 7:1 |
| Maximum working length (m) | 40 |
| Weight per working metre (kg) | At least 1,9 |
| Operating temperature | From - 40 °C up to + 80 °C |
| Colour | Blanc |
| Important information | Informations importantes |
| Référence Produits cross selling | GRIZZLY,GRIZZER,GRIZZLYREM,FGR,ECC |
| URL Vidéo | https://www.youtube.com/watch?v=cPrHz-MPqKs |
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
