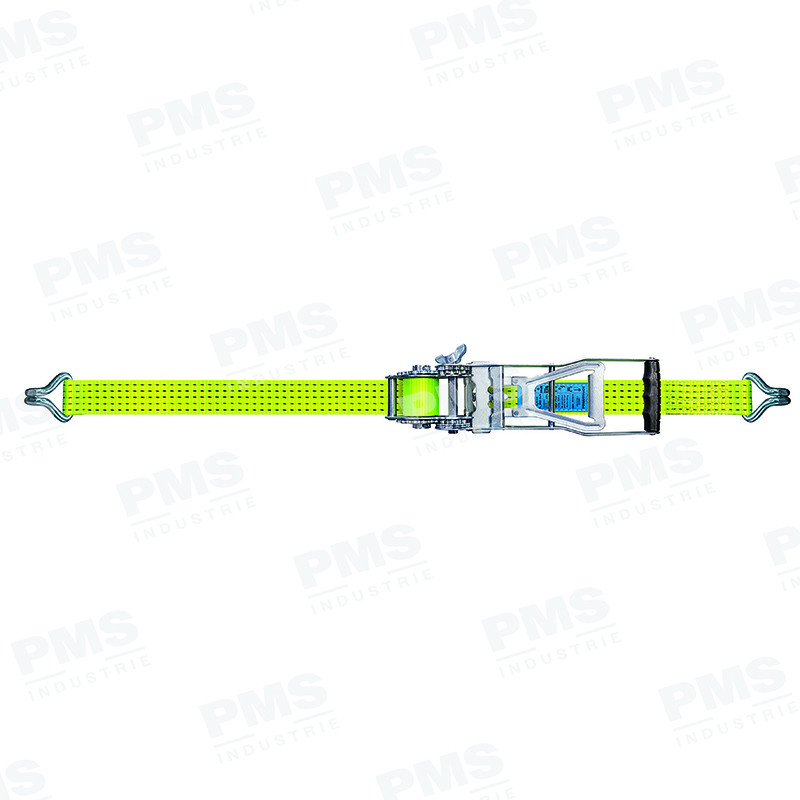

POWERTRUCK ERGO RATCHET WITH MULTIPLIED TENSIONING FORCE
Catégorie : 50 mm webbing heavy truck lashing
The POWERTRUCK® is a high-performance load securing system developed by PMS Industrie for road transport and cargo restraint applications. Thanks to its triple-gear ratchet tensioner and ergonomic reverse-action tensioning system, it achieves an STF of 800 daN, approximately twice that of a conventional ratchet. This performance reduces the number of lashing straps required while improving load safety. The system complies with EN 12195-2 and is available in a 50 mm webbing width, with a 10 m working length, a Lashing Capacity (LC) of 2,500 daN in straight pull, and 5,000 daN in loop lashing.
About this product
The POWERTRUCK® was developed to meet the needs of transport, logistics, construction, and industrial professionals seeking a more efficient load securing system than conventional solutions.

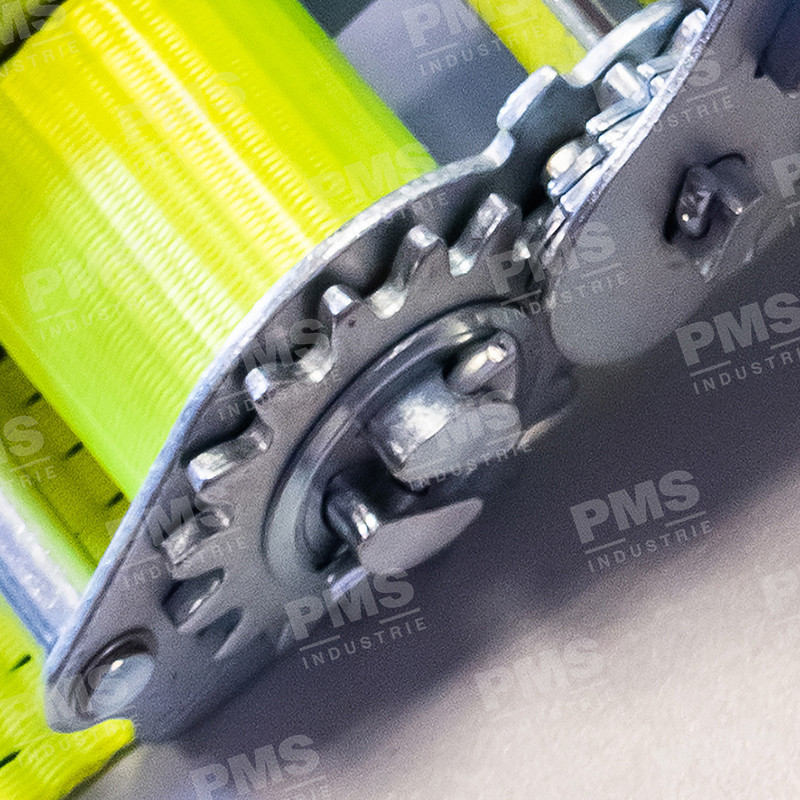

Its innovation lies in a triple-gear ratchet mechanism that multiplies the force applied by the operator. This technology delivers an exceptional STF (Standard Tension Force) of 800 daN, significantly improving the effectiveness of friction-based load securing. In many applications, a single POWERTRUCK® can replace two standard lashing systems while maintaining compliance with load restraint regulations.
The system also features an ergonomic reverse-action tensioner and a 30 cm handle. The operator applies force downward, using body weight rather than arm strength, reducing muscular strain and helping to protect the back during repetitive operations.
Benefit of an STF of 800 daN: reduce by at least 50% the number of tie-down lashings required in many applications.
Example (for illustration purposes only):
- Load: concrete block, 7,000 kg
- Wooden loading platform
- Lashing angle β = 60°
- Friction coefficient μ = 0.55
The number of lashing systems required depends on the specific application and must always be determined by calculation. The minimum number of lashings remains 2 for tie-down lashing and 4 for direct lashing.
STF (Standard Tension Force) is the residual tension in the webbing that keeps the load secured. The triple-gear system increases tensioning force while reducing the manual effort required from the operator.
Features
| Product code | 6PT22 1000 40 JAX POWER |
| Material | 100% high tenacity multifilament polyester webbing, steel ratchet |
| Standard | EN 12195-2 |
| Useful length (m) | 10 |
| Strap width (mm) | 50 |
| LC en direct (daN) | 2500 |
| Double load capacity (daN) | 5000 |
| Breakage of the strap only (T) | 7,5 |
| Température d'utilisation | From - 40°C up to + 100°C |
| Informations importantes | Informations importantes |
| Paragraphe 4 | Traçabilité optimale : l’étiquette de traçabilité est cousue sur la sangle avec une partie prise sous la couture. Ce qui permet d’assurer sa visibilité en toutes circonstances et de la protéger contre les risques de déchirure et d’arrachement. |
Les + de la gamme

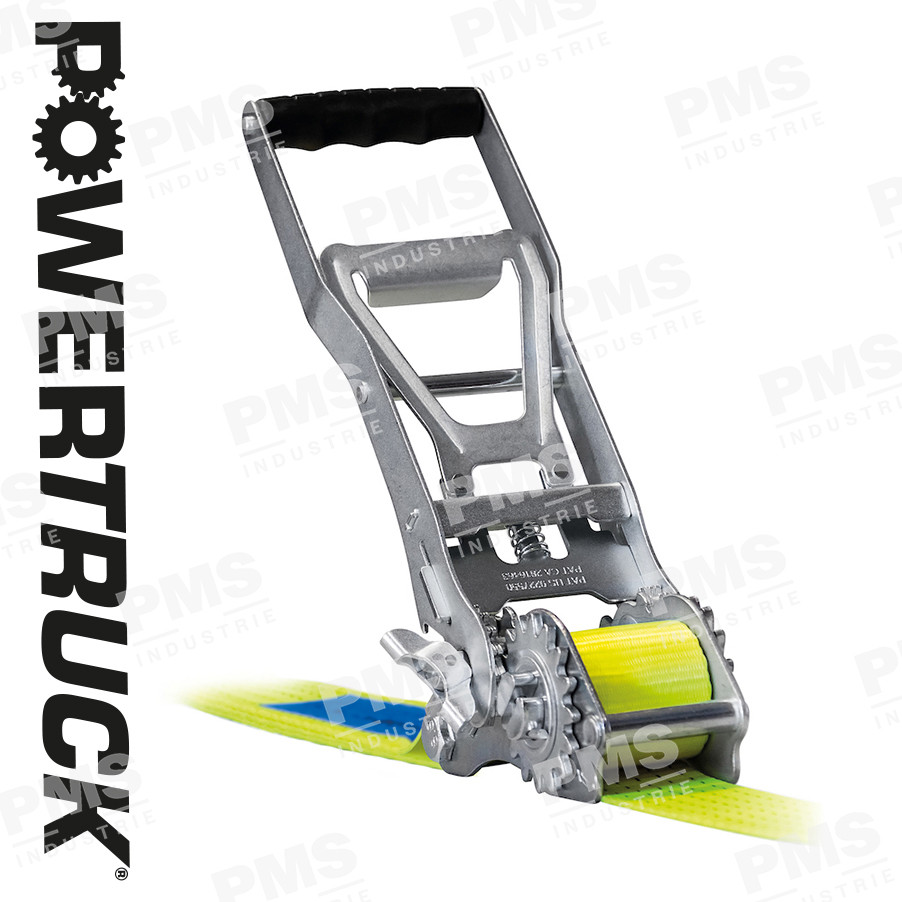

Large Ergonomic Ratchet Tensioner
• Ensures optimal grip, even with gloves.
• Allows for more powerful tightening without excessive operator fatigue.
• Wide range of motion = increased tension with less effort.
Multiplied Tension (Reduced User Effort)
• The tensioner is specially designed to multiply the applied force, making tightening faster and more efficient.
• Thanks to this system, the operator can more easily achieve high tension levels.
Exceptional STF: 800 daN
• The STF corresponds to the actual residual tension exerted on the load.
• An STF also allows for: a significant reduction in the number of straps used for friction securing; superior load retention, even under high dynamic stresses; and significant operational time savings.
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
