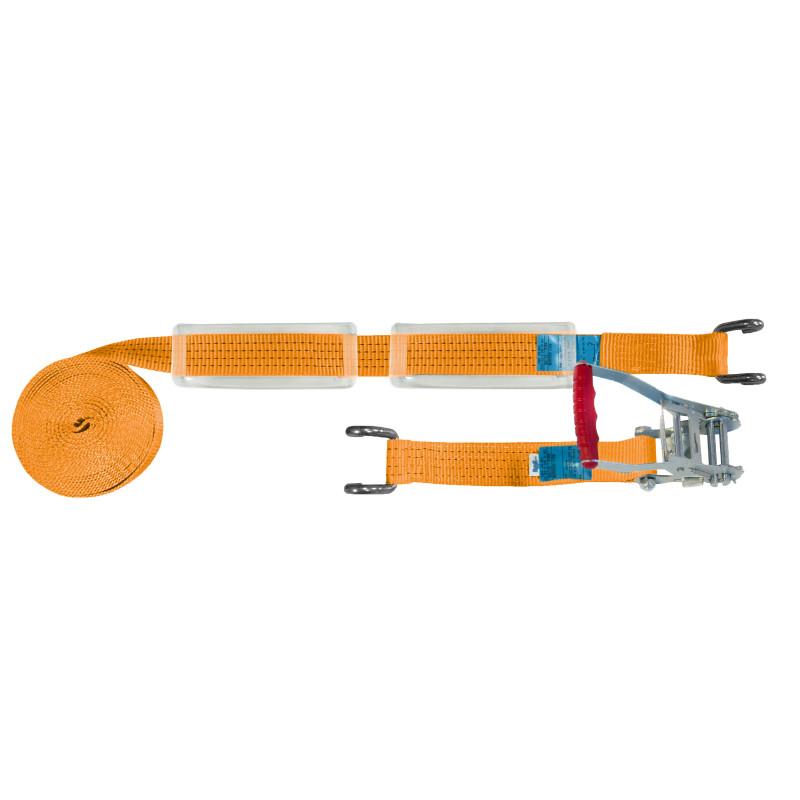

REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN
REGULAR RATCHET 811PPA - COVERING LC 4000 daN

REGULAR RATCHET 811PPA - COVERING LC 4000 daN

Catégorie : 50 mm webbing heavy truck lashing

These lashing systems with 50 mm wide webbing are traditional lashing system for heavy trucks. The ratchet with secured opening is composed of a gear wheel and a handle, tensioning the webbing by wrapping it around its axis. You need to lift the handle of the ratchet to tension the webbing. These systems have a covering LC of 4 000 daN – 6 T (breaking strength of the webbing only 6 T or 6 000 daN) and a STF of 400 daN.

Request a quote
Call an advisor

About this product

Additional meter weight: 100 g. Internal range ref: 5D. This range is available with: - Covering LC 5 000 daN (breaking strength of the webbing only 7,5 T): ref. 811 PPA 2.50 (internal ref: 6D). - Covering LC 3 200 daN (breaking strength of the webbing only 4,8 T): ref. 811 PPA 1.60 (internal ref: 9D). - MAGMA® material for extreme resistance up to 300°C. - A black painted ratchet (ref. 811 PP NO) or NATO green painted ratchet (ref. 811 PP VO). Depending on your use, a wide range of protections is available: polyurethane or PVC sleeve, polyurethane protection keeper, etc.

Features

Product code 5D
Material 100% high tenacity multifilament polyester webbing, galvanized steel ratchet
Standard EN 12195-2
Ends / Terminations Similar or mixed, many possibilites available
Strap width (mm) 50
LC in straight pull (daN) 2000
Double load capacity (daN) 4000
STF (daN) 400
Breakage of the strap only (T) 6
Length of short section (m) 0,3
Operating temperature From - 40°C up to + 100°C
Important information Informations importantes
Options Black or NATO green painted steel ratchet
Déclinaisons 5 000 daN or 3 200 daN covering LC. Made with MAGMA range for high-temperature resistance. Stainless steel ratchet for corrosion resistance

Important information

Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
