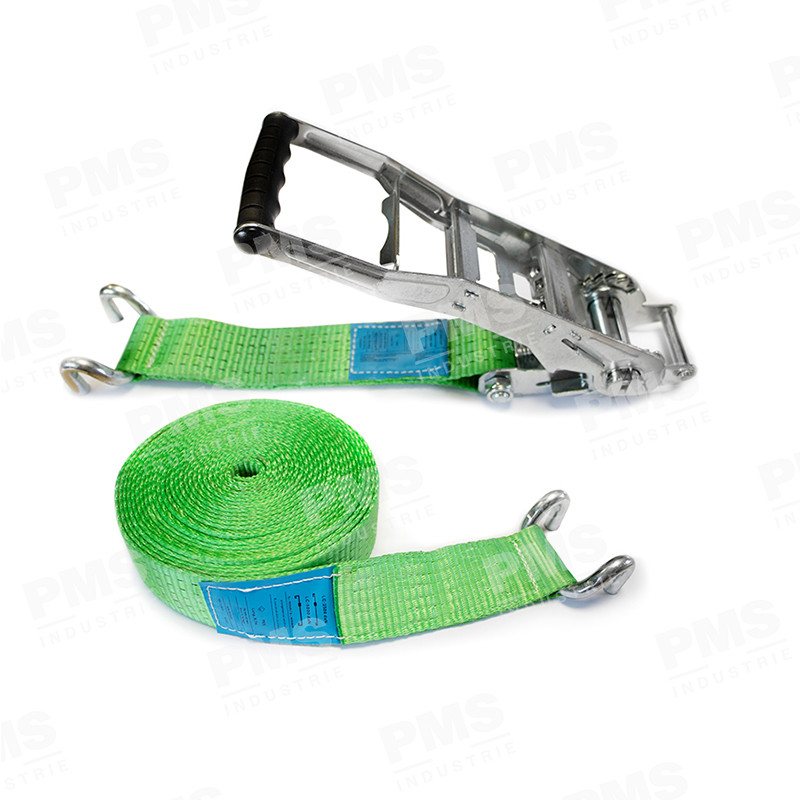

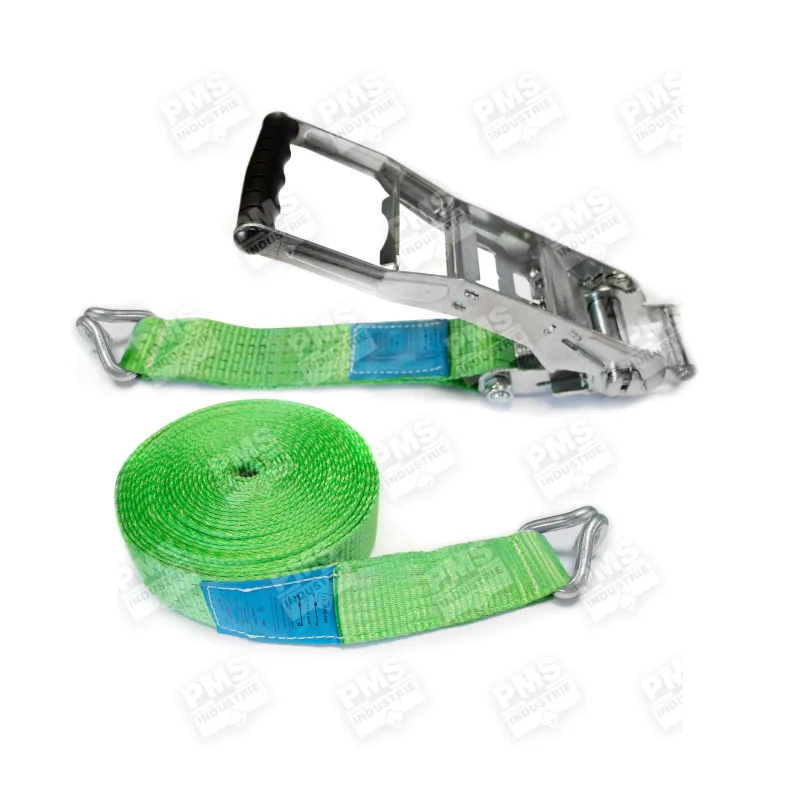

ERGOTRUCK ERGO RATCHET - COVERING LC 5000 daN
Catégorie : 50 mm webbing heavy truck lashing

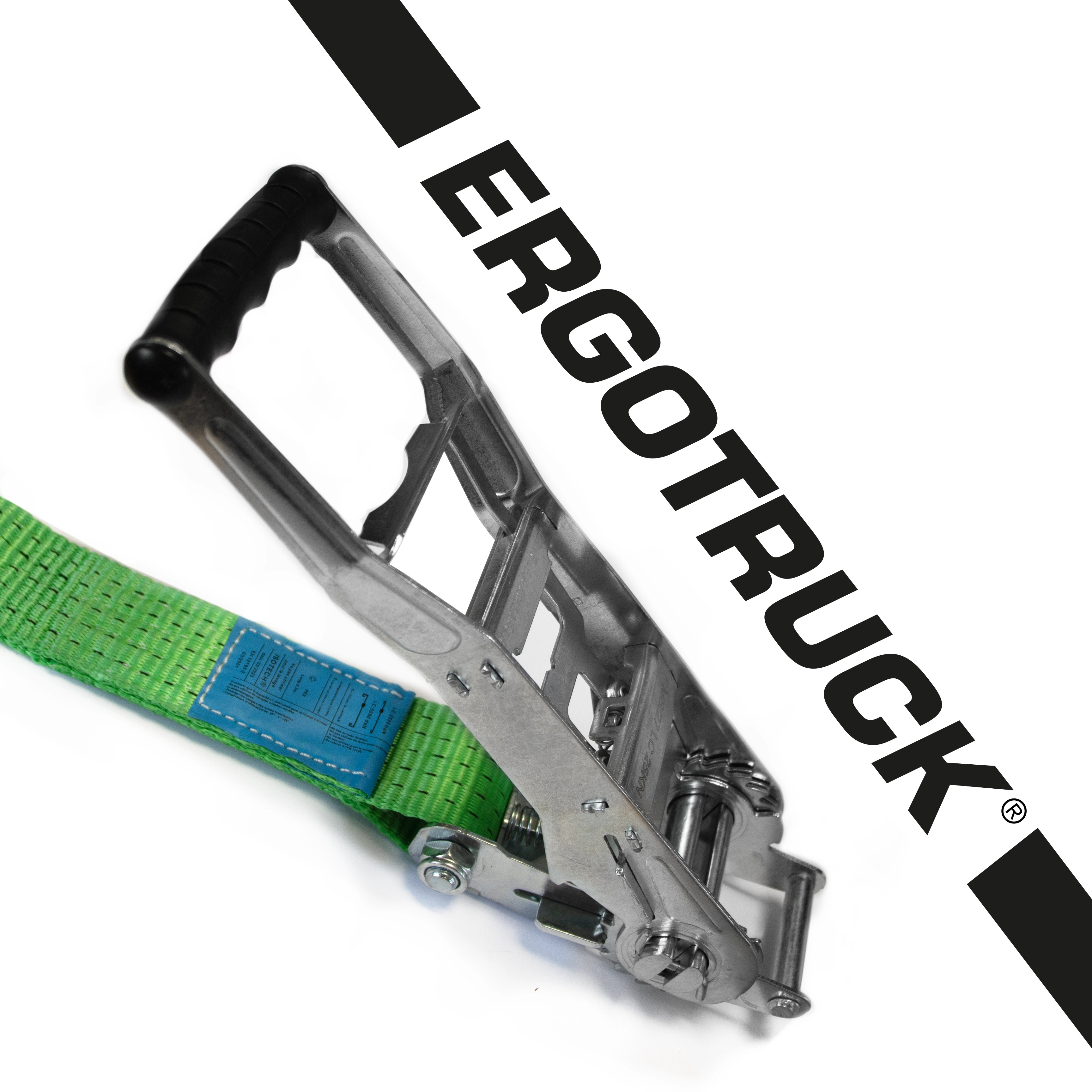

The ergonomic ratchet, also known as inverted ratchet, has reversed gearing system compared to a traditional ratchet. You push down the ratchet's handle with your body weight to tighten the webbing. These ratchets are particularly suitable for loads requiring strong tightening, such as logs for example. These heavy truck lashing systems with 50 mm wide webbing have a covering LC of 5 000 daN – 7,5 T (breaking strength of the webbing only 7,5 T or 7500 daN) and a STF of 400 daN. They are manufactured according to standard EN 12 195-2.
About this product
Regular product: effective working length 9 m, green webbing. Additional meter weight: 130 g. Internal range ref: 6EG. 100 % high tenacity polyester fiber webbing and sewing thread: high resistance to friction, abrasion, UV and chemical products. Customized manufacturing possible: mm specific length, marking and color of the webbing, identical or different fittings… Depending on your use, a wide range of protections is available: polyurethane or PVC sleeve, polyurethane protection keeper, etc.Features
| Product code | 6EG |
| Material | 100% high tenacity multifilament polyester webbing, steel ratchet |
| Standard | EN 12195-2 |
| Ends / Terminations | Similar or mixed, many possibilites available |
| Useful length (m) | 9 |
| Strap width (mm) | 50 |
| LC en direct (daN) | 2500 |
| Double load capacity (daN) | 5000 |
| STF (daN) | 400 |
| Breakage of the strap only (T) | 7,5 |
| Length of short section (m) | 0,3 |
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
