CÂBLE HORLOGERIE 6 x 7 - CA001
Catégorie : Wire Ropes
Câblage croisé droite préformé avec âme textile, prévu pour un usage général. Conforme à la norme Norme EN 12385-4+A1.
Description
Features
Download
Description
About this product

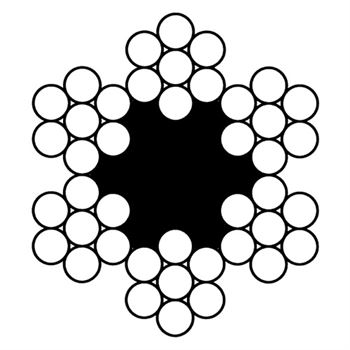

Conception : 6 torons de 7 fils (6 + 1). Diamètres de câble de 2 à 6 mm. Ruptures de 239 à 2 157 kg. Poids : de 0,013 à 0,132 kg/ml. Longueur sur mesure.Features
Features
| Product code | CA001 |
| Material | acier galvanisé non graissé, âme textile |
| Standard | EN 12385-4+A1 |
| Minimum strand diameter (mm) | 2 |
| Operating temperature | de - 20 °C à + 100 °C |
| Important information | Informations importantes |
| Référence Produits cross selling | CA002,CA003,CA004,CA005,CA007,CA009,CA021 |
| Configuration | 6 torons de 7 fils (6 + 1) |
| Weight per linear metre (kg) | de 0,013 à 0,132 |
| Maximum strand diameter (mm) | 6 |
| Wire rope type | croisé droite préformé |
| Tensile strength grade (N/mm²) | 1 770 |
| Breaking load (kg) | de 239 à 2 157 |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
