CÂBLE GAINÉ 7 x 7 ET 7 x 19 - CA011
Catégorie : Wire Ropes
Câblage croisé droite enrobé d'une gaine en PVC.
Description
Features
Download
Description
About this product
Diamètres de câble de 02 à 10 mm. Diamètres de câble final avec PVC de 03 à 12 mm. Ruptures de 287 à 6 420 kg. Poids : de 0,022 à 0,436 kg/ml. Longueur sur mesure.Features
Features
| Product code | CA011 |
| Material | acier galvanisé non graissé, enrobé de PVC |
| Important information | Informations importantes |
| Référence Produits cross selling | CA001,CA003,CA004,CA005,CA007,CA009,CA021 |

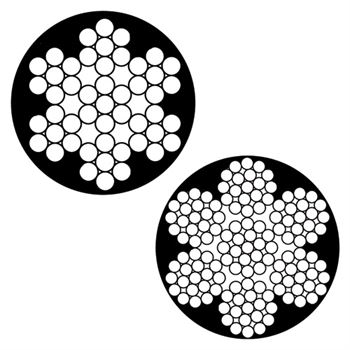

| Configuration | 7 torons de 7 fils ou 7 torons de 19 fils |
| Weight per linear metre (kg) | de 0,022 à 0,436 |
| Minimum strand diameter (mm) | 02/03 |
| Maximum strand diameter (mm) | 10/12 |
| Wire rope type | croisé droite |
| Breaking load (kg) | de 287 à 6 420 |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
