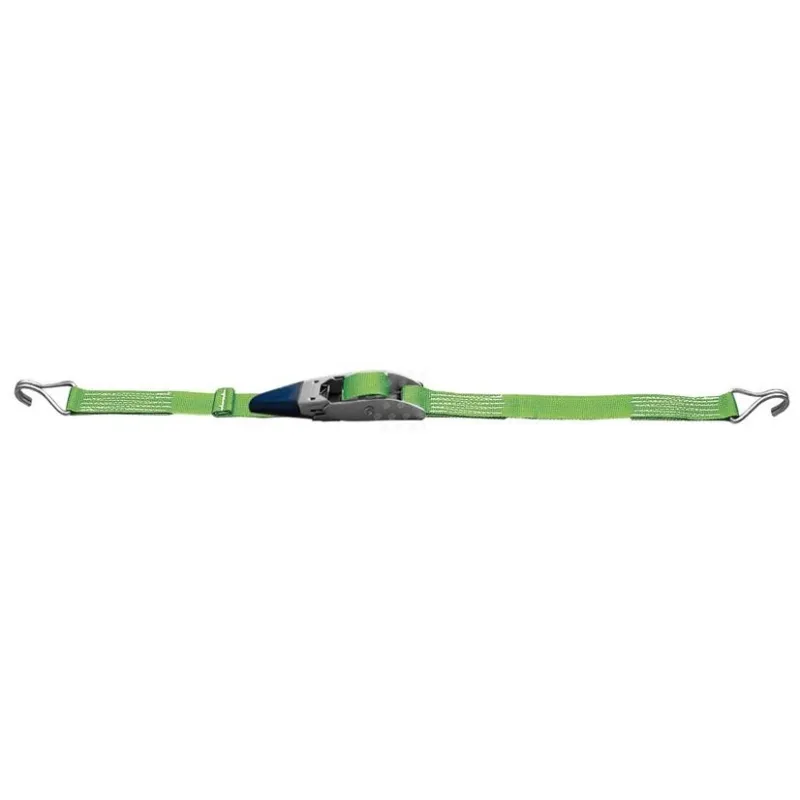

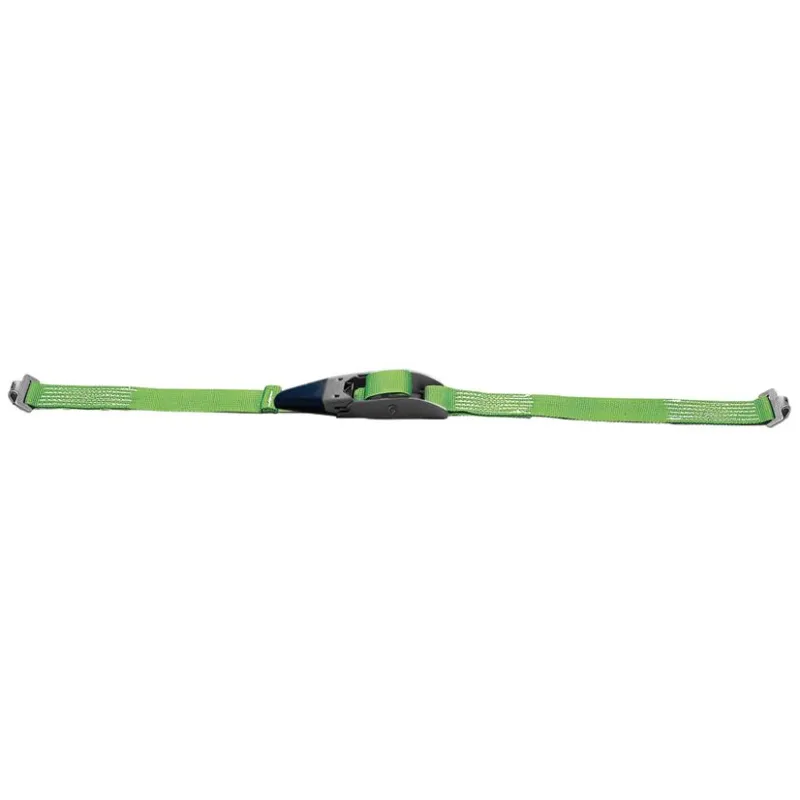

OVERCENTER BUCKLE WITH LONG HANDLE FA - COVERING LC 1600 daN
Catégorie : Webbing straps
These lashing systems with overcenter buckle with long handle are intended for interior lashing with a 45 mm wide webbing. They have a covering LC of 1 600 daN – 3 T (breaking strength of the webbing only 3 T or 3000 daN). With an overcenter buckle the webbing needs to be manually pre- tensioned and goes through the buckle’s handle. The webbing is tight once the handle has been tilted and locked on the vehicle frame.
About this product
Regular product: effective working length 3,50 m, green webbing. Additional meter weight: 80 g. Internal range ref: 4A. This range is available with: - Overcenter buckle (ref. 912, internal ref 4B), - A ratchet (ref. 916, internal ref 4C). Depending on your use, a wide range of protections is available: polyurethane or PVC sleeve, polyurethane protection keeper, etc.Features
| Product code | FA |
| Material | 100% high tenacity multifilament polyester webbing, steel ratchet with painted handle |
| Standard | EN 12195-2 |
| Ends / Terminations | Several possibilities |
| Useful length (m) | 3,5 |
| Strap width (mm) | 45 |
| LC en direct (daN) | 800 |
| Double load capacity (daN) | 1600 |
| Breakage of the strap only (T) | 3 |
| Length of short section (m) | 1 |
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
