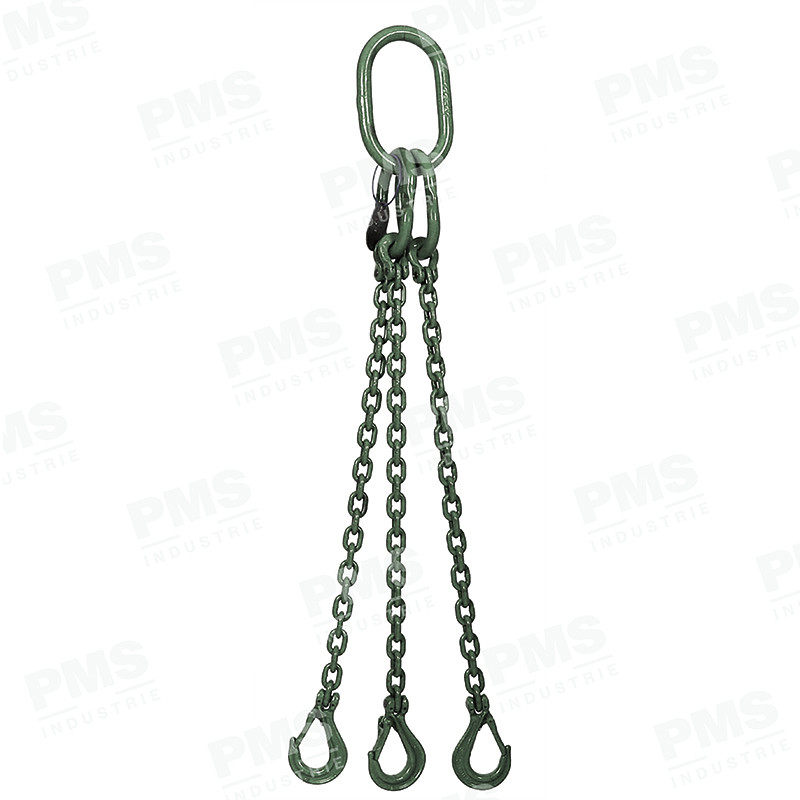

3 LEGS STAINLESS STEEL CHAIN SLING - ECH301i
Catégorie : Stainless steel slings
Our multi-leg 3-legs stainless steel chain slings are manufactured in France with self-locking or latch hooks at the ends. We can custom manufacture these slings to the nearest centimetre.
About this product
Please note that the calculation of the WLL of the sling will be different depending on the number of legs and the lifting angle. For maximum versatility we can add shortening clutches to shorten the length of the legs (optional). Contact us for more information and capacities or for any project study.
Features
| Product code | ECH301i |
| Material | Stainless steel |
| Ends / Terminations | Hook with latch |
| Coefficient d'utilisation | 1:4 |
| Température d'utilisation | From - 40 °C up to + 200 °C |
| Informations importantes | Informations importantes |
| Référence Produits cross selling | ECH200,ECH300G1,ECH300,ECH400 |
| Référence Configuration produits similaires | ECH101i,ECH201i,ECH401i |
| Nombre de brin(s) | 3 |
| CMU selon l'angle de 46 à 60° (T) | 1 to 4 |
| Grade | 50 |
| Diamètre d'un brin mini (mm) | 6 |
| Diamètre d'un brin maxi (mm) | 13 |
| CMU selon l'angle de 0 à 45° (T) | 1,47 to 5,70 |
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
