Catégorie : Polyurethane edges protections

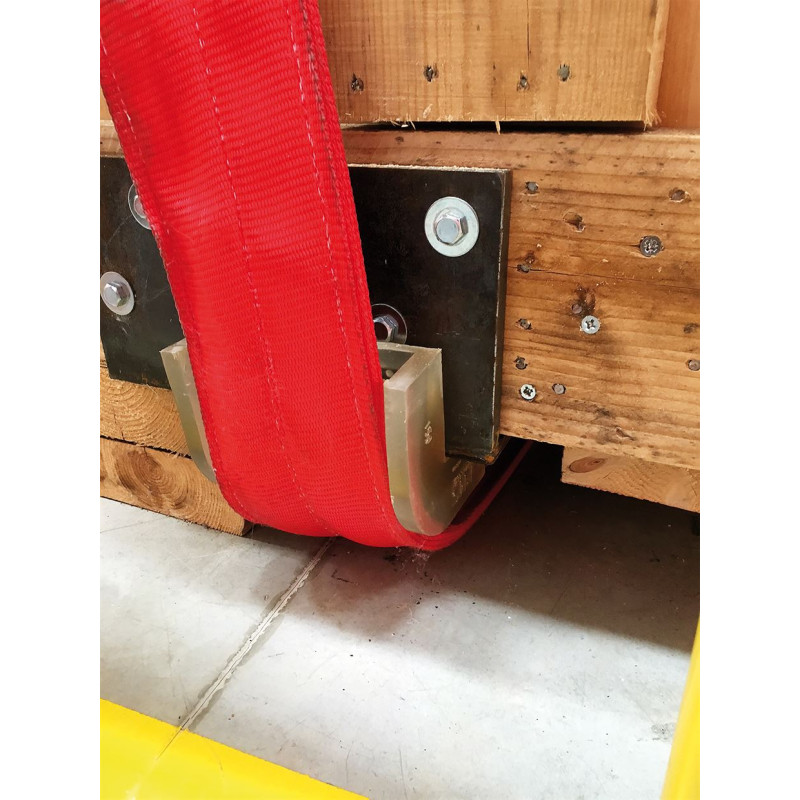

Polyurethane corners must be used in pairs to secure operations with highly edged loads such as coils. They are designed to protect wire ropes cable, chains (up to 40 mm diameter), lashing systems or flat webbing slings (from a 65 mm width).
About this product
For flat webbing slings: with upper spline (ref. CPUF), without the spline (ref. CPU). Design for roundslings and wire ropes: ref CPUC 50. To fit a specific angle, we can mold bespoke corners. Contact us for more information or for any project study. Consult us for more information and capacities or for any project study.Features
| Product code | CPUF |
| Material | Polyurethane |
| Important information | Informations importantes |
| Référence Produits cross selling | FP1234,CPUAFA,CPUX,DF,PVC,FT12,FTPE,FTCUIR,FGR |
| Minimum webbing width (mm) | 70 |
| Maximum webbing width (mm) | 330 |
| Unit weight (kg) | From 0,95 up to 2,80 |
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
