CONCRETE CULVERTS AND MANHOLE CLAMP - AALBTC
Catégorie : Clamps

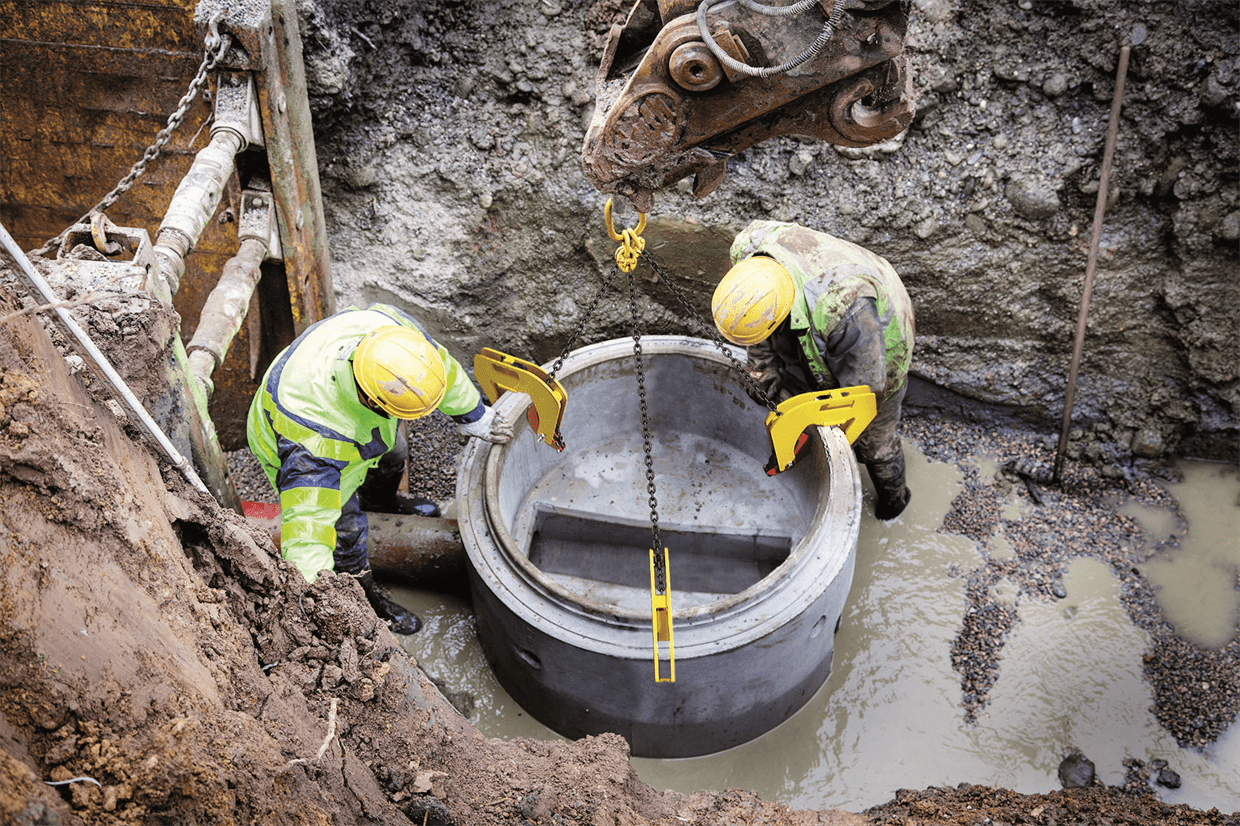

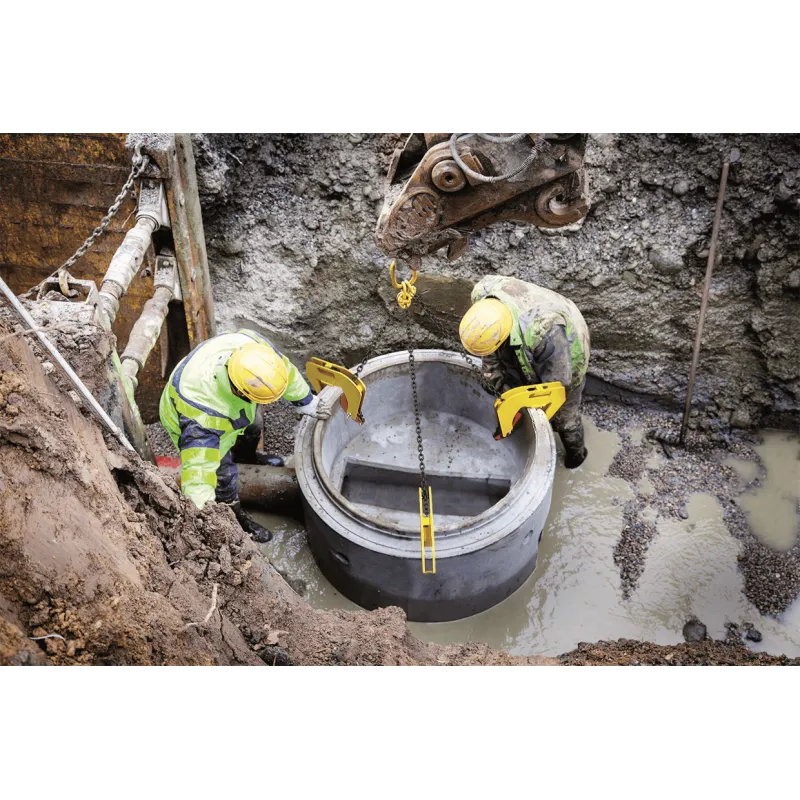

This clamp is made for lifting concrete culverts and manholes. It is composed of a 3 legs grade 80 chain sling (compliant with EN 918-4 standard) and of 3 mechanically welded steel self-closing lifting clamps.
Description
Features
Download
Description
About this product
Capacities from 1 500 to 3 000 kg. Internal diameter of the pipe: from 0,4 up to 2,2 m. In this type of chain sling assembly, the mechanically assembled linking components have a Working Load Limit higher or equivalent (never lower) than that of the chain to which they are connected.Features
Features
| Product code | AALBTC |
| Informations importantes | Informations importantes |
| Configuration | 3 legs chain sling, 3 clamps at each ending |
| Grade | 80 |
| CMU (T) | 1,5 or 3 |
| Sections 0 - Titre section 0 | Capacity (WLL): 1,5 T. |
| Sections 0 - Terminaison 0 - Critère 0 | Ref : |
| Sections 0 - Terminaison 0 - Donnée 0 | AALBTC 15 |
| Sections 1 - Titre section 1 | Capacity (WLL): 3 T. |
| Sections 0 - Terminaison 0 - Critère 1 | Chain length (m) |
| Sections 0 - Terminaison 0 - Donnée 1 | 1,5 |
| Sections 0 - Terminaison 1 - Critère 0 | Opening (mm) |
| Sections 0 - Terminaison 1 - Donnée 0 | from 40 up to 120 |
| Sections 0 - Terminaison 1 - Critère 1 | Weight (kg) |
| Sections 0 - Terminaison 1 - Donnée 1 | 26 |
| Sections 1 - Terminaison 0 - Critère 0 | Ref : |
| Sections 1 - Terminaison 0 - Donnée 0 | AALBTC 30 |
| Sections 1 - Terminaison 0 - Critère 1 | Chain length (m) |
| Sections 1 - Terminaison 0 - Donnée 1 | 2 |
| Sections 1 - Terminaison 1 - Critère 0 | Opening (mm) |
| Sections 1 - Terminaison 1 - Donnée 0 | from 100 up to 140 |
Download
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
