75 MM LASHING SYSTEM FOR HEAVY EQUIPMENT TRANSPORTERS – LC 5 000 daN
Catégorie : 75 mm webbing heavy duty lashing
Designed to secure heavy equipment during transport, the PMS Industrie 75 mm lashing system combines high-tenacity polyester webbing with a safety-release ratchet tensioner. It offers an LC of 5 000 daN in direct configuration and 10 000 daN in double configuration. It is a robust, reliable and customisable solution for heavy equipment transporters.
About this product
The PMS Industrie 75 mm lashing system is specially designed to secure construction machinery, heavy vehicles and industrial equipment transported on heavy equipment transporters.
It consists of high-tenacity multifilament polyester webbing and a steel ratchet tensioner.
It offers an LC of 5,000 daN in direct configuration and 10,000 daN in double configuration, with an STF of 500 daN.

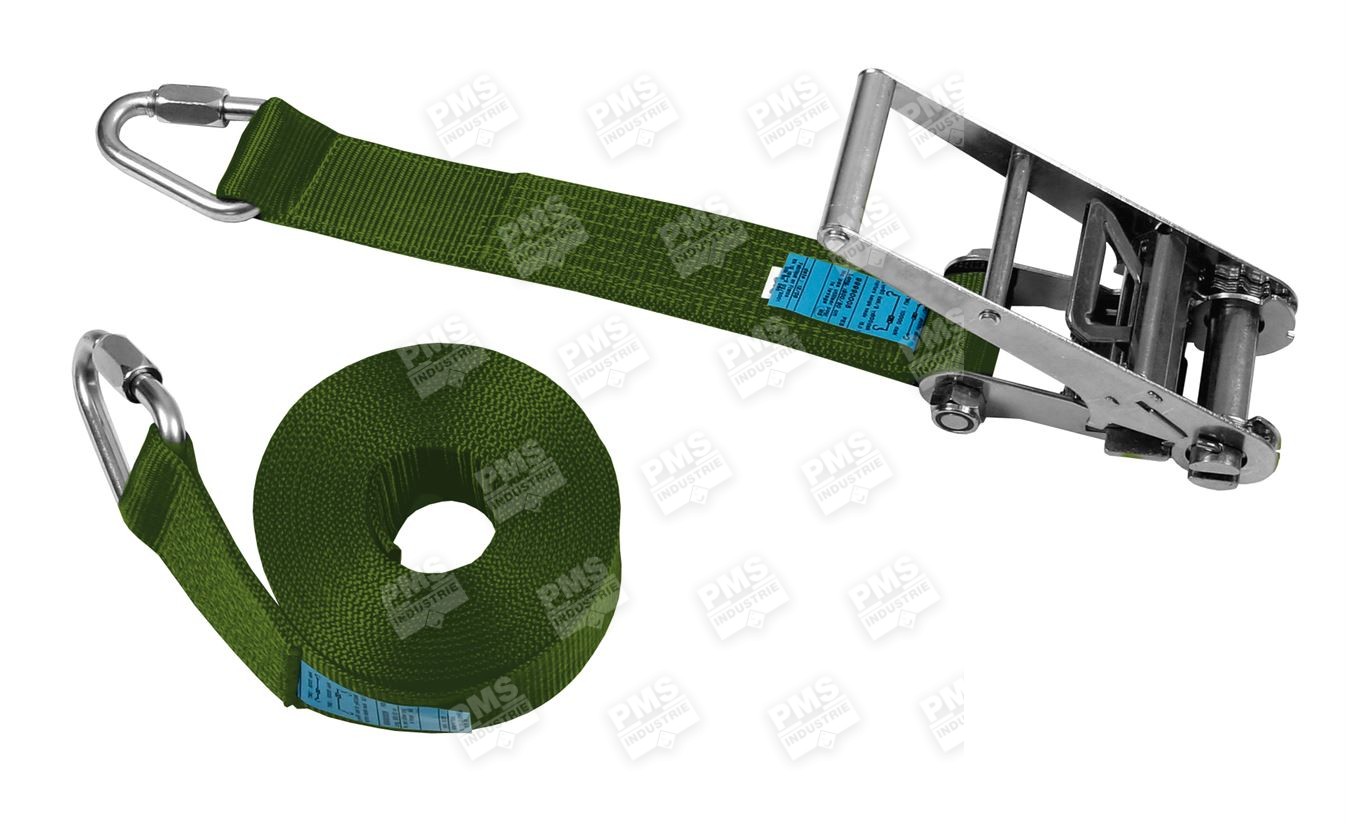

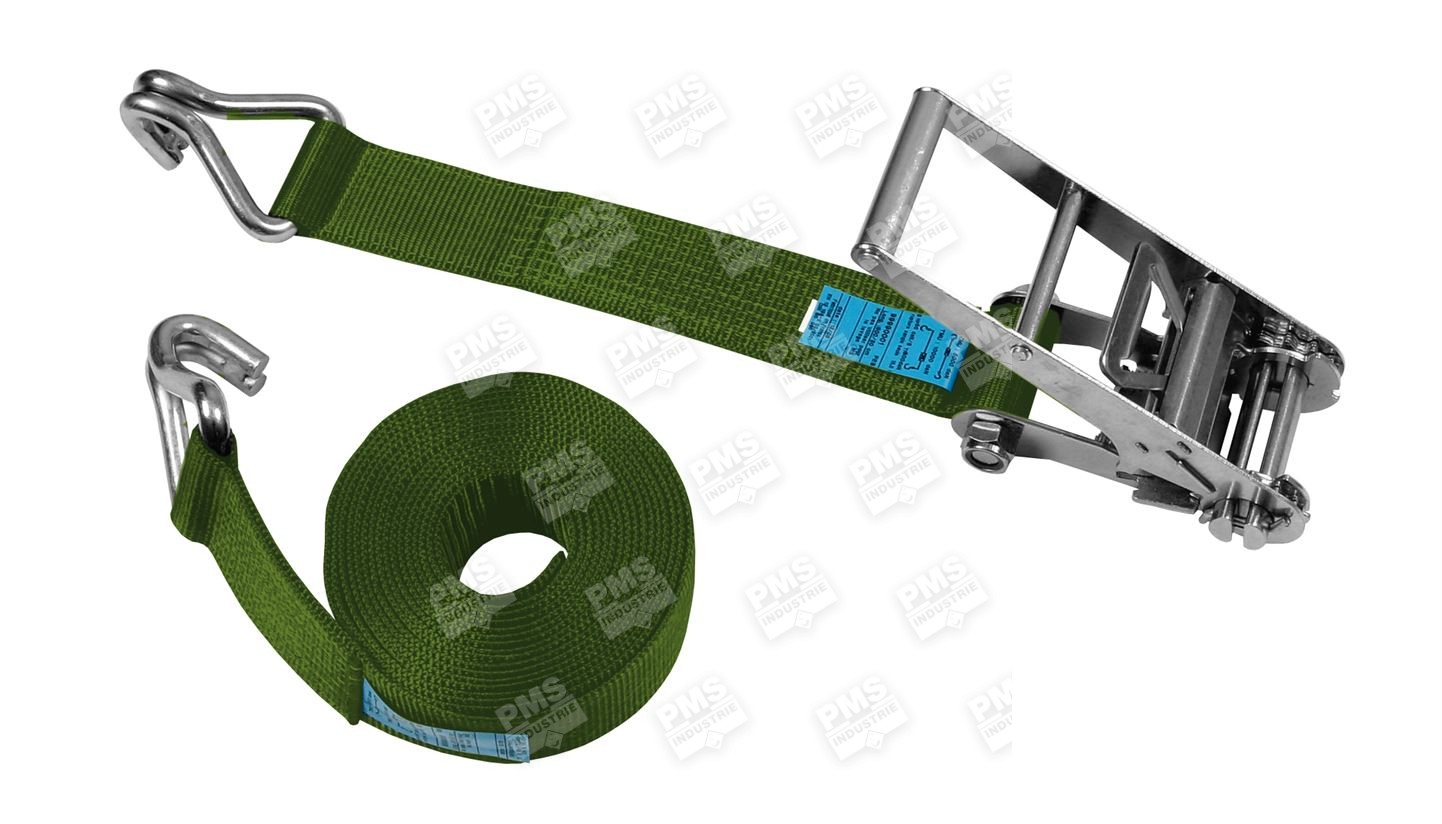

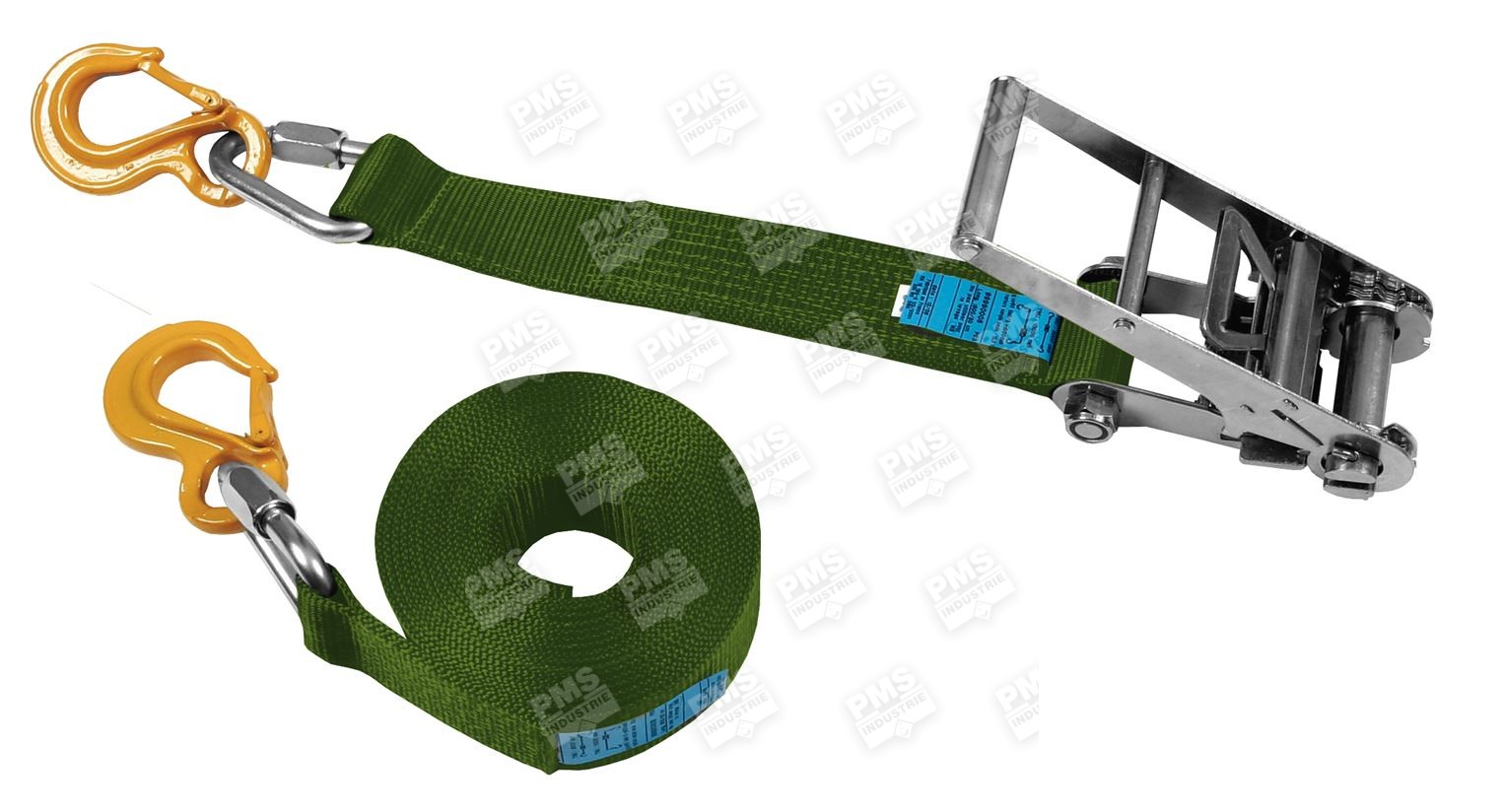

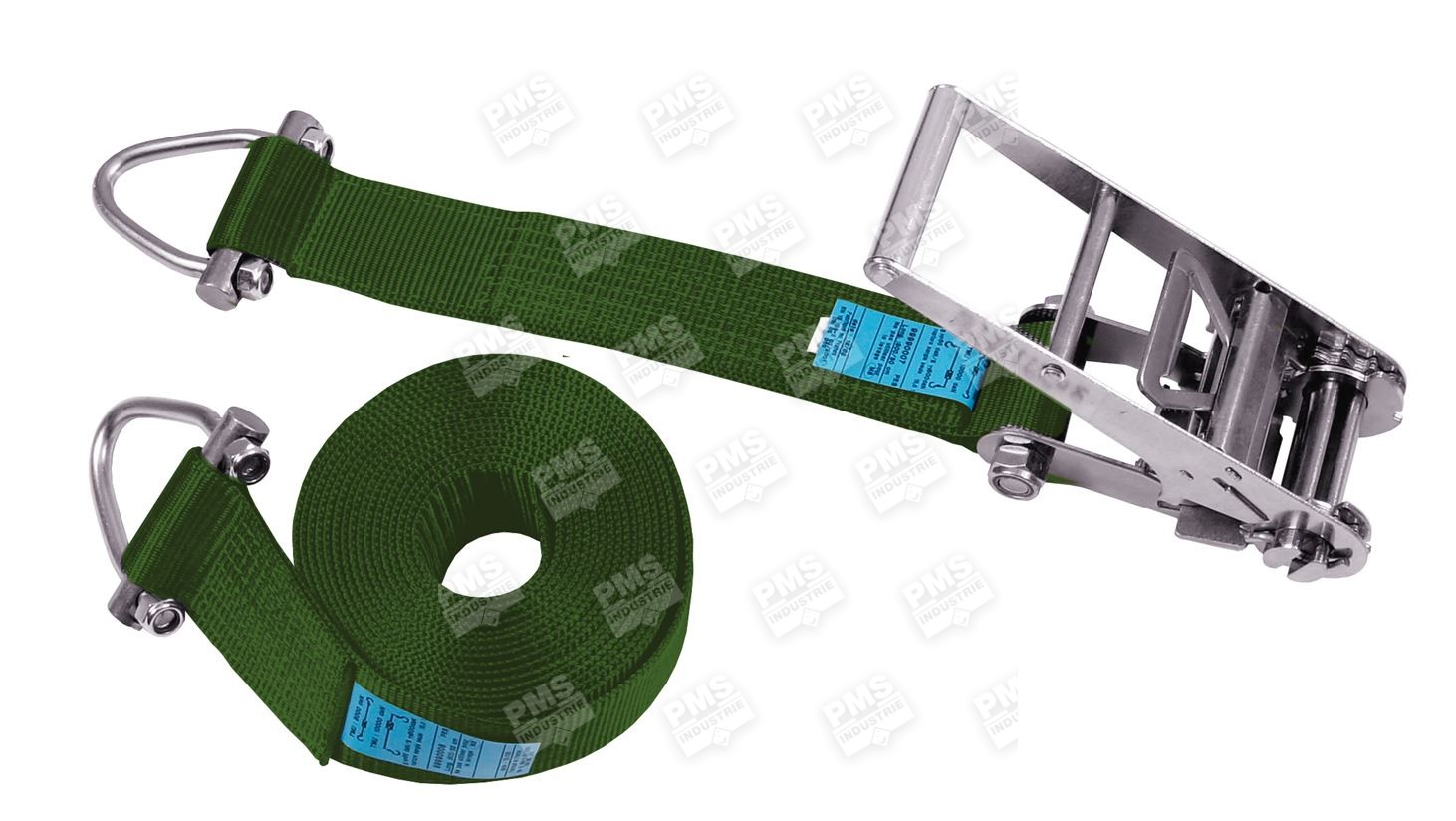

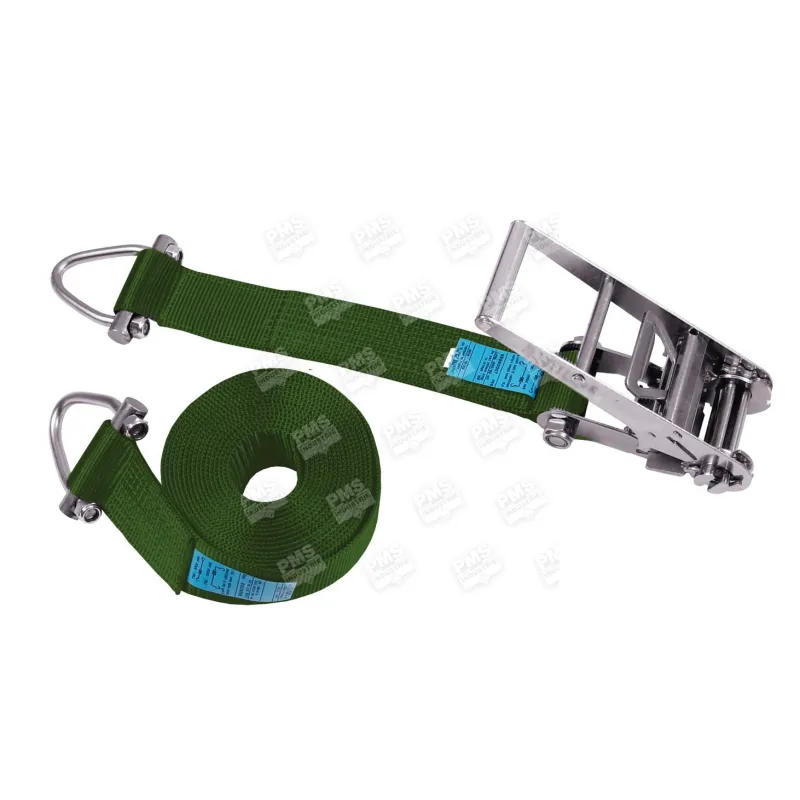

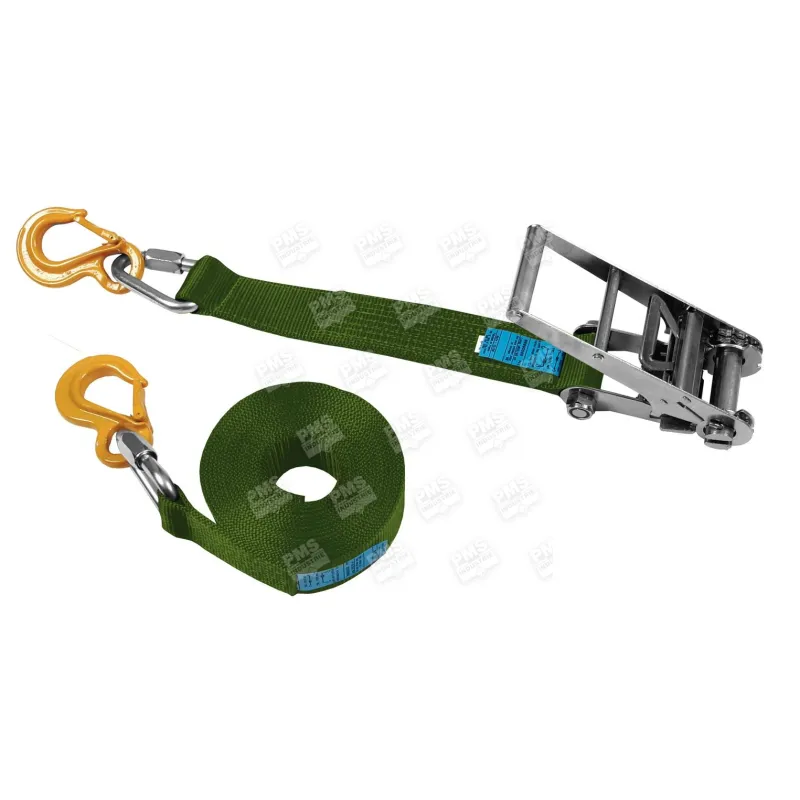

The standard version has a usable length of 8 metres and a short section measuring 0.50 metres. Custom manufacturing allows the length, colour and marking of the webbing to be adapted, as well as the end fittings, which may be identical or different depending on the vehicle’s anchorage points.
Various protective solutions can also be added, including PVC or polyurethane sleeves and polyurethane wear pads, to protect the webbing against friction and abrasive areas.
Compliant with the EN 12195-2 standard, the 75 mm lashing system ensures complete traceability through its identification label.
Features
| Product code | 975 5.00 |
| Material | 100% high tenacity multifilament polyester webbing, steel ratchet |
| Standard | EN 12195-2 |
| Ends / Terminations | Similar or mixed, many possibilites available |
| Useful length (m) | 8 |
| Strap width (mm) | 75 |
| LC en direct (daN) | 5000 |
| Double load capacity (daN) | 10000 |
| STF (daN) | 500 |
| Breakage of the strap only (T) | 15 |
| Length of short section (m) | 0,5 |
| Température d'utilisation | From - 40°C up to + 100°C |
| Options | NATO green painted steel ratchet |
| Déclinaisons | 7 000 daN covering LC (ref 975). Progressive release ratchet |
Les + de la gamme
- Suitable for heavy equipment transporters: designed to secure construction machinery, heavy vehicles and industrial equipment.
- 75 mm webbing: a width suitable for heavy-duty lashing operations.
- Custom manufacturing: customisable length, colour, marking and end fittings.

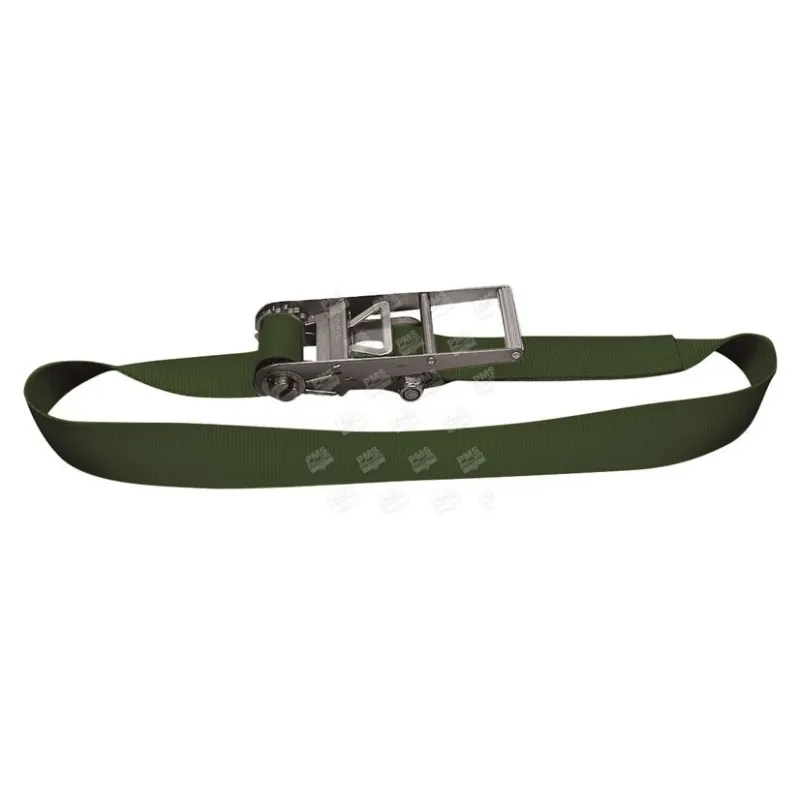

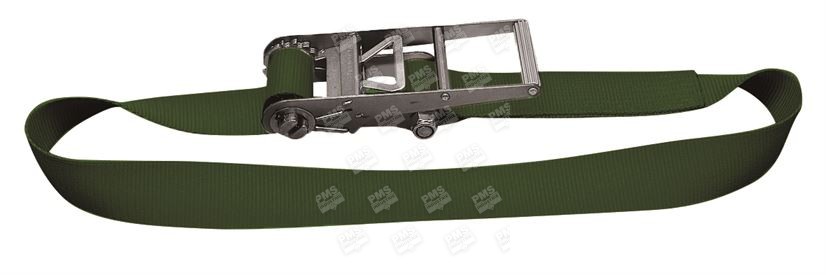

- Multiple configurations: two-part or endless lashing system with various end fittings.
- Protective solutions available: PVC or polyurethane sleeves and wear pads, depending on the application.
- Compliant with EN 12195-2.
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
