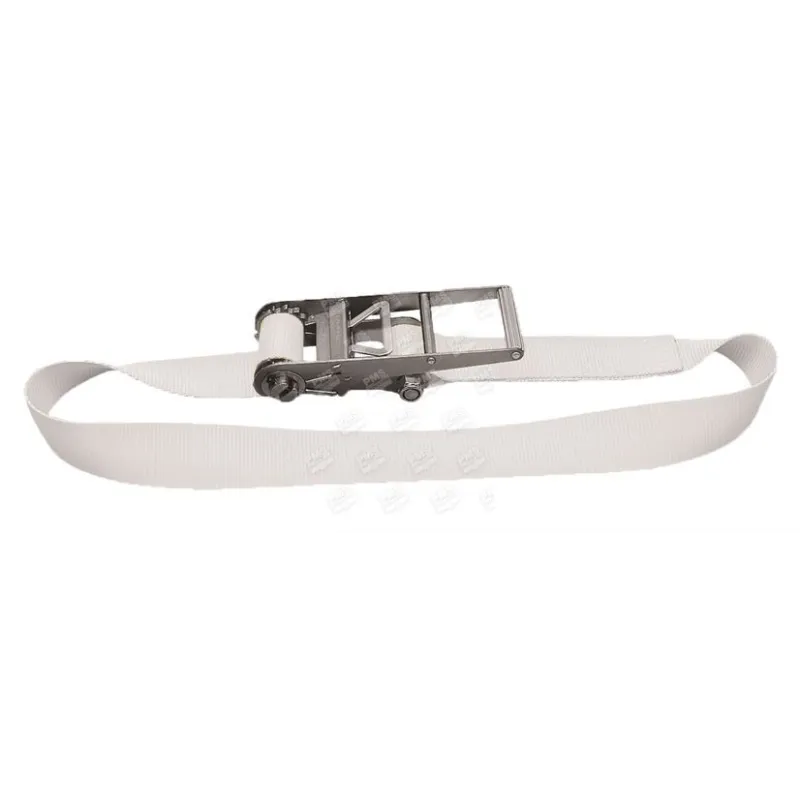

RATCHET 975 - COVERING LC 7 000 daN
Catégorie : 75 mm webbing heavy duty lashing
Designed to secure heavy equipment during transport, the PMS Industrie 75 mm lashing system combines high-tenacity polyester webbing with a safety-release ratchet tensioner. It offers an LC of 5 000 daN in direct configuration and 10 000 daN in double configuration. It is a robust, reliable and customisable solution for heavy equipment transporters.
About this product
Regular product: effective working length 8 m, white webbing. Additional meter weight: 212 g. Internal range ref: 7A. This range is available with: - Covering LC 10 000 daN (breaking strength of the webbing only 15 T): ref. 975 5.00 (internal ref: 77A). - A progressive release ratchet: ref. 975 DP (internal ref: 7B). - A NATO green painted ratchet: ref. 975 VO (internal ref: 7W). Customized manufacturing possible: mm specific length, marking and color of the webbing, identical or different fittings… Depending on your use, a wide range of protections is available: polyurethane or PVC sleeve, polyurethane protection keeper, etc.
Features
| Product code | 975 |
| Material | 100% high tenacity multifilament polyester webbing, steel ratchet |
| Standard | EN 12195-2 |

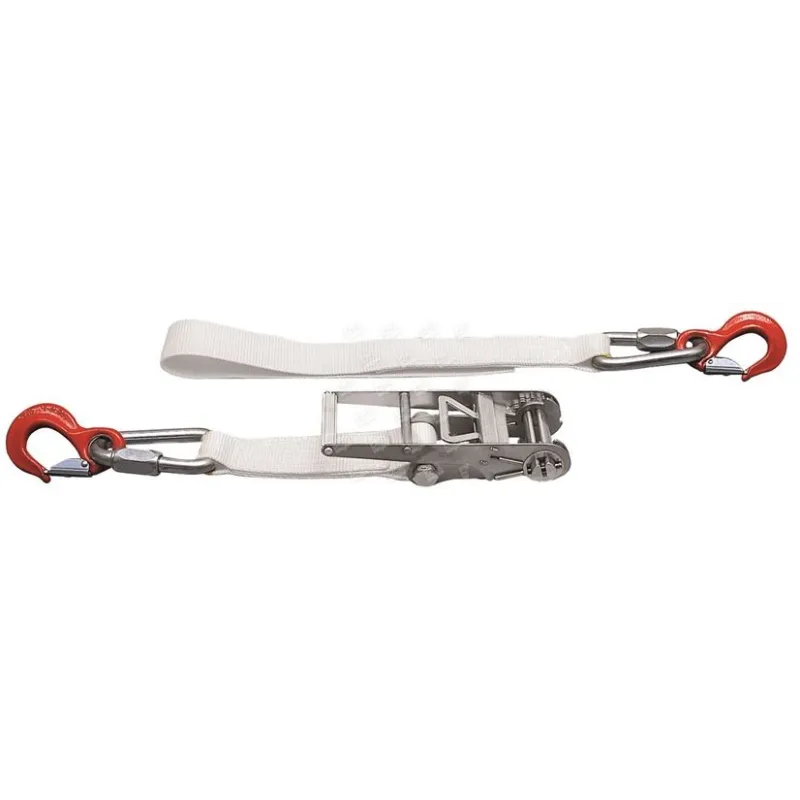

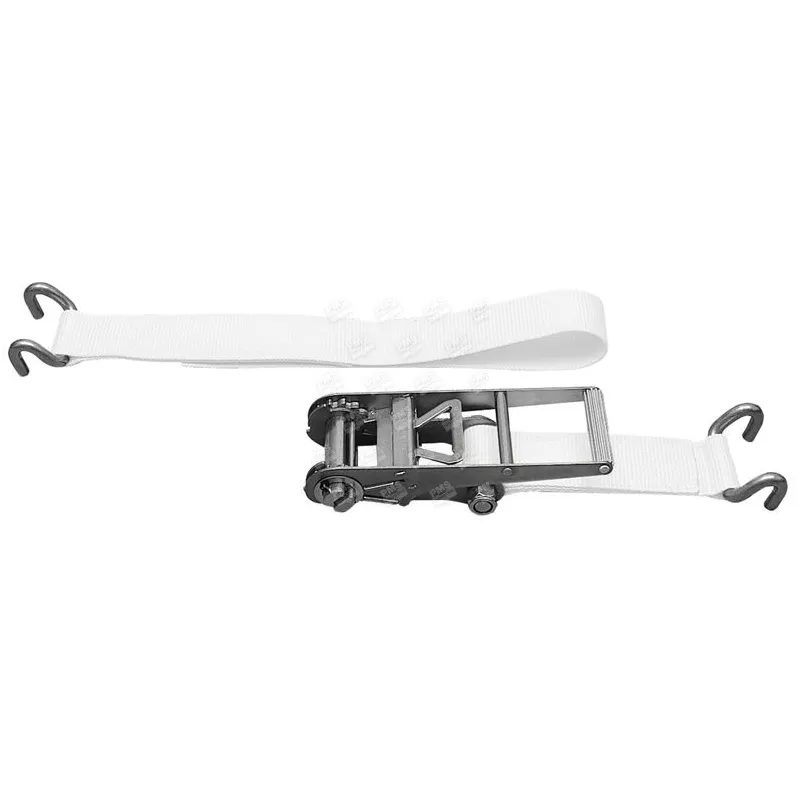

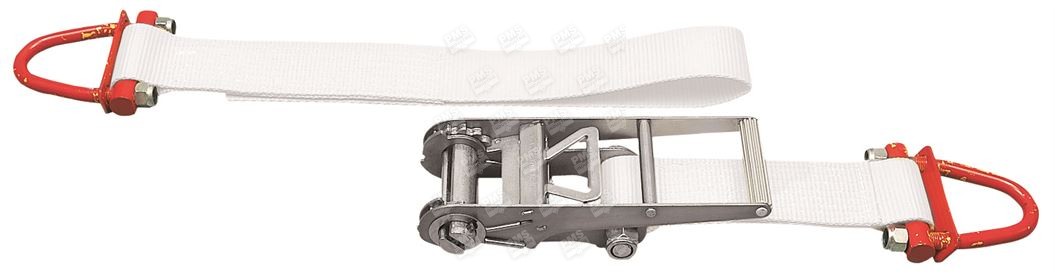

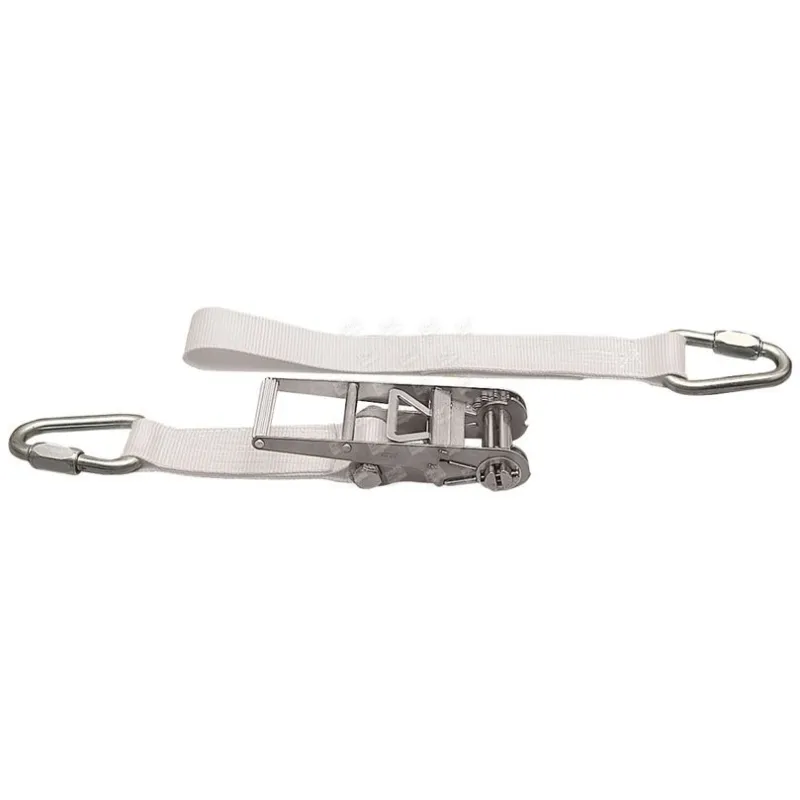

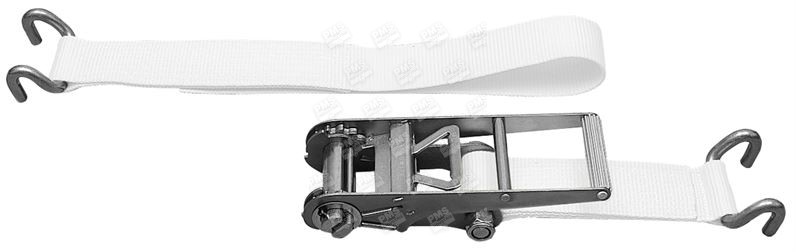

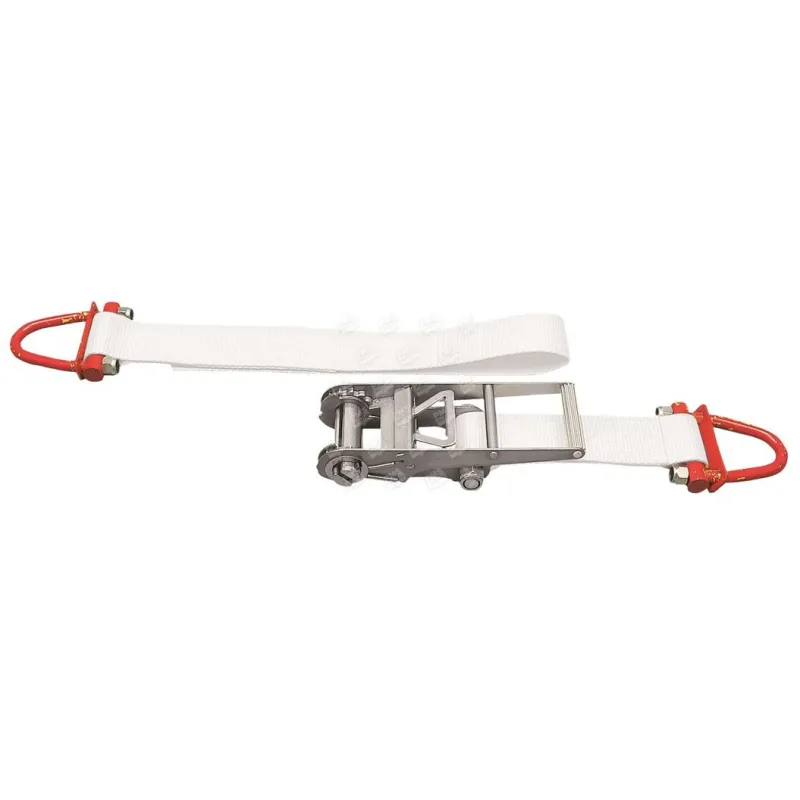

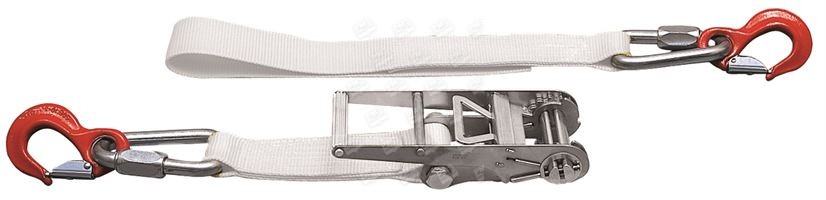

| Ends / Terminations | Similar or mixed, many possibilites available |
| Useful length (m) | 8 |
| Strap width (mm) | 75 |
| LC en direct (daN) | 3500 |
| Double load capacity (daN) | 7000 |
| STF (daN) | 350 |
| Breakage of the strap only (T) | 11 |
| Length of short section (m) | 0,5 |
| Température d'utilisation | From - 40°C up to + 100°C |
| Référence Produits cross selling | 975 5.00,ACTAC,CHTAC,POWERTRUCK |
| CMU (kg) | 100 |
| Options | NATO green painted steel ratchet |
| Déclinaisons | 10 000 daN covering LC (ref 975 5.00). Progressive release ratchet |
Les + de la gamme
- Suitable for heavy equipment transporters: designed to secure construction machinery, heavy vehicles and industrial equipment.
- 75 mm webbing: a width suitable for heavy-duty lashing operations.
- Custom manufacturing: customisable length, colour, marking and end fittings.
- Multiple configurations: two-part or endless lashing system with various end fittings.
- Protective solutions available: PVC or polyurethane sleeves and wear pads, depending on the application.
- Compliant with EN 12195-2.
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
