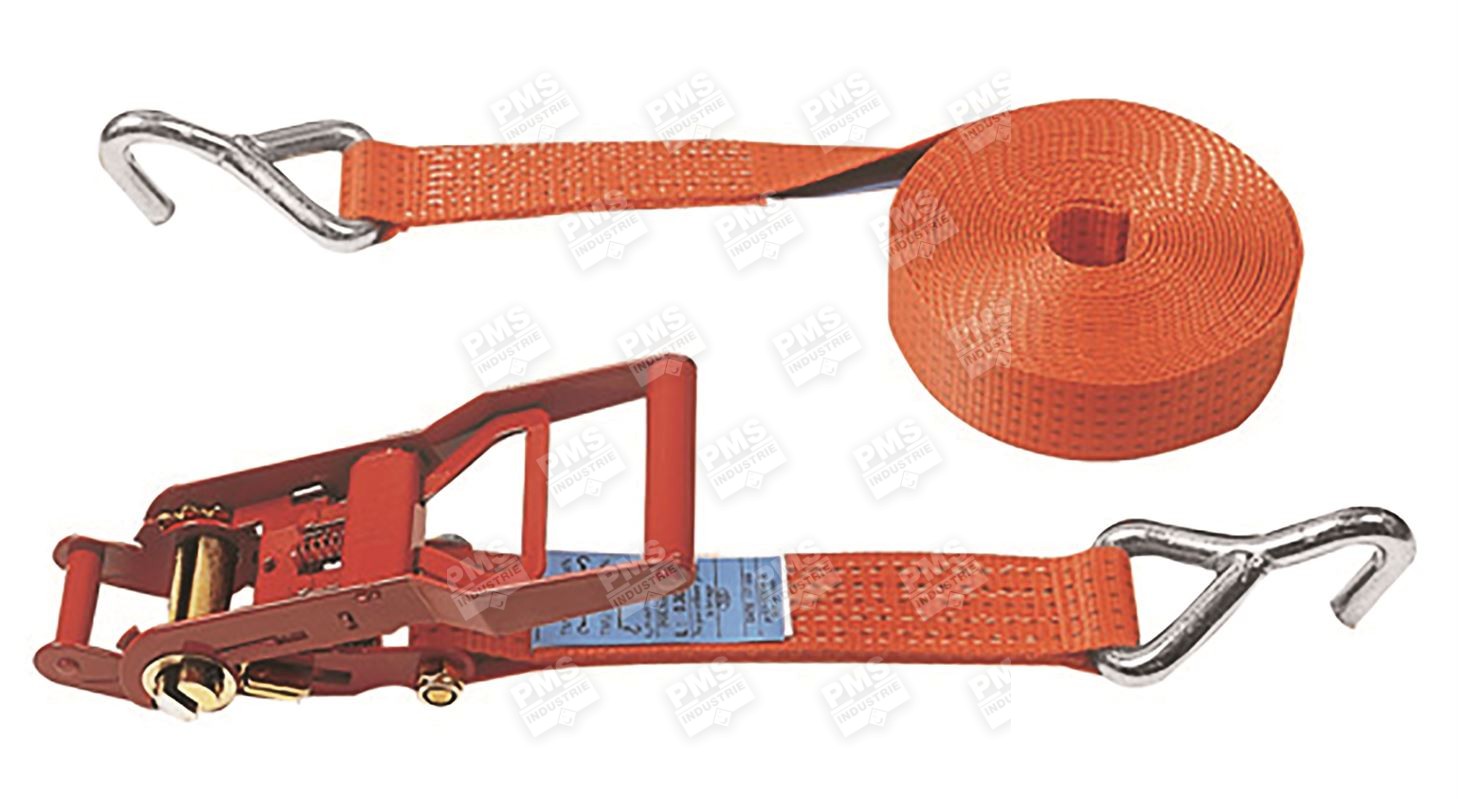

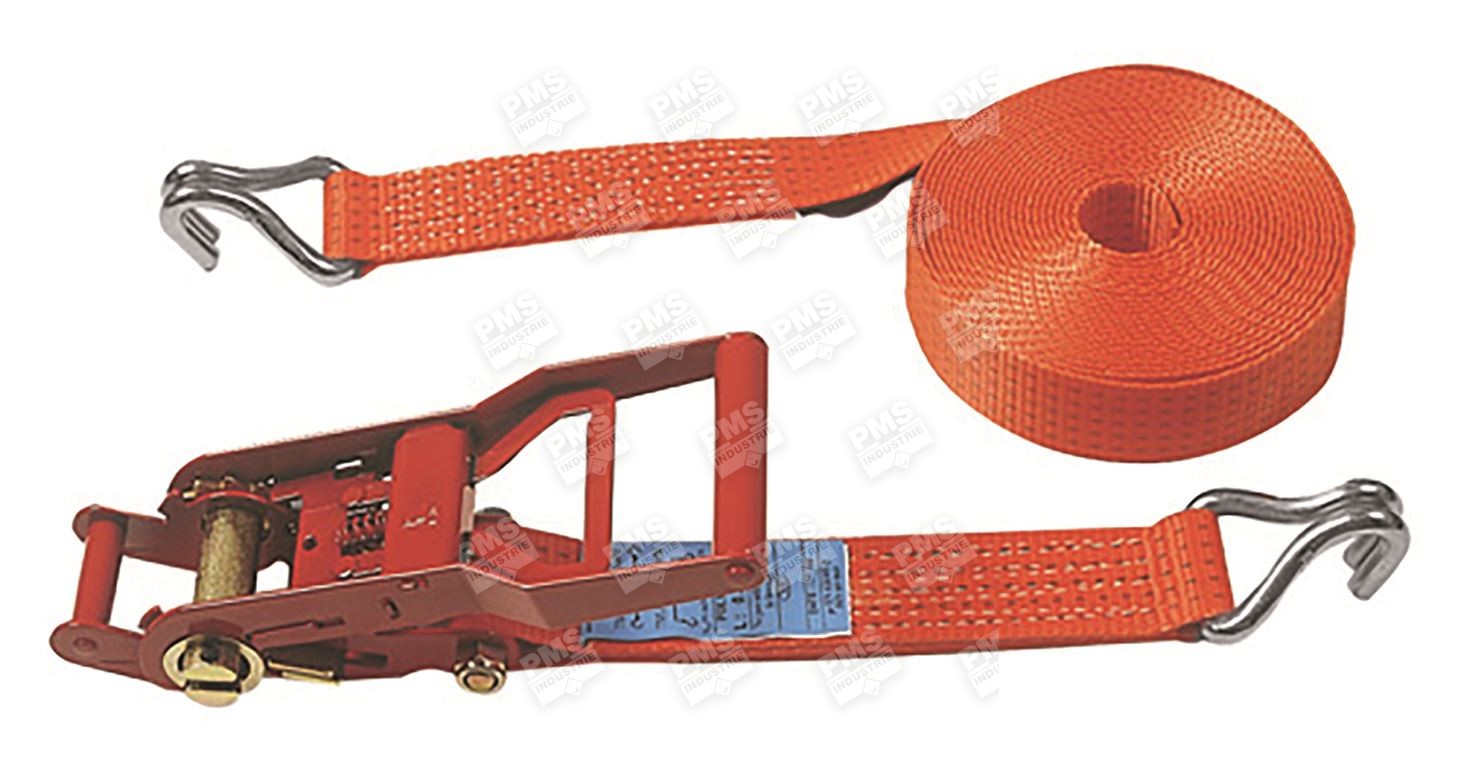

MULTIPLIED TENSIONING ERGO RATCHET 811ALL - COVERING LC 5000 daN
Catégorie : 50 mm webbing heavy truck lashing
The multiplied tensioning ergonomic ratchet is composed of a gear system ensuring a multiplied tensioning force, and of a handle tensioning the webbing by wrapping it around its axis. These heavy truck lashing systems with 50 mm wide webbing have a covering LC of 5 000 daN – 7,5 T (breaking strength of the webbing only 7,5 T or 7500 daN) and a STF of 400 daN. They are manufactured according to standard EN 12 195-2.
About this product
Regular product: effective working length 9 m, orange webbing. Additional meter weight: 130 g. Internal range ref: 6H. 100 % high tenacity polyester fiber webbing and sewing thread: high resistance to friction, abrasion, UV and chemical products. Customized manufacturing possible: mm specific length, marking and color of the webbing, identical or different fittings… This range is available with: - Covering LC 4 000 daN (breaking strength of the webbing only 6 T), blue webbing: ref. 811 ALL (internal ref: 5H). - MAGMA® material for extreme resistance up to 300°C. Depending on your use, a wide range of protections is available: polyurethane or PVC sleeve, polyurethane protection keeper, etc.Features
| Product code | 811ALL2.5 |
| Material | 100% high tenacity multifilament polyester webbing, steel ratchet |
| Standard | EN 12195-2 |
| Ends / Terminations | Similar or mixed, many possibilites available |
| Useful length (m) | 9 |
| Strap width (mm) | 50 |
| LC en direct (daN) | 2500 |
| Double load capacity (daN) | 5000 |
| STF (daN) | 400 |
| Breakage of the strap only (T) | 7,5 |
| Length of short section (m) | 0,3 |
| Température d'utilisation | From - 40°C up to + 100°C |
| Informations importantes | Informations importantes |
| Référence Produits cross selling | POWERTRUCK,811DP2.50,TENSO,SYA-RETRAC50,6EG,811PPA,811PPNOIR,811IN |
| Sections 0 - Titre section 0 | 2 parts configuration |
| Sections 0 - Terminaison 0 - Image terminaison 0 | https://pms-ind.com/img/p/3/7/3/6/3736.jpg |
| Sections 0 - Terminaison 0 - Critère 0 | Ref. (internal ref.) |
| Sections 0 - Terminaison 0 - Donnée 0 | 811 ALL 2.5/1065 (6H11) |
| Déclinaisons | 4 000 daN covering LC. Made with MAGMA range for high-temperature resistance |

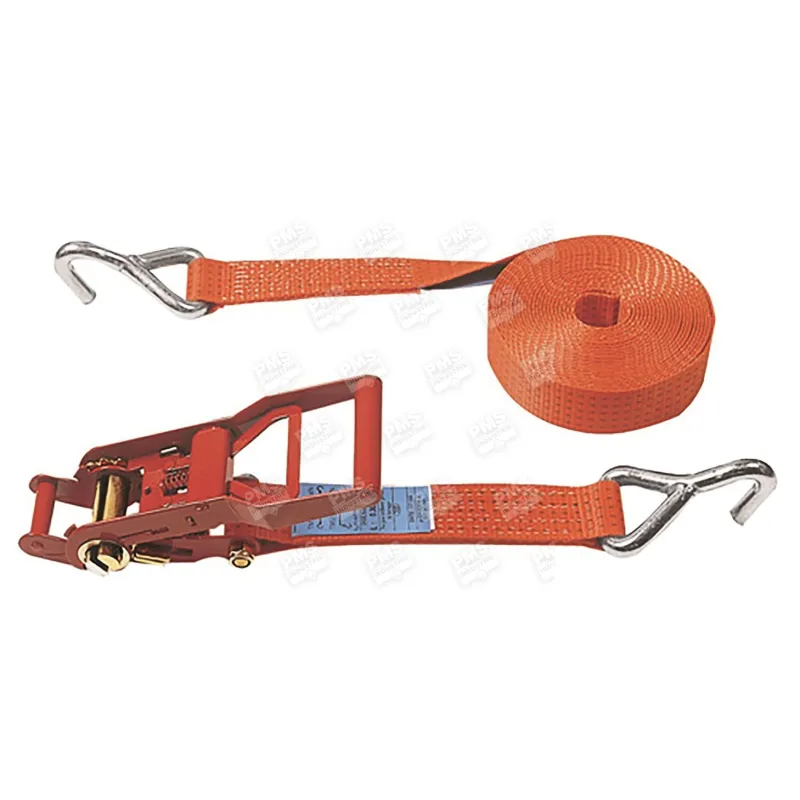

| Sections 0 - Terminaison 2 - Image terminaison 2 | https://pms-ind.com/img/p/3/7/3/8/3738.jpg |
| Sections 0 - Terminaison 2 - Critère 0 | Ref. (internal ref.) |
| Sections 0 - Terminaison 2 - Donnée 0 | 811 ALL 2.5/1014 |
| Sections 0 - erminaison 2 - Critère 1 | Weight / 9 m |
| Sections 0 - Terminaison 2 - Donnée 1 | 3 640 g |
| Sections 1 - Titre section 1 | Belt configuration (1 part) |
| Sections 0 - Terminaison 0 - Critère 1 | Weight / 9 m |
| Sections 0 - Terminaison 0 - Donnée 1 | 3 130 g |

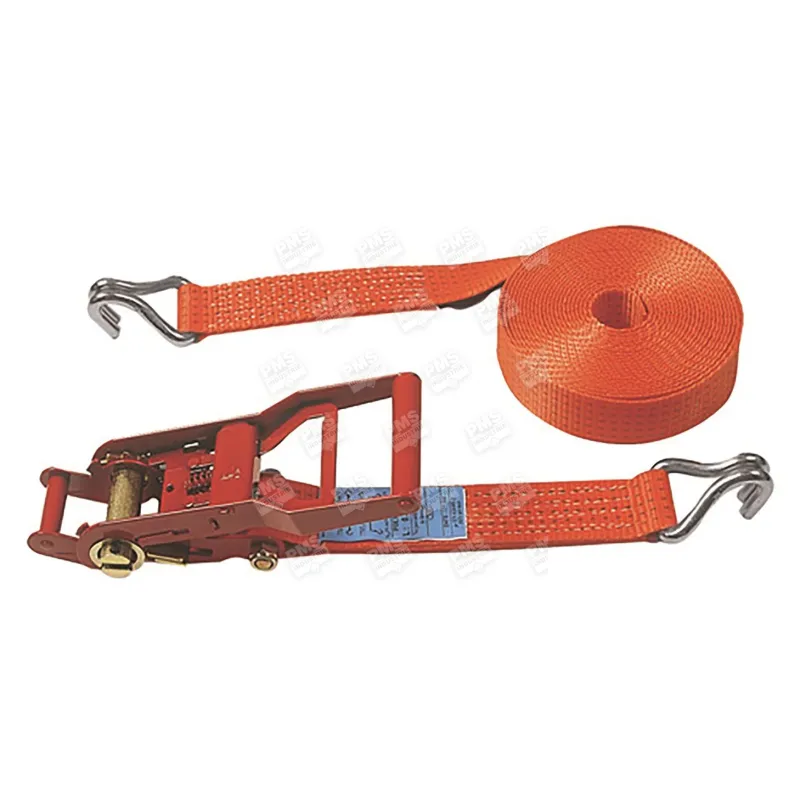

| Sections 0 - Terminaison 1 - Image terminaison 1 | https://pms-ind.com/img/p/3/7/3/7/3737.jpg |
| Sections 0 - Terminaison 1 - Critère 0 | Ref. (internal ref.) |
| Sections 0 - Terminaison 1 - Donnée 0 | 811 ALL 2.5/1006 (6H22) |
| Sections 0 - Terminaison 1 - Critère 1 | Weight / 9 m |
| Sections 0 - Terminaison 1 - Donnée 1 | 3 195 g |
| Sections 1 - Terminaison 0 - Image terminaison 0 | https://pms-ind.com/img/p/3/7/3/9/3739.jpg |
| Sections 1 - Terminaison 0 - Critère 0 | Ref. (internal ref.) |
| Sections 1 - Terminaison 0 - Donnée 0 | 811 ALL 2.5/1 (6H0) |
| Sections 1 - Terminaison 0 - Critère 1 | Weight / 9 m |
| Sections 1 - Terminaison 0 - Donnée 1 | 2 913 g |
Important information
Your safety depends on the correct use of the product. Please refer to the user manual supplied with the equipment.
We have several suppliers; the dimensions are provided for guidance only.
We are able to test all our products up to their maximum capacity by conducting fatigue and load
tests on our test benches.
